Y Coupler for verified automation integration and maintenance planning.

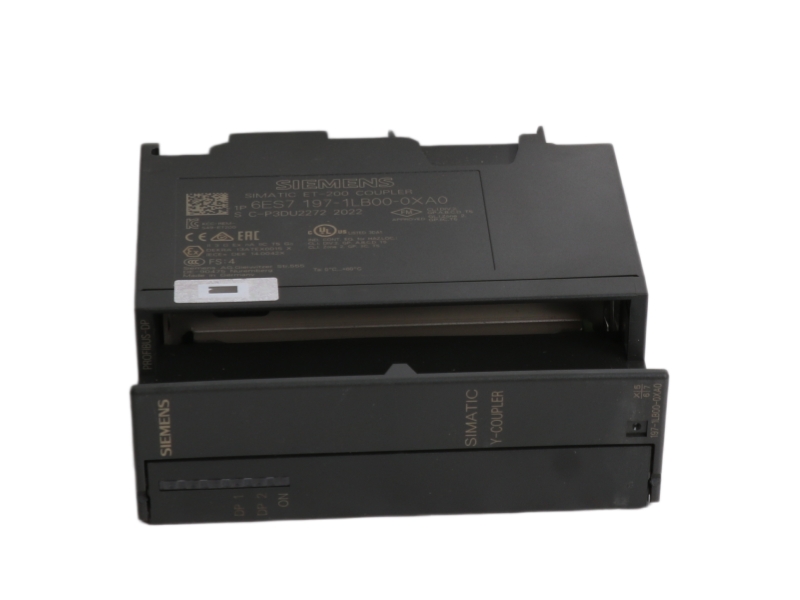

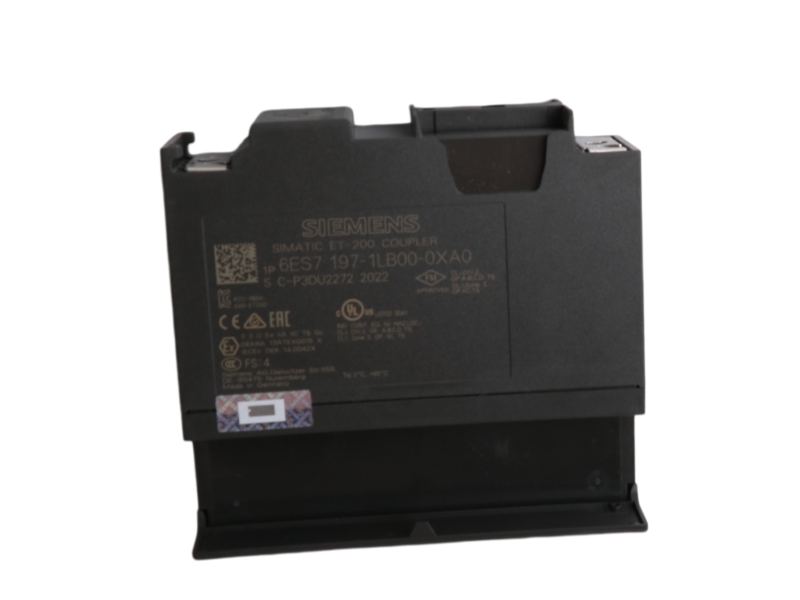

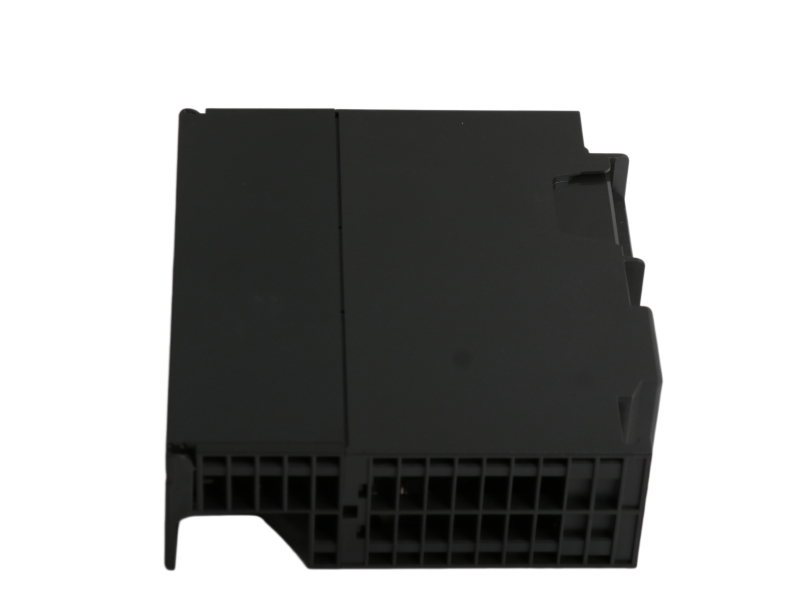

Siemens 6ES7197-1LB00-0XA0 is a SIMATIC S7 Y coupler used to establish a Y-Link for redundant controller architectures. It connects the lower-level PROFIBUS DP master system through the Y-Link structure and supports rates from 45.45 kbit/s to 12 Mbit/s. The module receives its supply through the bus module and provides diagnostics for internal and external PROFIBUS DP monitoring. It supports redundancy projects, system extensions and maintenance where the complete order number, topology, bus parameters, termination and connected DP station count are verified before installation.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7197-1LB00-0XA0 |
| Product Type | Y Coupler |
| Series | SIMATIC S7 |
| Product Type Designation | Y Coupler for Y-Link |
| Bus Protocol | PROFIBUS DP |
| Transmission Rate Range | 45.45 kbit/s to 12 Mbit/s |
| Power Supply | Via bus module |
| Current Consumption, Maximum | 300 mA |
| Power Loss, Typical | 1 W |
| Dimensions (W × H × D) | 40 × 125 × 130 mm |
| Weight, Approx. | 200 g |
| Product Condition | NEW |
| Country of Origin | GERMANY |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are stated in the written quotation. |
Confirm the complete suffix, Y-Link architecture, bus module, PROFIBUS rate, termination and station count. Share product-label photographs and engineering records during review.
What is 6ES7197-1LB00-0XA0? It is a Siemens SIMATIC S7 Y Coupler.
How should compatibility be checked? Match the complete suffix, installed configuration and engineering project.
What condition is supplied? The quoted condition is NEW with 1 year warranty.
Can label photos be provided? Product and label photo confirmation is available during order review.
Can it ship internationally? Worldwide shipping options are stated in the written quotation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
