BU type A1 push-in terminal base with auxiliary terminals and integrated temperature acquisition.

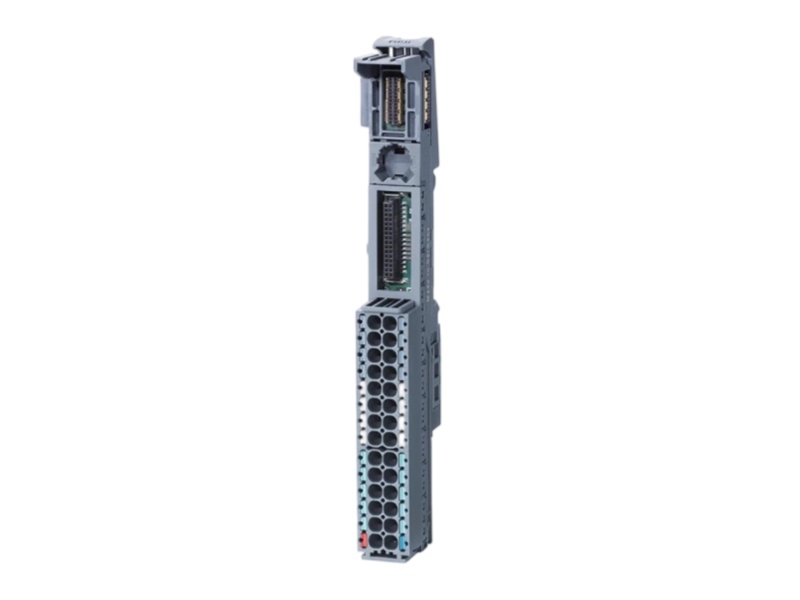

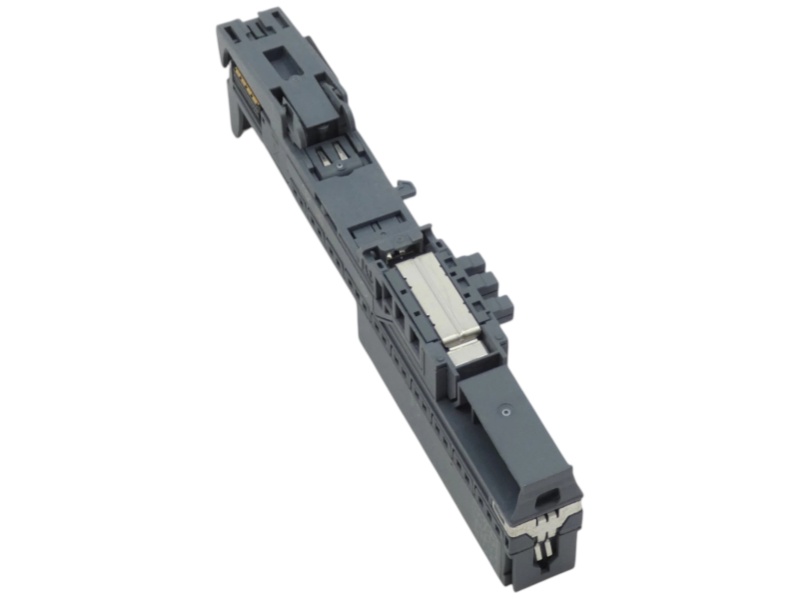

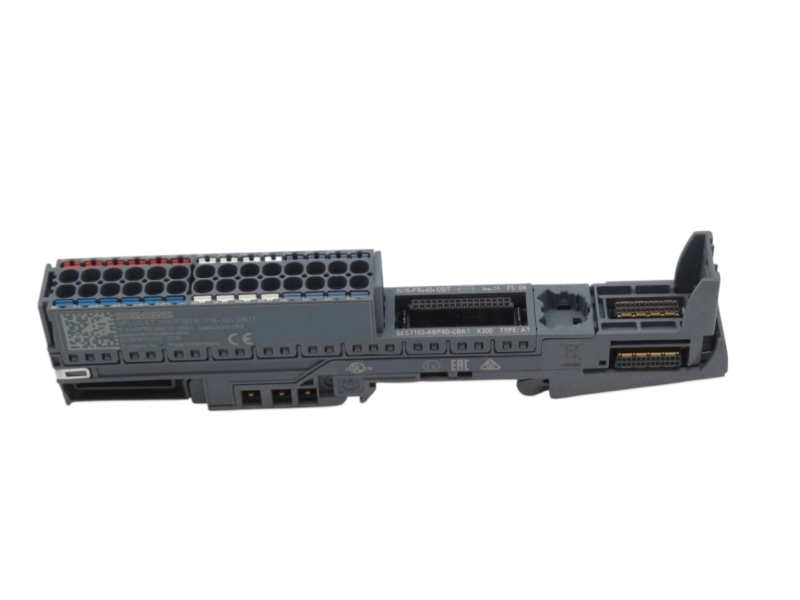

Siemens 6ES7193-6BP40-0BA1 is a SIMATIC ET 200SP BaseUnit BU15-P16+A0+12B/T for mounting and wiring compatible I/O modules. The A1 base uses push-in terminals, includes two groups of five add-on terminals, continues the potential group from the left and provides temperature acquisition for supported module applications.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7193-6BP40-0BA1 |
| Product Type | ET 200SP BaseUnit BU15-P16+A0+12B/T |
| Product Lifecycle | PM300: Active Product |
| BaseUnit Type | BU type A1 |
| Country of Origin | Germany |
| Parameter | Official Specification |
|---|---|
| Product designation | BU type A1 |
| BaseUnit configuration | BU15-P16+A0+12B/T |
| HW functional status | FS10 and higher |
| Terminal technology | Push-in terminals |
| Add-on terminals | 2 x 5 terminals |
| Potential group | Continued from the left |
| Temperature acquisition | Integrated |
| Rated supply voltage | 24 V DC |
| P1/P2 bus current | Maximum 10 A |
| Process terminal current | Maximum 2 A |
| Width x height | 15 x 141 mm |
| Operating temperature | -30 to +60 degrees C horizontal; -30 to +50 degrees C vertical |
The BaseUnit forms the mechanical and electrical connection layer for compatible ET 200SP I/O modules. It is appropriate where an A1 BaseUnit, left-bridged potential group, auxiliary terminals and temperature acquisition are required by the selected module documentation.
Confirm the selected I/O module requires BU type A1, the 15 mm width, left-bridged potential group, 2 x 5 add-on terminals and temperature acquisition. Check the 24 V DC power design and current limits before installation.
PM300: Active Product. Siemens currently lists this exact article number with that lifecycle status. Verify current supply and the selected I/O module BaseUnit requirement before ordering.
It is an ET 200SP BU15-P16+A0+12B/T BaseUnit of type A1.
The BaseUnit uses push-in terminals.
Yes. It includes two groups of five add-on terminals.
No. The potential group is continued from the BaseUnit on the left.
Yes. Siemens specifies integrated temperature acquisition for this exact configuration.
Confirm BU type A1, compatible I/O module, left-bridged potential group, auxiliary-terminal needs and current limits.
