Eight-channel 24 V DC Basic input module for SIMATIC ET 200SP distributed I/O stations.

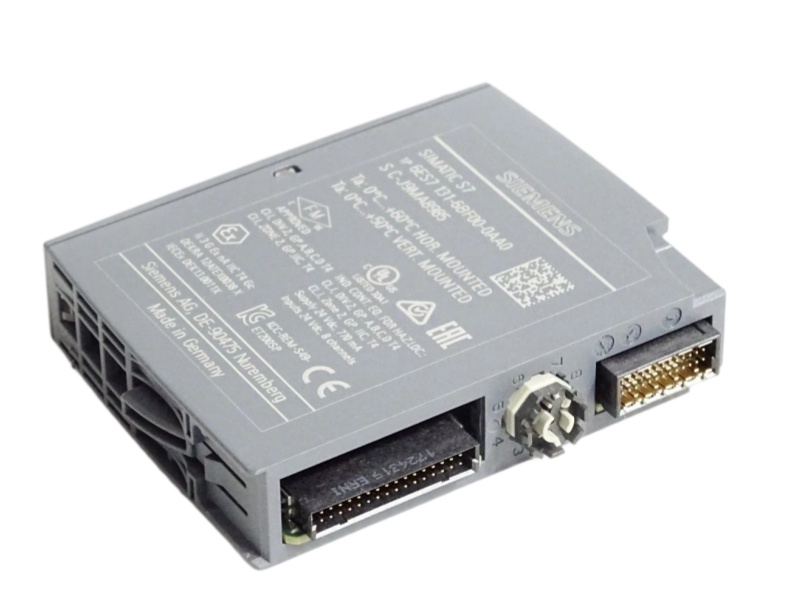

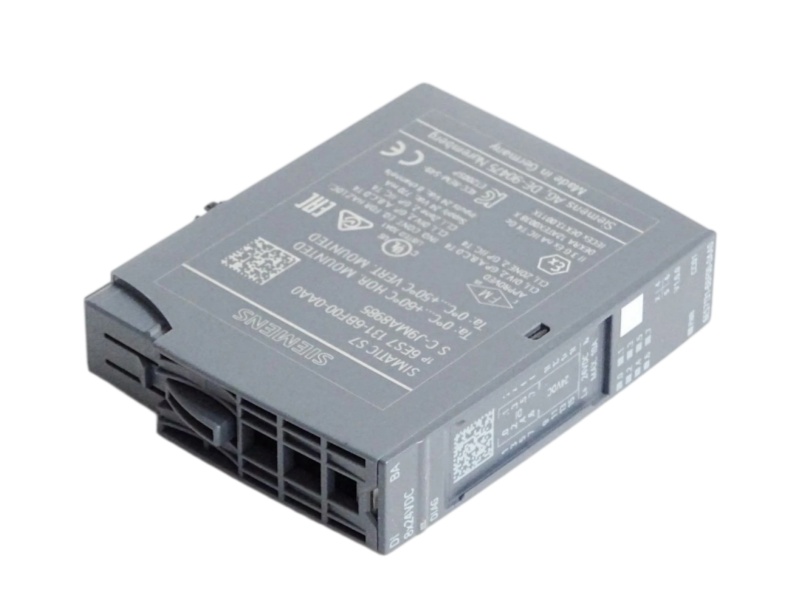

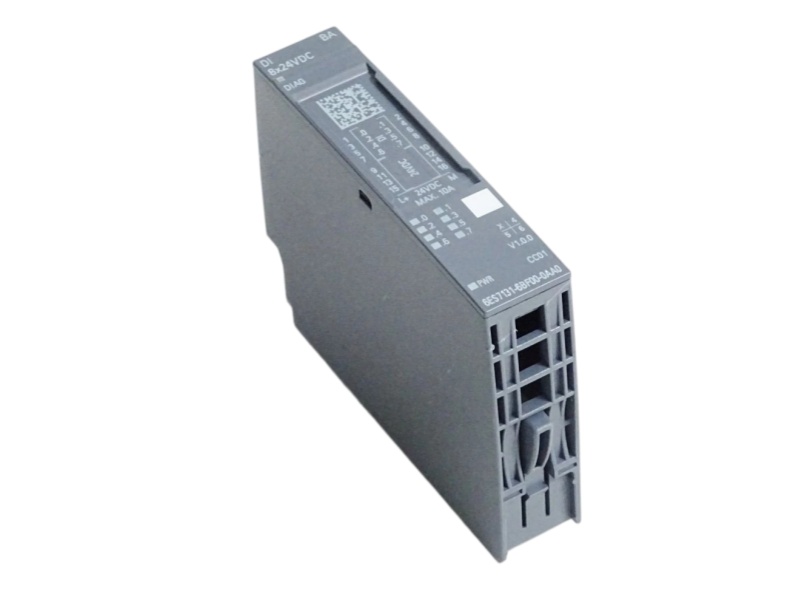

Siemens 6ES7131-6BF00-0AA0 is a SIMATIC ET 200SP Basic digital input module with eight 24 V DC input channels. It is designed for BU type A0 and uses color code CC01. Siemens documentation identifies the exact module as DI 8x24VDC BA with firmware V1.0.0 and module diagnostics for distributed signal acquisition.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7131-6BF00-0AA0 |
| Product Type | ET 200SP DI 8x24 V DC Basic Module |
| Product Lifecycle | Lifecycle wording not confirmed in accessible current Siemens official product data |
| Channel Configuration | 8 digital inputs at 24 V DC |
| Country of Origin | Germany |
| Parameter | Official Specification |
|---|---|
| Product designation | DI 8x24VDC BA |
| I/O system | SIMATIC ET 200SP |
| Module class | Basic digital input module |
| Number of inputs | 8 |
| Rated input voltage | 24 V DC |
| Usable BaseUnit | BU type A0 |
| Module color code | CC01 |
| Module diagnostics | Supported |
| Firmware version | V1.0.0 |
| Input delay range | 0 to 20 ms |
| TIA Portal integration | HSP0126 |
| STEP 7 V5.5 SP3 integration | HSP0229 V5.0 |
The module acquires eight 24 V DC binary field signals in ET 200SP stations. Typical uses include status contacts, limit switches and other discrete P-reading signals where the machine configuration specifies the Basic eight-channel input variant.
Confirm the complete 6ES7131-6BF00-0AA0 suffix, BU type A0, eight-channel 24 V DC input requirement, installed firmware and engineering support package. Do not substitute the later 6ES7131-6BF01-0AA0 version without reviewing spare-part compatibility and project configuration.
The exact lifecycle wording for 6ES7131-6BF00-0AA0 could not be confirmed in an accessible current Siemens official product page. Siemens documentation confirms the exact module and its engineering data; procurement should verify current lifecycle and replacement guidance directly with Siemens.
It is an ET 200SP Basic digital input module with eight 24 V DC channels.
Siemens documentation specifies BU type A0.
The module-specific color code is CC01.
Siemens ET 200SP documentation identifies firmware version V1.0.0 for this exact article.
The module is associated with TIA Portal HSP0126 and STEP 7 V5.5 SP3 HSP0229 V5.0.
Check the full suffix, BU type A0, channel requirement, project hardware catalog and replacement compatibility.
