6ES7193-6AF00-0AA0 Overview

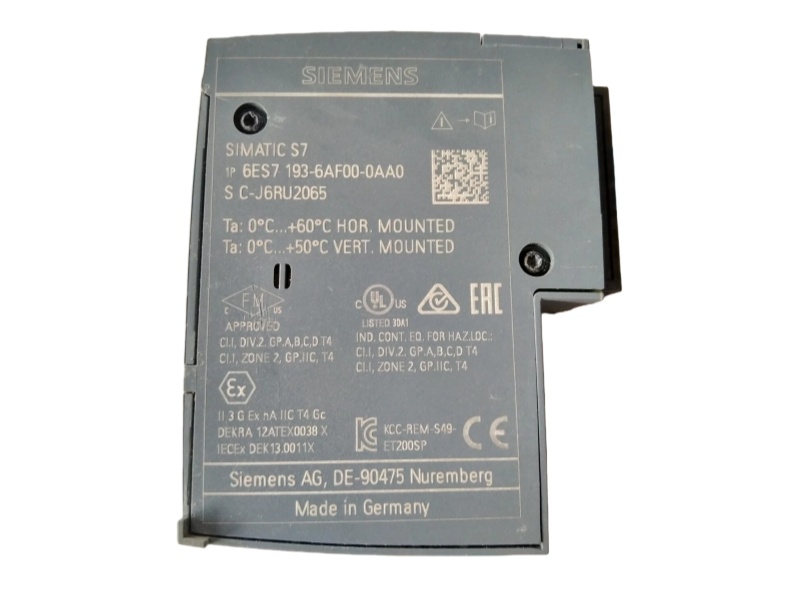

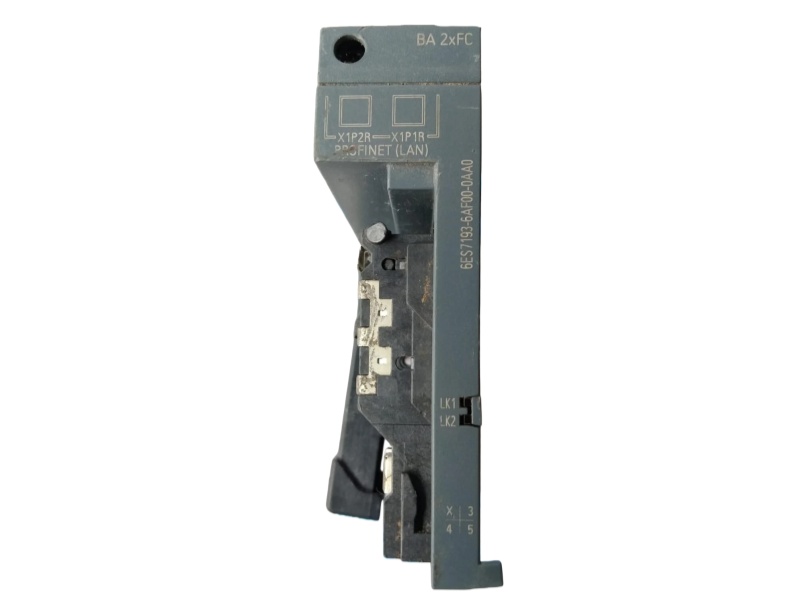

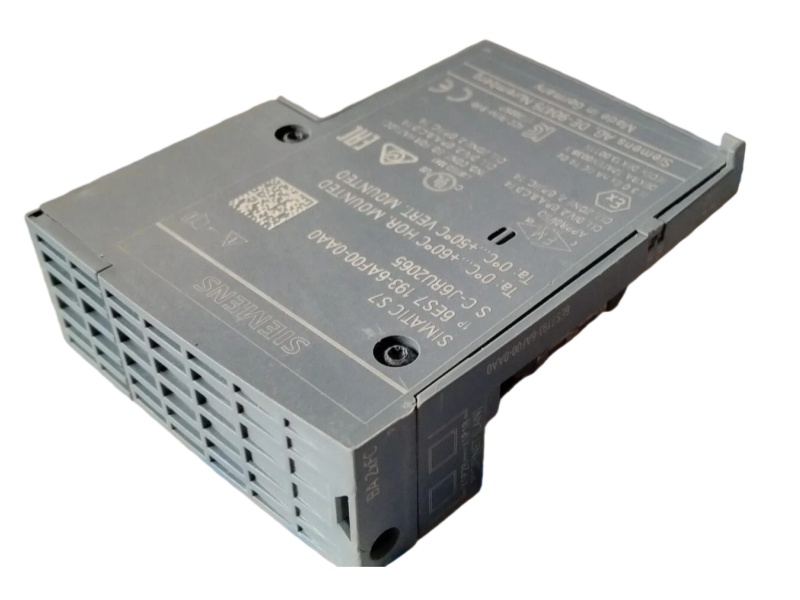

The Siemens SIMATIC ET 200SP 6ES7193-6AF00-0AA0 is a BusAdapter module for SIMATIC ET 200SP. It provides 2 FastConnect (FC) ports and one PROFINET interface, supporting up to 100 m cable length and wide operating temperatures from -30°C to 60°C.

Product Features

Connector Type: 2 FastConnect (FC) ports for tool-free wiring.

Communication Interface: 1 PROFINET IO port for network integration.

Operating Temperature Range: -30°C to 60°C (horizontal mounting).

Compact Size: Compact dimensions of 20 x 69.5 x 59 mm (WxHxD).

Wide Installation Altitude: Suitable for altitudes up to 5000 m.

Lightweight Design: Approximate weight of only 53 g.

FAQ

Q1: What is the 6ES7193-6AF00-0AA0 module used for?

A: It is a BusAdapter module designed for SIMATIC ET 200SP systems, providing two FastConnect (FC) cable ports to simplify wiring and integration in industrial networks.

Q2: Does it support PROFINET communication?

A: Yes, it includes one PROFINET interface and fully supports PROFINET IO for seamless network connectivity.

Q3: What are its installation temperature limits?

A: It can operate between -30°C to 60°C in horizontal mounting, and -30°C to 50°C in vertical installation.

Q4: Is it suitable for high-altitude applications?

A: Yes, it supports installation at altitudes up to 5000 meters above sea level, with specific guidelines for use above 2000 meters.

Q5: How compact and lightweight is this module?

A: It measures 20 x 69.5 x 59 mm (W x H x D) and weighs approximately 53 grams, making it ideal for space-constrained installations.
