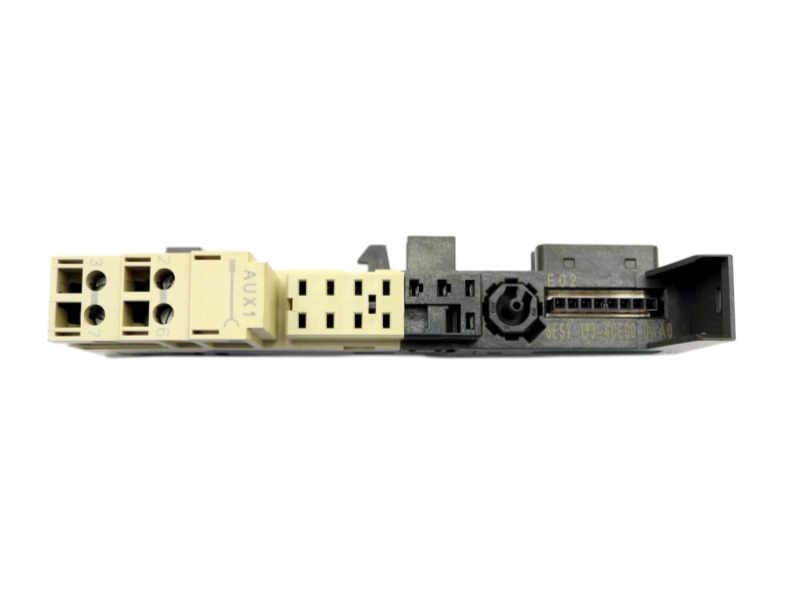

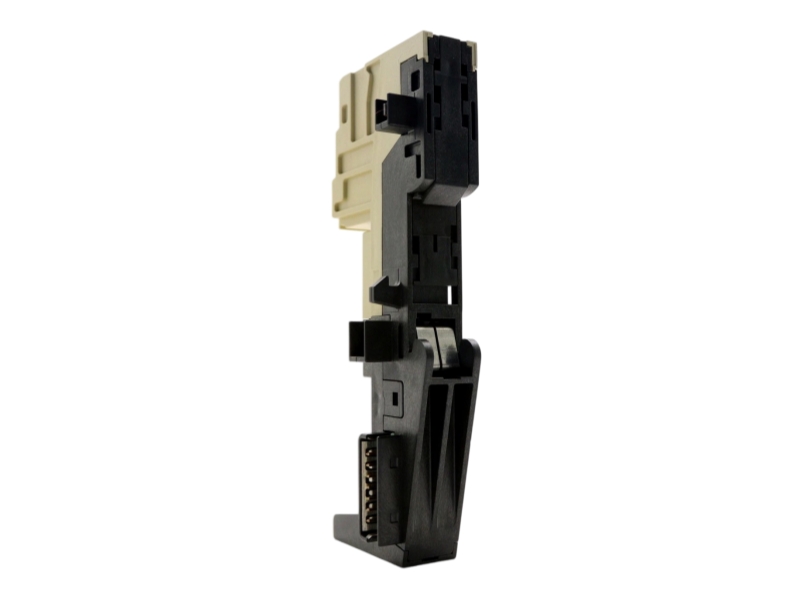

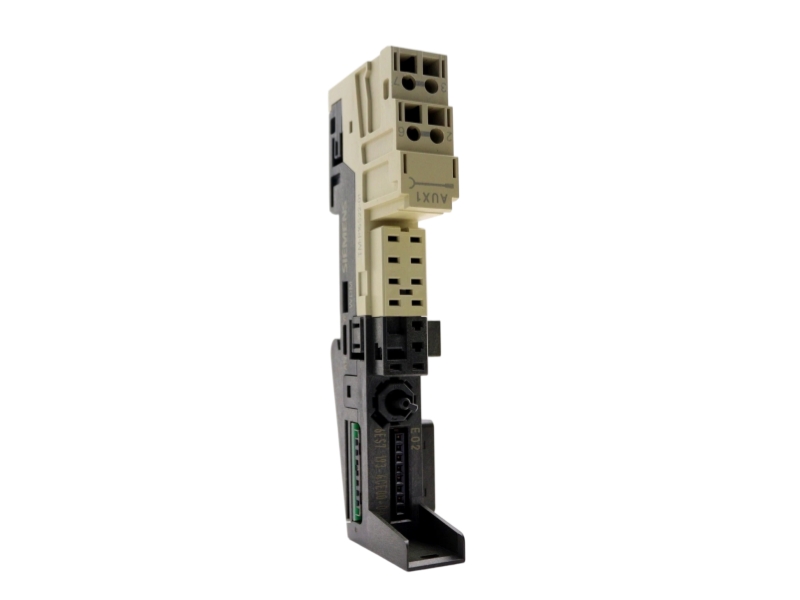

TM-P15S22-01 screw-terminal base for ET 200S power modules and continuous AUX1 potential routing.
Siemens 6ES7193-4CE00-0AA0 is the SIMATIC DP TM-P15S22-01 terminal module for ET 200S power modules. The 15 mm base uses screw terminals with 2 × 2 terminal connections, provides no terminal access to AUX1 and keeps AUX1 continuous. Siemens now lists it as a spare part, so exact mechanical and potential-group compatibility must be confirmed for installed-base maintenance.
| Manufacturer | Siemens |
| Article number | 6ES7193-4CE00-0AA0 |
| Product type | TM-P15S22-01 terminal module |
| Official lifecycle | PM410:Product cancellation |
| Lifecycle effective date | Product cancelled since 1 October 2023 |
| Official supply note | Spare part |
| Technical item | Verified value | Technical item | Verified value |
|---|---|---|---|
| System | SIMATIC ET 200S | Application | For power modules |
| Module width | 15 mm | Terminal technology | Screw terminals |
| Terminal connections | 2 × 2 | AUX1 terminal access | No |
| AUX1 routing | Continuous | Net weight | 0.061 kg |
| Packaging | 4.70 × 13.60 × 2.70 cm | EAN | 4025515059967 |
| UPC | 662643114232 | Quantity unit | 1 piece |
Apply this exact model only after confirming the installed system, electrical design and project documentation.
Provide the correct terminal base for a compatible ET 200S power module.
Preserve the original screw-terminal and potential-group arrangement during maintenance.
Replace a matching TM-P15S22-01 after verifying slot position, AUX1 routing and station wiring.
| Check point | What to confirm | Procurement note |
|---|---|---|
| Module code | Match TM-P15S22-01 exactly. | Similar ET 200S terminal modules have different terminal layouts. |
| Power-module fit | Confirm the associated ET 200S power module. | Inspect mechanical coding and station arrangement. |
| Terminal style | Verify screw terminals are required. | Do not interchange with spring-clamp versions. |
| AUX1 routing | Confirm no terminal access and continuous AUX1. | Review the potential-group diagram. |
| Lifecycle context | Product is a cancelled spare part. | Procure with traceable labels and condition evidence. |
Siemens lists 6ES7193-4CE00-0AA0 as PM410:Product cancellation, effective 1 October 2023, and identifies it as a spare part. This status is retained exactly and is not rewritten as Discontinued.
It is the ET 200S terminal module TM-P15S22-01.
The module uses screw terminals.
Siemens specifies a width of 15 mm.
There is no terminal access to AUX1, and AUX1 is continuous through the module.
No. It is the terminal base for compatible ET 200S power modules.
PM410:Product cancellation since 1 October 2023; Siemens identifies it as a spare part.
Send the complete part number, required quantity, destination and any nameplate photos. We will check condition, compatibility and delivery options.
We verify TM-P15S22-01 identity, screw-terminal layout, AUX1 routing and power-module compatibility before supply.
| Review area | Evidence checked | Why it matters |
|---|---|---|
| Identity review | MLFB and TM-P15S22-01 marking | Prevents terminal-base substitution errors |
| Wiring review | 2 × 2 screw terminals and AUX1 | Protects the station potential concept |
| Mechanical review | 15 mm width and power-module fit | Supports correct ET 200S assembly |
| Dispatch control | Label evidence and protective packing | Improves spare-part traceability |
We can review labels, project constraints, quantity, delivery destination and documentation requirements before quotation.
