Four-channel intrinsically safe digital output electronics for ET 200iSP hazardous-area process I/O stations.

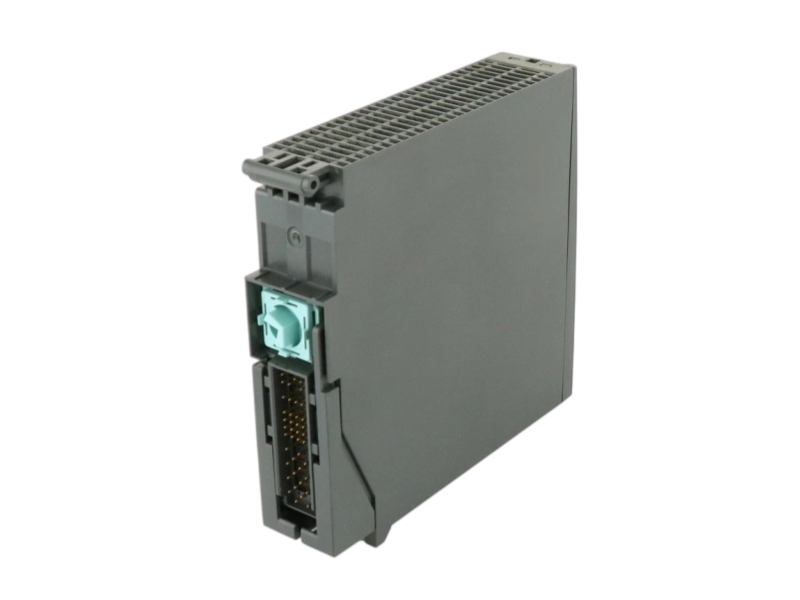

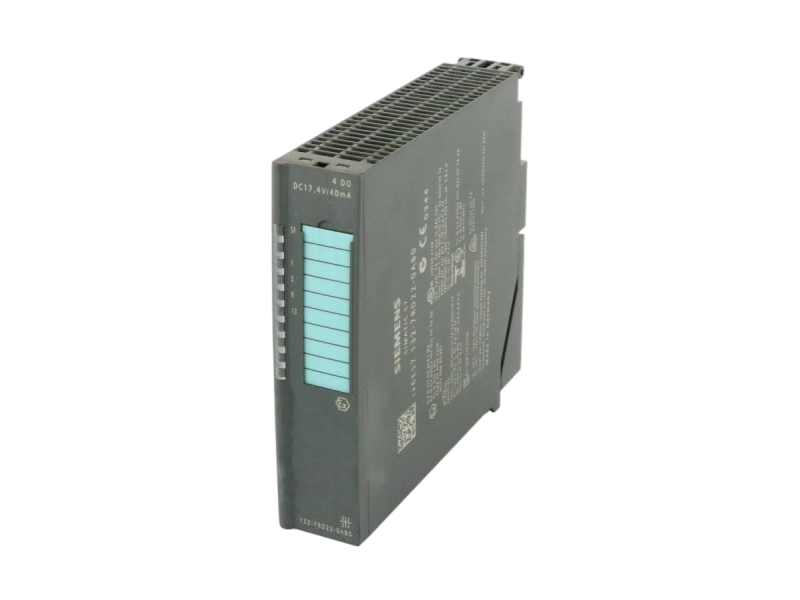

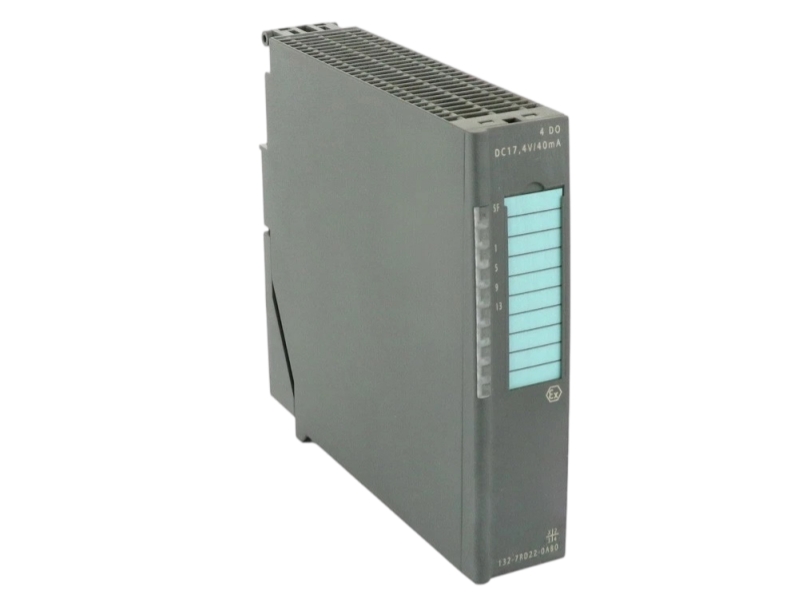

Siemens 6ES7132-7RD22-0AB0 is a SIMATIC ET 200iSP electronic module with four digital outputs rated 17.4 V DC and 40 mA, using H-shutdown. Siemens lists intrinsic-safety approvals for gas, dust and mining applications. The module is active, but hazardous-area procurement still requires confirmation of the complete order number, system design, terminals and the applicable approval marking.
| Manufacturer | Siemens |
| Article number | 6ES7132-7RD22-0AB0 |
| Product family | ET 200iSP digital electronic modules |
| Official lifecycle | PM300:Active Product |
| Standard lead time | 15 days (official catalog value) |
| Country in Siemens catalog | Germany |
| Technical item | Verified value | Technical item | Verified value |
|---|---|---|---|
| Output channels | 4 DO | Output voltage | 17.4 V DC |
| Output current | 40 mA | Shutdown type | H-shutdown |
| Gas approval | Ex ib (ia Ga) IIC T4 Gb | Dust approval | Ex ib [ia IIIC Da] IIC T4 Gb |
| Mining approval | Ex ib [ia] I Mb | Net weight | 0.347 kg |
| Packaging | 13.90 × 15.90 × 4.30 cm | EAN | 4019169219730 |
| UPC | 040892549607 | RoHS compliance | Since 15 July 2010 |
Apply this exact model only after confirming the installed system, electrical design and project documentation.
Drive approved field loads from ET 200iSP stations where intrinsic-safety design requirements are satisfied.
Use in distributed process I/O architectures for valves, indicators or interface devices within permitted ratings.
Apply the specified H-shutdown behavior only within the validated automation and protection concept.
| Check point | What to confirm | Procurement note |
|---|---|---|
| Station family | Confirm ET 200iSP station architecture. | Do not substitute ET 200S or ET 200SP modules. |
| Electrical load | Verify each field load against 17.4 V DC / 40 mA. | Include cable and barrier effects in the loop review. |
| Hazardous-area marking | Match gas, dust or mining approval requirements. | Use the project explosion-protection documentation. |
| Terminal arrangement | Confirm compatible terminal module and wiring. | Inspect coding and slot assignment. |
| Engineering release | Check hardware configuration and safety documentation. | Changes require authorized engineering approval. |
Siemens currently lists 6ES7132-7RD22-0AB0 as PM300:Active Product. Procurement and installation must nevertheless follow the current hazardous-area certificates and project-specific approval basis.
The module provides four digital output channels.
Siemens specifies 17.4 V DC and 40 mA.
The official description states H-shutdown.
Siemens lists intrinsic-safety markings for gas, dust and mining; the complete system approval still governs use.
No. It is an ET 200iSP module and station compatibility must be checked independently.
Siemens lists PM300:Active Product.
Send the complete part number, required quantity, destination and any nameplate photos. We will check condition, compatibility and delivery options.
We verify the exact 6ES7132-7RD22-0AB0 suffix, output rating, approval marking and ET 200iSP station fit before supply.
| Review area | Evidence checked | Why it matters |
|---|---|---|
| Identity review | Full MLFB and label evidence | Prevents mixing ET 200iSP variants |
| Loop review | 17.4 V DC / 40 mA load match | Supports electrical compatibility |
| Approval review | Gas, dust and mining markings | Supports hazardous-area documentation |
| Dispatch control | Protective packing and records | Improves traceable international supply |
We can review labels, project constraints, quantity, delivery destination and documentation requirements before quotation.
