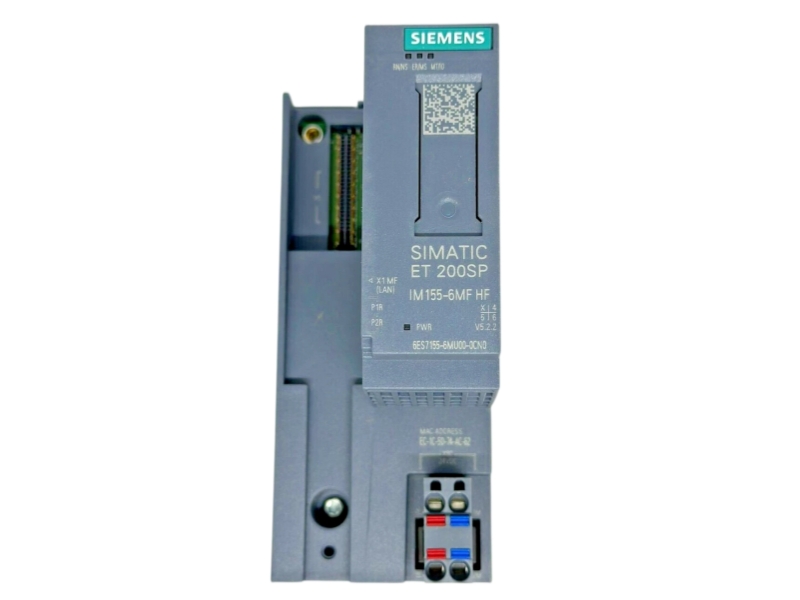

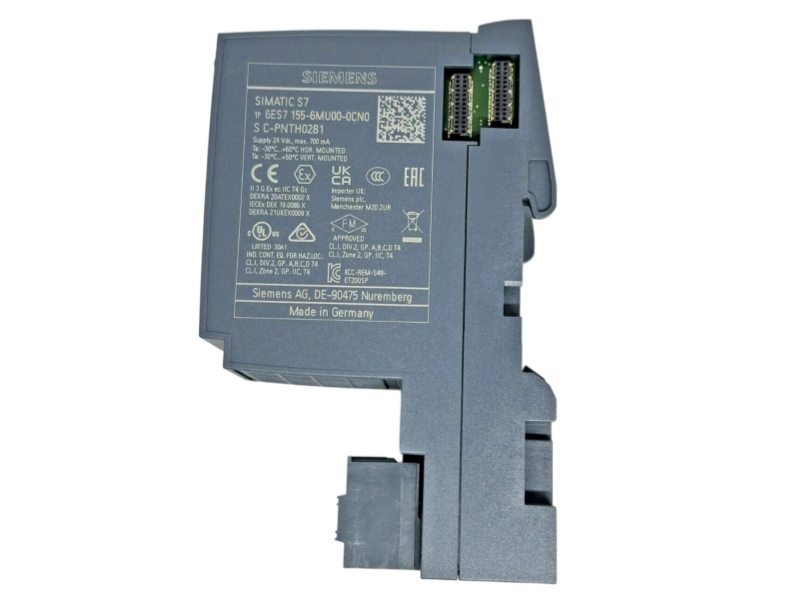

SIMATIC ET 200SP MultiFieldbus interface for PN IO, EtherNet/IP and Modbus TCP
Siemens 6ES7155-6MU00-0CN0 is a SIMATIC ET 200SP MultiFieldbus interface module designed to connect distributed I/O stations through PN IO, EtherNet/IP or Modbus TCP. The IM 155-6 MF High Feature unit provides one network interface with two ports through a BusAdapter and supports up to 64 ET 200SP I/O modules plus 16 ET 200AL modules. It includes a server module and supports multi-hot swap. For replacement procurement, match the complete order number, fieldbus configuration, BusAdapter type, station layout and hardware revision. The official Siemens lifecycle is PM400: Announcement of product phase-out, effective from March 1, 2025.
| Item | Details |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM400: Announcement of product phase-out; product phase-out since 2025-03-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7155-6MU00-0CN0 |
| Product Type | MultiFieldbus 2-port interface module |
| Product Family | SIMATIC ET 200SP / IM 155-6 |
| Module Designation | IM 155-6 MF High Feature |
| Supported Networks | PN IO, EtherNet/IP and Modbus TCP |
| Network Interface | 1 PROFINET interface with 2 ports via BusAdapter |
| Transmission | 100 Mbit/s full duplex (100BASE-TX) |
| BusAdapter Slots | 1 |
| ET 200SP Capacity | Up to 64 I/O modules |
| ET 200AL Capacity | Up to 16 modules |
| Submodules per Station | Up to 256 |
| Address Space per Module | Up to 288 bytes for input and output data respectively |
| Address Space per Station | Up to 1,440 bytes, configuration dependent |
| Current Consumption | 700 mA maximum |
| Power Loss | 2.4 W typical |
| Included Component | Server module |
| Special Function | Multi-hot swap |
| Packaging Dimensions | 8.30 x 12.40 x 6.20 cm |
| Net Weight | 0.178 kg |
| Country of Origin | Germany |
| Review Area | Application Guidance |
|---|---|
| System Context | SIMATIC ET 200SP distributed I/O stations |
| Fieldbus Role | Connects the station through PN IO, EtherNet/IP or Modbus TCP |
| Local Expansion | Supports ET 200SP I/O modules and ET 200AL modules within the official limits |

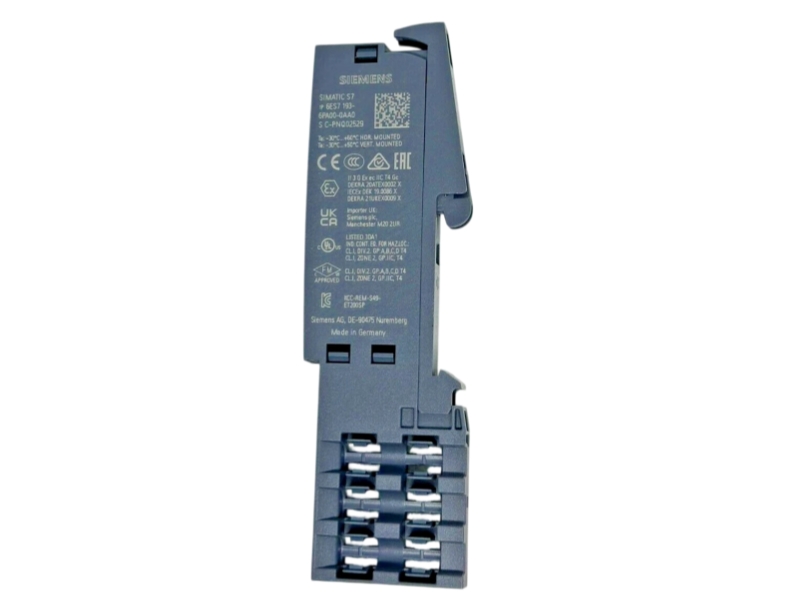

| Port Arrangement | Two network ports are provided through the selected BusAdapter |
| Maintenance Use | Replacement or strategic spare for stations using this exact IM 155-6 MF HF order number |
| Engineering Review | Confirm fieldbus configuration, station layout, BusAdapter, revision and project data |
Compatibility must be evaluated against the installed station and engineering configuration. A similar IM 155-6 designation alone does not establish direct interchangeability.
Siemens lists 6ES7155-6MU00-0CN0 as PM400: Announcement of product phase-out, with product phase-out since March 1, 2025. Siemens identifies 6ES7155-6MU01-0CN0 as the successor and notes compatibility without a Fiber Optic BusAdapter. Confirm the installed BusAdapter, network media, station configuration, hardware revision and engineering project before replacement.
It identifies a Siemens SIMATIC ET 200SP IM 155-6 MF High Feature MultiFieldbus interface module.
The official Siemens description lists PN IO, EtherNet/IP and Modbus TCP.
Siemens specifies up to 64 ET 200SP I/O modules and 16 ET 200AL modules.
Confirm the complete order number, BusAdapter, fieldbus configuration, station layout, hardware revision and engineering project.
Siemens states PM400: Announcement of product phase-out, with product phase-out since March 1, 2025.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, packaging and logistics support for Siemens 6ES7155-6MU00-0CN0
Our process is designed to give purchasing teams and engineers clear evidence before shipment. Each request is handled around the exact order number, condition requirement and destination rather than a generic product description.
| Service Step | What We Check |
|---|---|
| Model and Suffix Verification | The complete Siemens order number, suffix and visible revision markings are compared with the request. |
| Condition Confirmation | Packaging, seals, enclosure condition and included items are reviewed against the offered condition. |
| Technical Compatibility Review | Available labels, interfaces, connector arrangements and customer-provided system details are compared before approval. |
| Product and Label Photos | Clear inspection images can be supplied for model, revision, connector and condition confirmation. |
| Protective Packaging | Antistatic protection, cushioning and an outer carton are selected for industrial electronic modules. |
| Worldwide Shipping | Available carrier options are coordinated according to destination, package requirements and applicable restrictions. |
| Tracking and Customs Documents | Shipment tracking and standard commercial documents are prepared for the selected route. |
| Warranty and Returns | Written warranty terms and the return authorization process are provided with the commercial agreement. |
| After-Sales Response | Our team follows up on documentation, shipment status and reported product issues. |
Before dispatch, the team checks the visible manufacturer label, order number, revision markings, physical condition and available accessories. Product evidence is compared with the quotation and buyer requirements. Packaging and shipping documents are then prepared for the agreed transport route. This process supports traceable communication without promising unverified quantities or fixed delivery times.
Look for complete company contact details, clear product identification, inspection evidence, written commercial terms and a documented after-sales process.
Confirm the quotation, full order number, product-label photos, condition statement, warranty scope, shipping terms, customs documents and return authorization procedure.
Compare the complete model and suffix, hardware revision, connectors, rack location, power arrangement, signal assignment and project configuration with the installed system.
Warning signs include an incomplete model number, refusal to provide label photos, conflicting specifications, unclear condition descriptions and no explained return process.
Email and WhatsApp details are provided for model verification, inspection requests, packaging coordination and shipping support.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
