PROFINET interface module with two RJ45 ports for ET 200S stations of up to 63 modules and 2 m width.

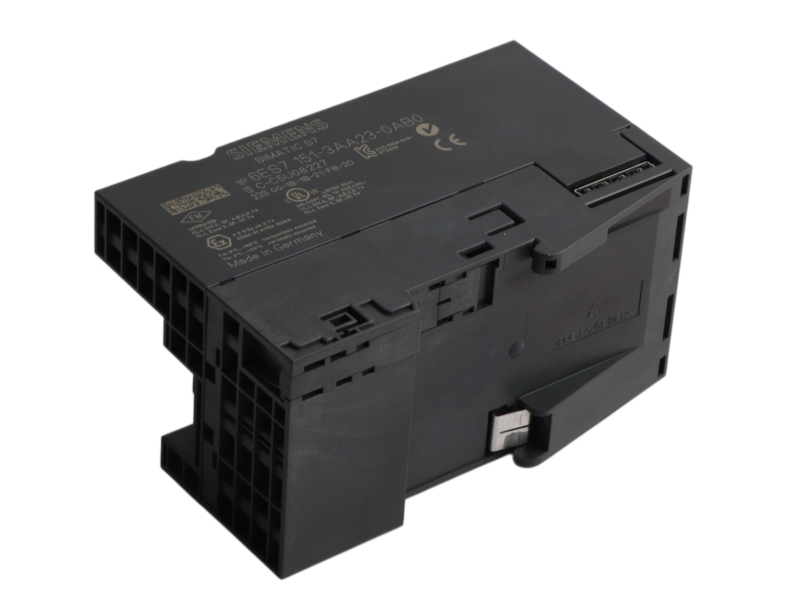

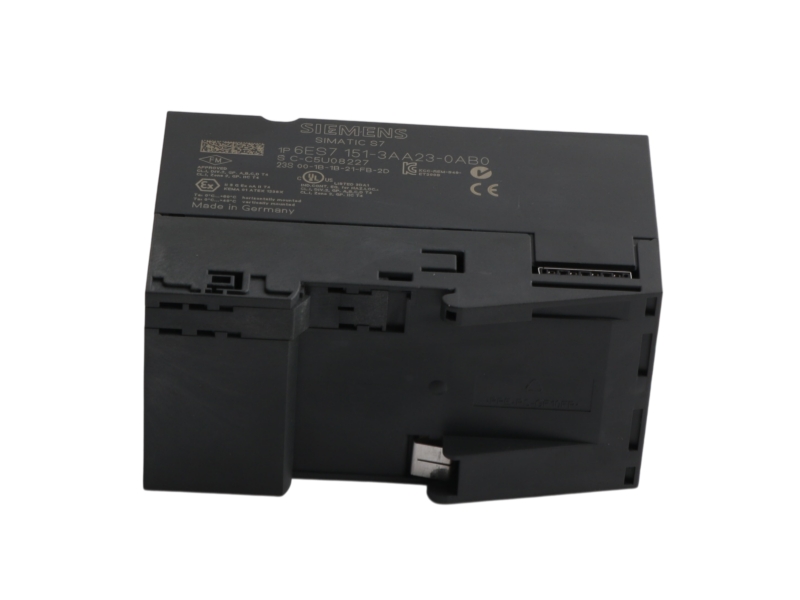

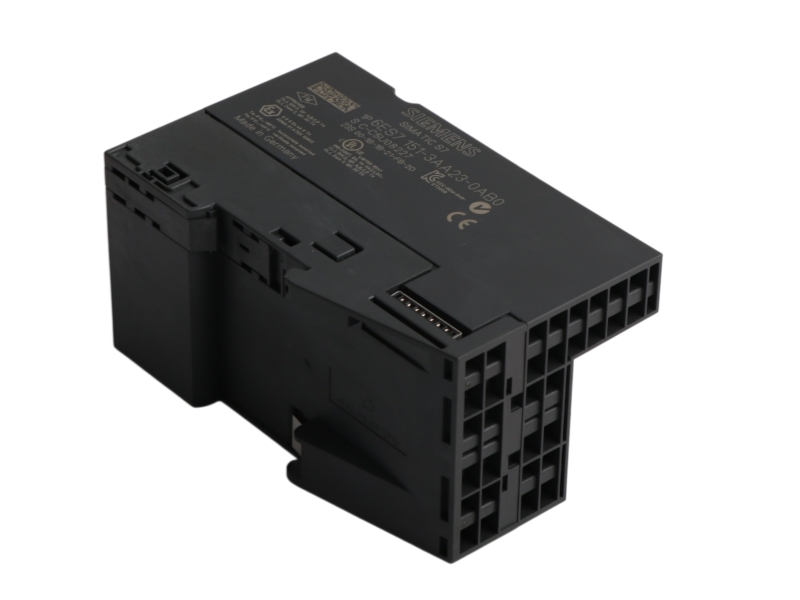

Siemens 6ES7151-3AA23-0AB0 is a SIMATIC ET 200S IM 151-3 PN ST interface module for connecting distributed I/O stations to PROFINET IO.
The 100 Mbps module provides two RJ45 ports and supports ET 200S configurations with up to 63 power, electronic or motor-starter modules and a maximum station width of 2 m. A termination module is included.
| Commercial field | Verified Siemens record |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7151-3AA23-0AB0 |
| Official designation | IM 151-3 PN ST interface module |
| Product family | SIMATIC ET 200S |
| Product lifecycle | PM410: Start Support phase / Spare & Repair - Remainder support period |
| Product cancelled since | 2021-10-01 |
| Technical field | Exact-model data |
|---|---|
| Network interface | PROFINET IO; 2 × RJ45 |
| Data rate | 100 Mbps full duplex; 100BASE-TX |
| Maximum station configuration | 63 power, electronic or motor-starter modules |
| Maximum station width | 2 m |
| Autonegotiation / autocrossing | Supported |
| IRT send cycle | 250 µs to 4 ms in 125 µs increments |
| RT / IRT high-flexibility cycles | 250 µs, 500 µs, 1 ms |
| Supported services | Ping, ARP, LLDP, SNMP/MIB-2, prioritized startup, media redundancy, shared device |
| Module width | 60 mm |
| Weight | Approx. 150 g |
| Included item | Termination module |
| Application | System fit |
|---|---|
| Distributed I/O stations | Connects modular ET 200S stations to a PROFINET IO controller. |
| Machine automation | Supports compact remote I/O for sensors, actuators and motor starters. |
| Redundant network planning | Provides media-redundancy support when correctly engineered within the PROFINET topology. |
| Replacement projects | Suitable when station layout, module count, PROFINET features and software configuration are verified. |
Siemens lists 6ES7151-3AA23-0AB0 as PM410: Start Support phase / Spare & Repair - Remainder support period, with product cancellation since 2021-10-01.
It is an ET 200S IM 151-3 PN ST interface module for connecting distributed I/O to PROFINET IO.
The exact module supports up to 63 power, electronic or motor-starter modules in a station up to 2 m wide.
It provides two RJ45 PROFINET ports for 100 Mbps full-duplex 100BASE-TX operation.
The interface module is 60 mm wide and weighs approximately 150 g.
Confirm the station layout, module count, termination module, PROFINET topology, firmware and engineering configuration.
