SIMATIC ET 200X · DISTRIBUTED TEMPERATURE INPUT
Two-channel Pt100 acquisition for modular ET 200X stations

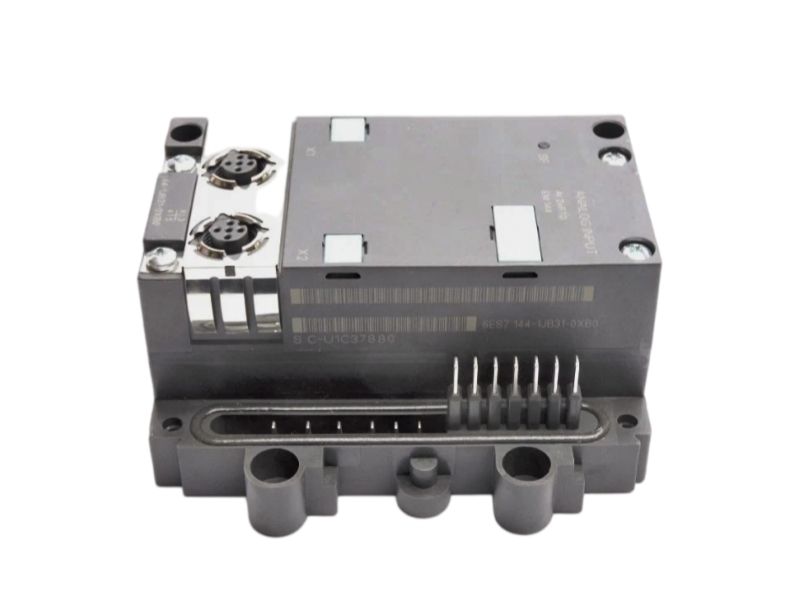

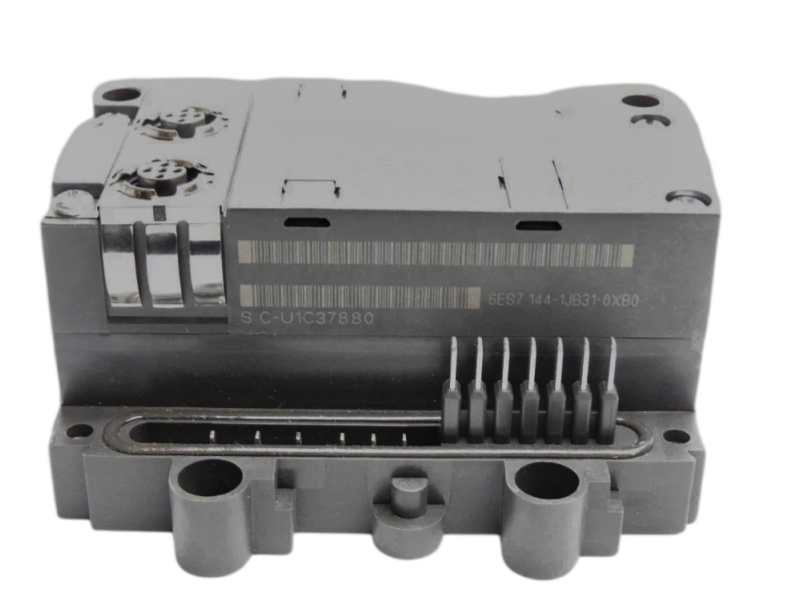

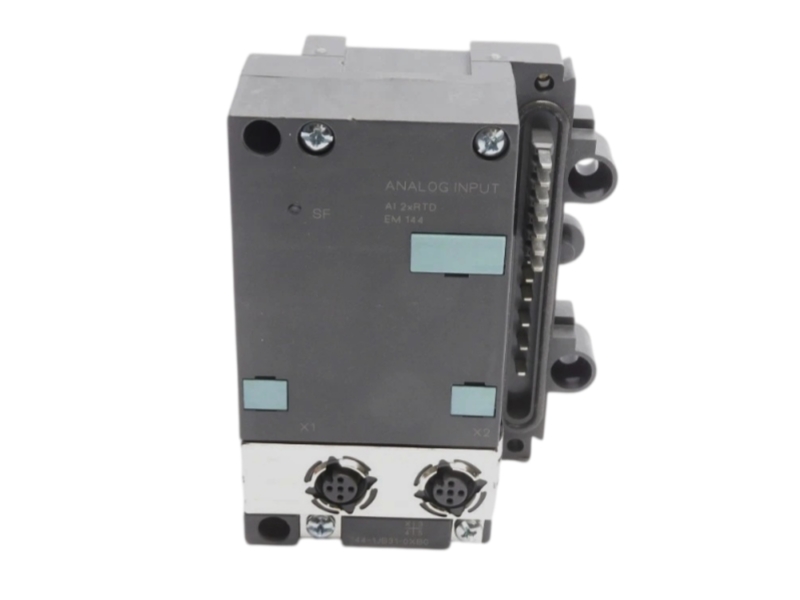

Siemens 6ES7144-1JB31-0XB0 is the SIMATIC DP ET 200X expansion module EM 144 AI 2 x RTD for acquiring two Pt100 resistance-temperature signals in distributed I/O stations. The official ET 200X documentation identifies two channels with a shared measurement range and data format, 12-bit resolution plus sign, and selectable two-, three-, or four-wire sensor connection. It supports configurable diagnostics, diagnostic alarms and process interrupts. For replacement work, buyers should verify the full order number, station configuration, wiring method, parameter assignment and connector arrangement before installation.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7144-1JB31-0XB0 |
| Product Type | SIMATIC DP ET 200X expansion module EM 144 AI 2 x RTD |
| Series | SIMATIC ET 200X |
| Number of Channels | 2 analog inputs |
| Sensor Input | Pt100 resistance thermometer |
| Resolution | 12 bit plus sign |
| Supply Voltage | 24 V DC |
| Electrical Isolation | Non-isolated |
| Sensor Connection | 2-wire, 3-wire or 4-wire |
| Diagnostics | Parameterizable diagnostics with SF LED |
| Alarms | Parameterizable diagnostic alarm and process interrupt |
| Country of Origin | GERMANY |
| Distributed temperature measurement | Acquisition of two Pt100 signals near field equipment in an ET 200X station. |
|---|---|
| Machine thermal monitoring | Monitoring bearing, enclosure or process temperatures where Pt100 sensors are specified. |
| Maintenance replacement | Like-for-like replacement after order number, wiring and parameter comparison. |
| Decentralized I/O expansion | Adding RTD channels within a compatible ET 200X hardware configuration. |
The current Siemens ET 200X equipment documentation confirms the exact order number and module characteristics but does not state a current PLM lifecycle status. No lifecycle conclusion is inferred.
It identifies the Siemens SIMATIC DP ET 200X EM 144 AI expansion module with two Pt100 RTD inputs.
The official ET 200X documentation specifies two analog input channels using the same measurement range and data format.
The module supports two-wire, three-wire and four-wire Pt100 connections; the installed wiring must match the configured parameters.
Yes. Siemens documents parameterizable diagnostics, a diagnostic alarm, a process interrupt and an SF status LED.
The current official equipment documentation used here does not provide a present PLM lifecycle designation, so no discontinuation conclusion is stated.
Verify the full suffix, ET 200X station layout, Pt100 wiring, parameter assignment, connector arrangement and label photographs.
