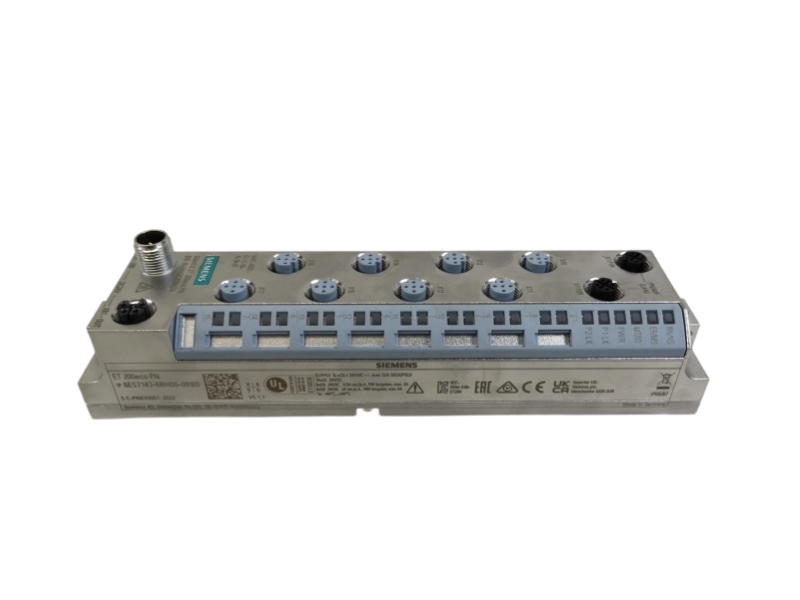

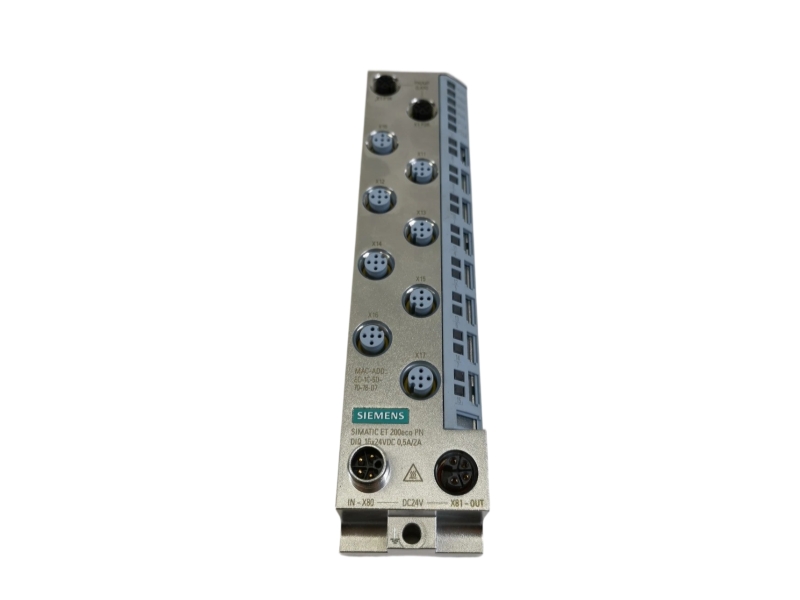

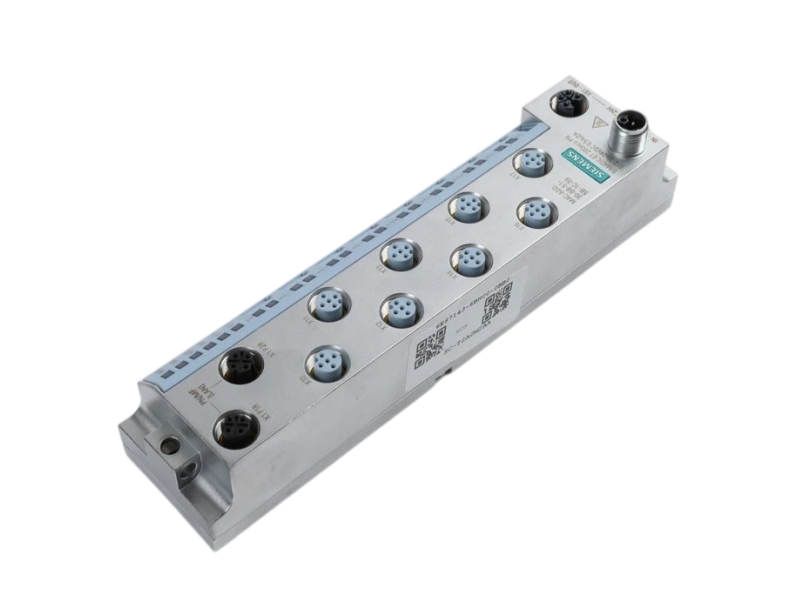

Siemens 6ES7143-6BH00-0BB0 is the ET 200eco PN M DIQ 16x24VDC/0.5A/2A M12-L distributed digital input and output module. The exact device provides 16 digital channels through eight M12 I/O connections and communicates as a PROFINET IO device through two D-coded M12 Ethernet ports with an integrated switch. Siemens documentation also identifies EtherNet/IP and Modbus TCP support. The field unit has IP65, IP67 and IP69K protection and an operating temperature range from -40 to 60 degrees Celsius. Condition, availability and warranty displayed here are Stockoems commercial terms only.
Product condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7143-6BH00-0BB0 |
| Product Type Designation | DIQ 16x24VDC/0.5A/2A M12-L 8xM12 |
| Product Type | ET 200eco PN M Digital I/O Module |
| Digital Channels | 16 |
| I/O Connections | 8 x M12, 5-pin, A-coded |
| PROFINET Interface | 1 interface with 2 x M12, 4-pin, D-coded ports |
| Integrated Switch | Yes |
| Supported Protocols | PROFINET IO, EtherNet/IP, Modbus TCP |
| Protection Rating | IP65 / IP67 / IP69K |
| Operating Temperature | -40 to 60 degrees Celsius |
| Dimensions | 45 x 200 x 48 mm |
| Weight | Approx. 780 g |
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping |
| Country of Origin | GERMANY |
The ET 200eco PN M module acquires and switches field-level digital signals through M12 connections, then exchanges process data with the automation network through its integrated PROFINET interface.
It is an ET 200eco PN M module combining 16 digital inputs and outputs with M12 connectivity.
The exact Siemens designation specifies 16 digital input and output channels.
The unit provides one PROFINET interface through two D-coded M12 Ethernet ports with an integrated switch.
Siemens documentation identifies PROFINET IO, EtherNet/IP and Modbus TCP support.
The exact equipment manual specifies IP65, IP67 and IP69K protection.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Our workflow supports exact-I/O verification, channel and M12 compatibility review, inspection, documentation, packing and after-sales communication for ET 200eco PN orders.
Check whether the supplier verifies the full model and suffix, provides clear condition evidence, supports product and label photos, and documents warranty and return terms in writing.
Request exact order-number confirmation, quantity, visible-condition evidence, compatibility review scope, packaging method, shipping documentation and a defined after-sales contact.
Verify the complete order number, SCALANCE designation, engineering status, network media, connector format and installation requirements against the existing system.
Warning signs include incomplete suffixes, inconsistent labels, reused photos, unsupported compatibility claims, vague condition descriptions, missing written warranty terms and unclear return authorization procedures.
