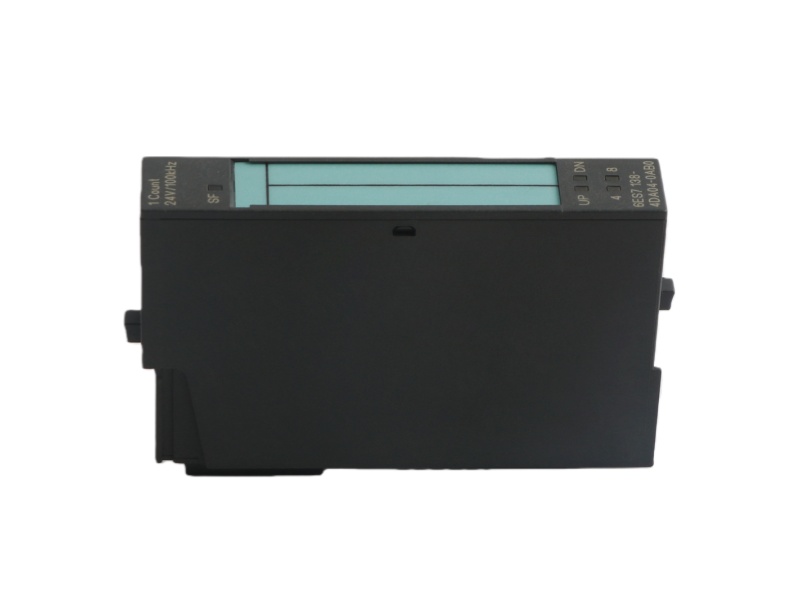

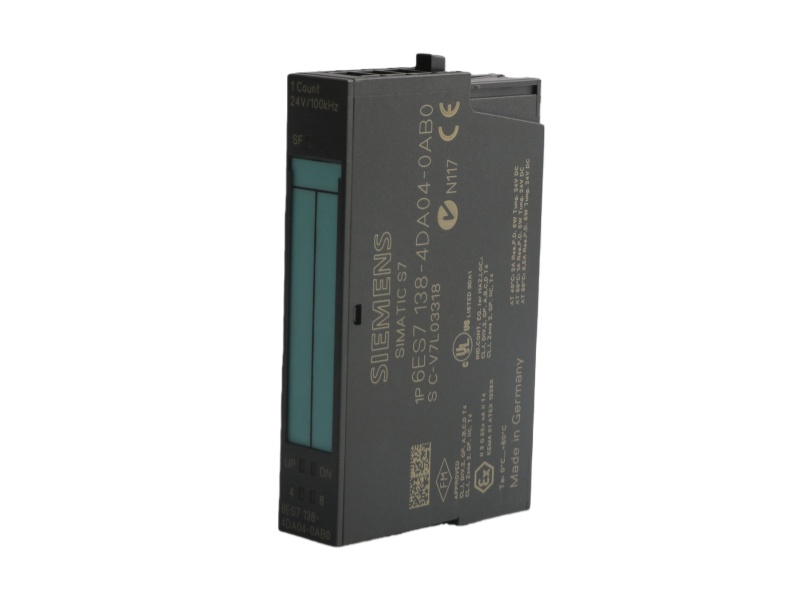

The Siemens 6ES7138-4DA04-0AB0 distributed I/O system represents a sophisticated electronic counting module within the SIMATIC ET 200S distributed I/O system, specifically engineered for high-speed counting and precision measurement applications. This specialized 1Count24V module accommodates 24V pulse signals at frequencies up to 100 kHz, delivering exceptional performance in industrial counting and measurement tasks. The technical architecture of the module supports multiple operating modes including continuous counting, single counting, and periodic counting, providing versatile solutions for diverse industrial automation scenarios.

Measurement capabilities distinguish the Counter Module Siemens 6ES7138-4DA04-0AB0 through its advanced frequency measurement, rotational speed monitoring, and period measurement functions that enable precise machine monitoring and process control. The module's isochronous operation mode ensures synchronized data acquisition within PROFIBUS networks, making the SIEMENS ET 200S 6ES7 138-4DA04-0AB0 particularly valuable in applications requiring precise timing coordination across multiple automation components. This synchronization capability enhances measurement accuracy in high-speed production environments where timing precision directly impacts product quality and process efficiency.

Installation and integration of the Siemens 6ES7138-4DA04-0AB0 Counter Module follows the modular ET 200S platform standards, requiring only 15mm installation width and compatible with TM-E15S24-01 and TM-E15S26-A1 terminal modules. The enhanced data interface of the Siemens 6ES7138-4DA04-0AB0 utilizes 12 bytes of input data and 6 bytes of output data when used with supported interface modules, providing expanded diagnostic capabilities and configuration flexibility compared to previous versions. This improved data structure enables more detailed analysis and control of counting processes within complex automation systems.

Implementation of the 6ES7 138-4DA04-0AB0 Siemens Electronics module typically occurs in applications requiring precise event counting, speed monitoring, or position feedback across various industries including packaging, material handling, and automotive manufacturing. The proven reliability and full backward compatibility of the module establish it as a trusted solution for replacing older counting modules while maintaining existing system configurations and wiring infrastructures. This compatibility ensures seamless system upgrades while delivering enhanced performance characteristics in demanding industrial counting and measurement applications.
