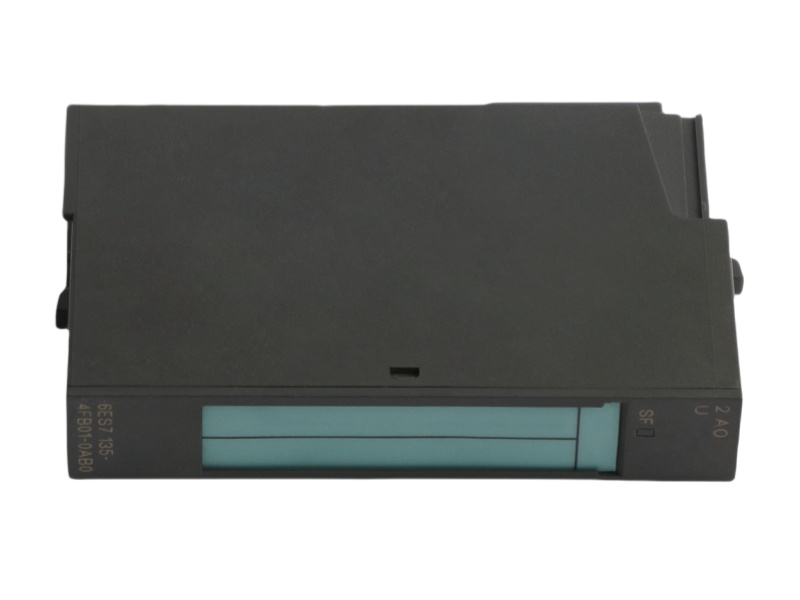

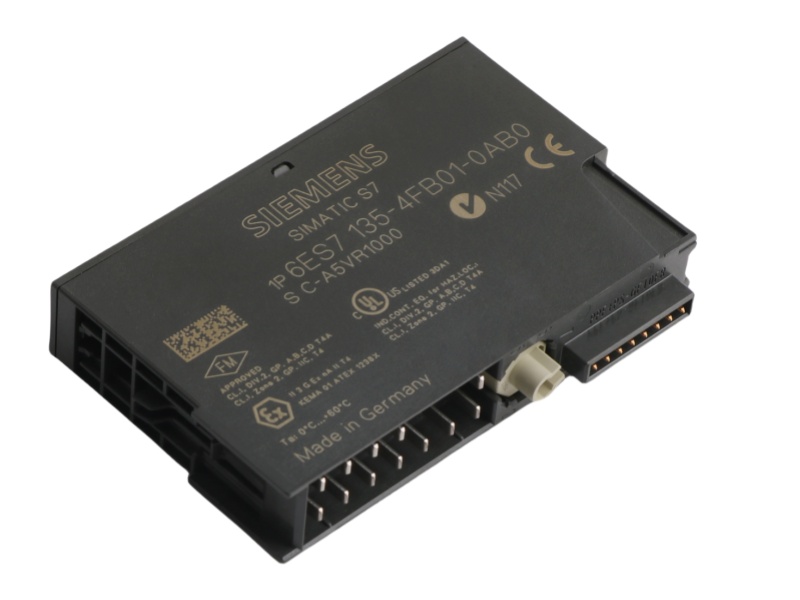

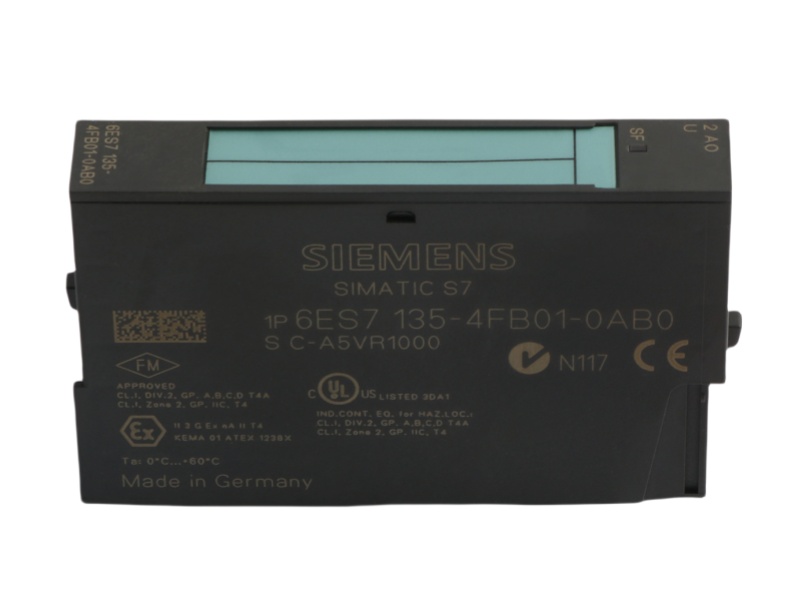

The SIEMENS 6ES7 135-4FB01-0AB0 I/O Module is a high-performance analog output module designed for use within the SIMATIC DP ET 200S distributed I/O system. This module offers two analog output channels, supporting voltage ranges of ±10 V and 1–5 V with 13-bit + sign or 12-bit resolution, ensuring precise control in demanding automation environments. Its compact 15 mm width allows efficient space utilization in control cabinets.

With a fast cycle time of less than 1 ms and short-circuit protection up to 25 mA, the 6ES7 135-4FB01-0AB0 Siemens analog electronic module ensures safe and reliable operation. It includes reverse polarity protection and features a red SF (group fault) LED indicator to facilitate easy diagnostics and maintenance. Power is supplied via a 24 V DC rated input, with a maximum power loss of only 2 W, making it energy efficient and suitable for long-term continuous operation.

The Siemens 6ES7135-4FB01-0AB0 Analog Output Module draws a maximum of 130 mA from the load voltage and only 10 mA from the 3.3 V DC backplane bus, indicating its low internal power requirements. It offers high-voltage tolerance, supporting up to 15 V continuous and 75 V transient voltages at the outputs, further enhancing its robustness in industrial settings.

Manufactured by Siemens in Germany and shipped from Xiamen, China, the Siemens 6ES7135-4FB01-0AB0 Electronic Modules weighs just 0.04 kg and measures 1.5 x 5.5 x 8.3 cm. 6ES7135-4FB01-0AB0 Siemens Simatic ET200S compact size, advanced safety features, and high accuracy make the Siemens 6ES7135-4FB01-0AB0 a trusted choice for automation professionals seeking reliable analog output performance.
