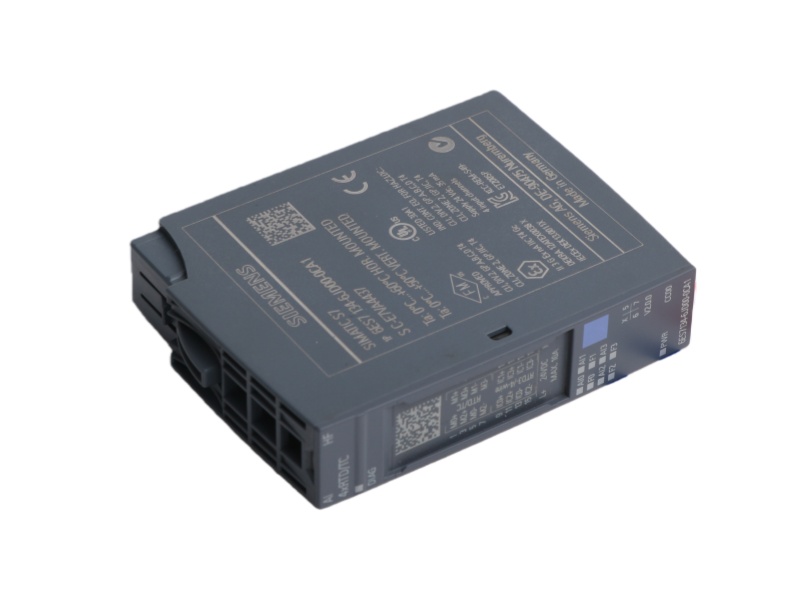

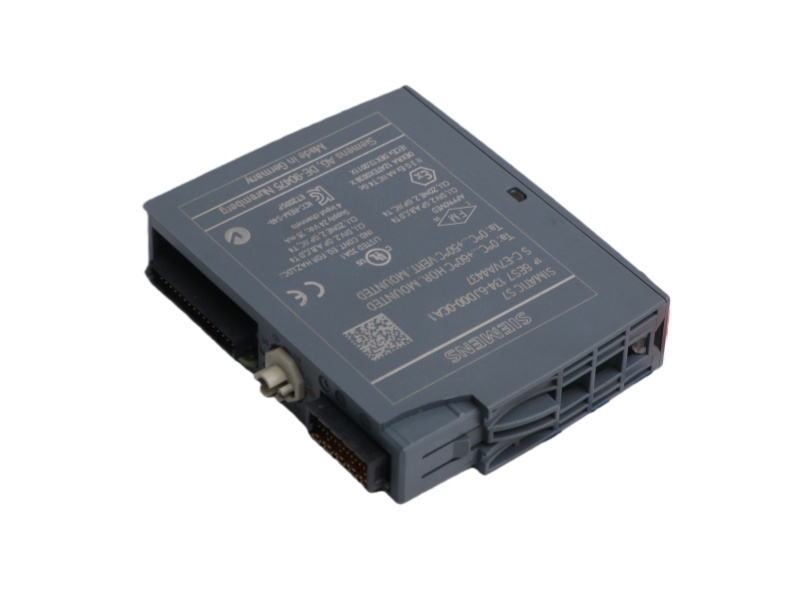

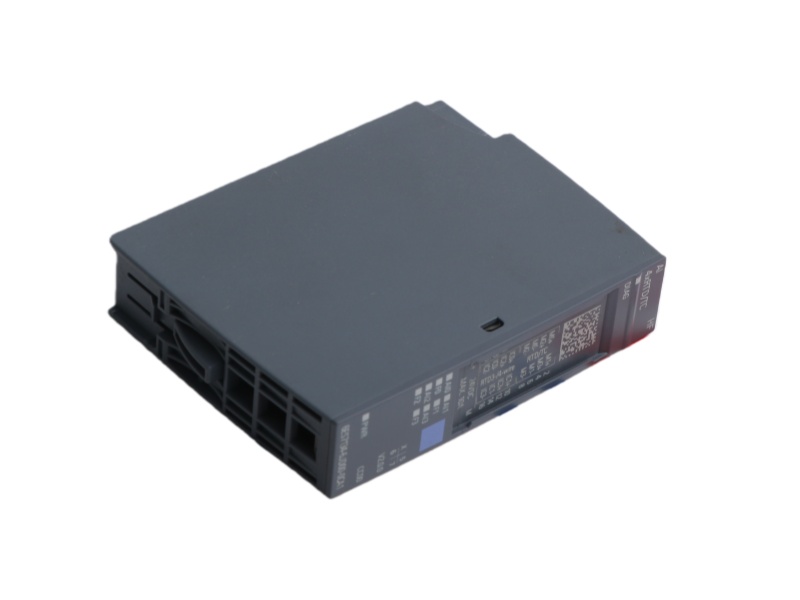

The 6ES7134-6JD00-0CA1 Siemens Analog Input Module is a high-performance analog input module designed for the SIMATIC ET 200SP distributed I/O system. It serves as a versatile interface for connecting up to four temperature sensors, supporting both Resistance Temperature Detectors and various thermocouple types. The advanced functionality of the module makes it ideal for precise temperature monitoring in demanding industrial processes.

A key feature of the Digital and Analog I/O Module Siemens 6ES7 134-6JD00-0CA1 is its exceptional measurement accuracy of ±0.1% and high 16-bit resolution, ensuring reliable and detailed process data acquisition. The module offers flexible wiring configurations, accommodating 2-, 3-, or 4-wire connection schemes for RTDs to compensate for lead resistance errors. This wiring flexibility represents a significant advantage of the Analog Input Module Siemens 6ES7134-6JD00-0CA1, simplifying installation and improving measurement accuracy across different application scenarios.

The module incorporates comprehensive channel-level diagnostics that continuously monitor sensor health and connection integrity. This diagnostic capability enables early detection of faults such as wire breaks or sensor failures, allowing for proactive maintenance and reducing system downtime. The reliable performance of the SIMATIC ET 200SP Siemens 6ES7 134-6JD00-0CA1 ensures continuous operation in critical temperature monitoring applications.

Designed for use with Base Unit type A0 or A1 and identified by color code CC00, the 6ES7134-6JD00-0CA1 Siemens ANALOG INPUT MODULE integrates seamlessly into the modular ET 200SP system architecture. Its compact design and high-feature set provide an optimal solution for precise temperature measurement requirements. The robust construction and advanced features of the module make it an essential component for accurate process control and monitoring in automated systems.
