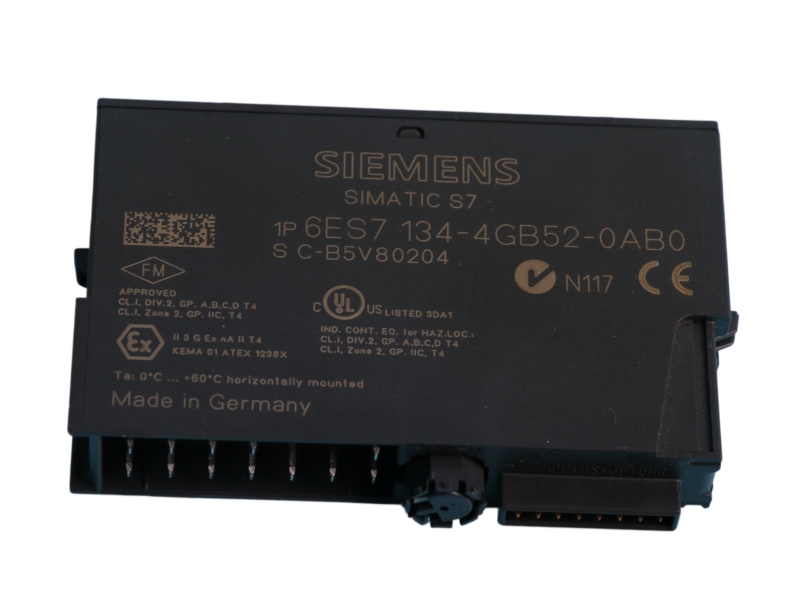

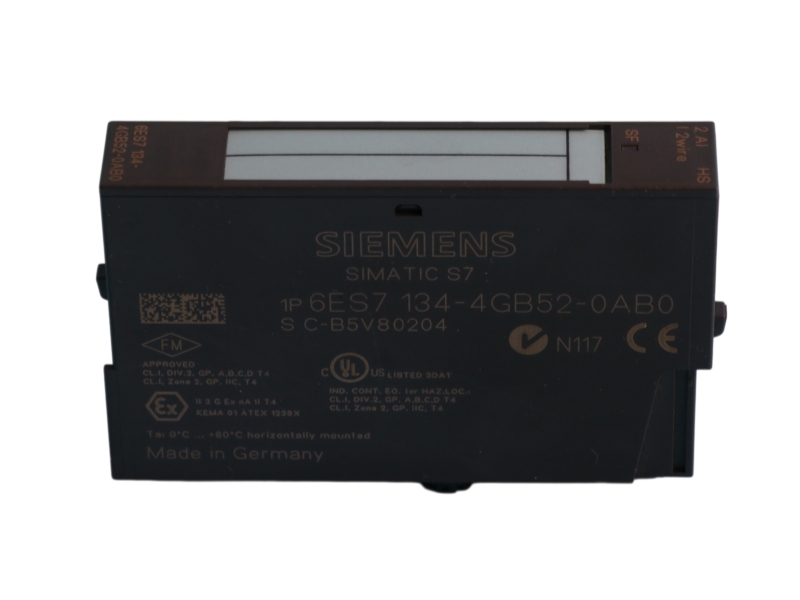

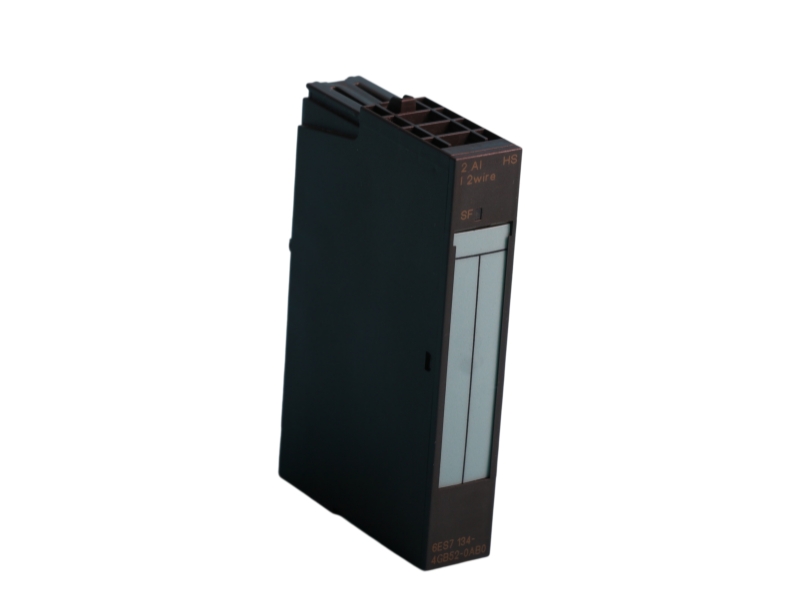

Siemens 6ES7134-4GB52-0AB0 is a SIMATIC ET 200S high-speed analog input electronic module for two-wire current transmitters. The exact Siemens product description specifies two analog inputs, 0–20 mA and 4–20 mA measuring ranges, 15-bit resolution, a 15 mm module width, and an SF LED for group fault indication. It is intended for ET 200S distributed I/O assemblies where the terminal module, power-module arrangement, wiring, parameterization, and replacement suffix match the installed configuration.
| Commercial Item | Status |
|---|---|
| Manufacturer lifecycle | PM410: Product cancellation |
| Lifecycle effective date | Product discontinued since 2023-10-01 |
| Siemens supply note | Spare part |
| Stockoems commercial check | Availability, condition, warranty terms, and dispatch timing are confirmed against the requested quantity. |
| Field | Official Siemens Information |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7134-4GB52-0AB0 |
| Product type | ET 200S electronic analog input module, 2AI High Speed I-2-wire |
| Analog inputs | 2 |
| Current input ranges | 0–20 mA and 4–20 mA |
| Application | Two-wire measuring transducers |
| Resolution | 15 bit in the Siemens product description; up to 16 bit including sign and overrange in the technical data sheet |
| Product-description cycle time | 0.1 ms |
| Cycle time, all channels, maximum | 0.25 ms |
| Nominal load voltage L+ | 24 V DC |
| Load-current consumption, maximum | 225 mA without load |
| Power loss, typical | 2.5 W |
| Address space | 4 bytes per module |
| Input resistance | 106 Ω for 0–20 mA |
| Shielded cable length, maximum | 200 m |
| Isochronous operation | Supported |
| Fault indication | Red SF LED for group fault |
| Dimensions | 15 mm module width |
| Module weight | Approximately 45 g in the product manual |
| Official commercial net weight | 0.055 kg |
| Country of origin | Germany |
Captures two current signals in ET 200S stations where the documented high-speed response is required.
Supports 0–20 mA and 4–20 mA loops from compatible two-wire measuring transducers.
Used for service replacement after confirming the exact order code, terminal module, power group, wiring, and configuration.
It identifies the Siemens SIMATIC ET 200S 2AI High Speed I-2-wire electronic analog input module for current signals.
The official data lists 0–20 mA and 4–20 mA ranges for two-wire measuring transducers.
No. The exact order code is documented for the SIMATIC ET 200S distributed I/O family.
Check the exact suffix, ET 200S station configuration, terminal and power modules, two-wire wiring, measuring range, addresses, parameters, and STEP 7 project.
Siemens lists the exact product as PM410: Product cancellation and identifies it as a spare part.
Send the complete part number, quantity, destination country, and ET 200S configuration details for an availability, condition, and compatibility check.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Email SalesWhatsApp SalesOrder-code verification, condition review, compatibility documentation, protective packing, and international delivery coordination.
For this ET 200S analog input module, the service review starts with the complete Siemens order code and continues through the actual station configuration. We compare the product label, visible module condition, terminal and power-module requirements, channel wiring, current ranges, STEP 7 configuration, lifecycle status, and requested quantity. Commercial commitments are issued only after availability and the requested inspection scope are checked.
| Service Stage | Checks for This Module | Buyer Record |
|---|---|---|
| Identity control | Exact code 6ES7134-4GB52-0AB0, Siemens marking, suffix, and visible label details | Purchase request and label comparison |
| Physical inspection | Housing, terminal contacts, coding area, SF indicator, and handling marks | Inspection notes and available photographs |
| Configuration review | ET 200S interface module, terminal module, power group, 24 V DC supply, two-wire loops, ranges, addresses, and parameters | STEP 7 hardware configuration and station record |
| Packing preparation | Antistatic protection, contact-area protection, cushioning, and outer-carton labeling | Packing and dispatch confirmation |
| Logistics support | Destination, carrier options, tracking, and customary shipping documentation | Shipping route and tracking reference |
| After-sales record | Written warranty terms, received-condition questions, and return-authorization procedure | Traceable service correspondence |
Order code, label evidence, configuration data, and commercial scope are organized before confirmation.
Visible condition, markings, contacts, included items, and requested evidence are reviewed.
Antistatic protection, cushioning, labeling, tracking, and export documents are coordinated.
Send the exact part number, required quantity, destination country, product-label photographs, and the ET 200S station or STEP 7 configuration details relevant to the replacement.
Yes. The review can compare the exact suffix, station family, terminal and power-module arrangement, wiring, ranges, addressing, and project records supplied by the buyer.
No. Availability, condition, quantity, warranty terms, and dispatch timing are checked for each request before a commercial confirmation is issued.
The packing plan can include antistatic protection, contact-area protection, internal cushioning, carton labeling, and shipment tracking.
Share the exact code, quantity, destination, and configuration record for a tailored review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
