SIMATIC ET 200B digital electronic block with sixteen inputs and sixteen outputs for PROFIBUS-DP distributed I/O.

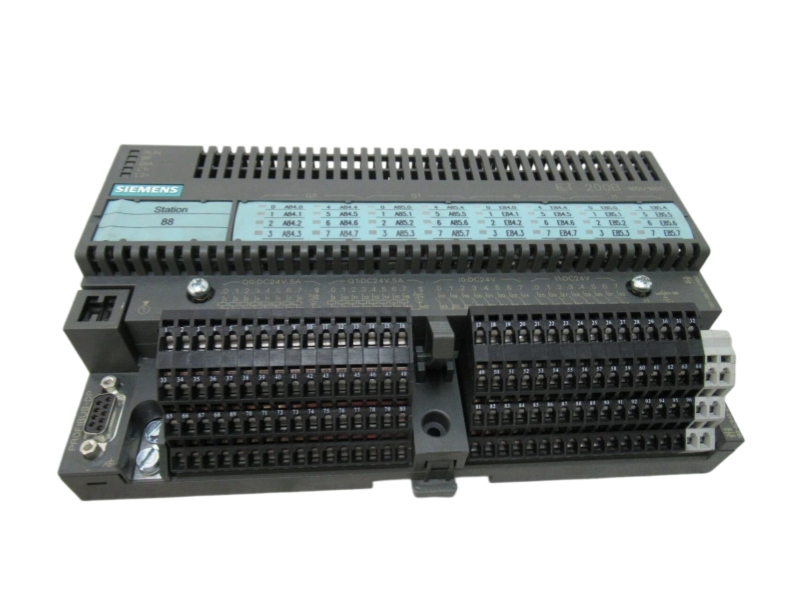

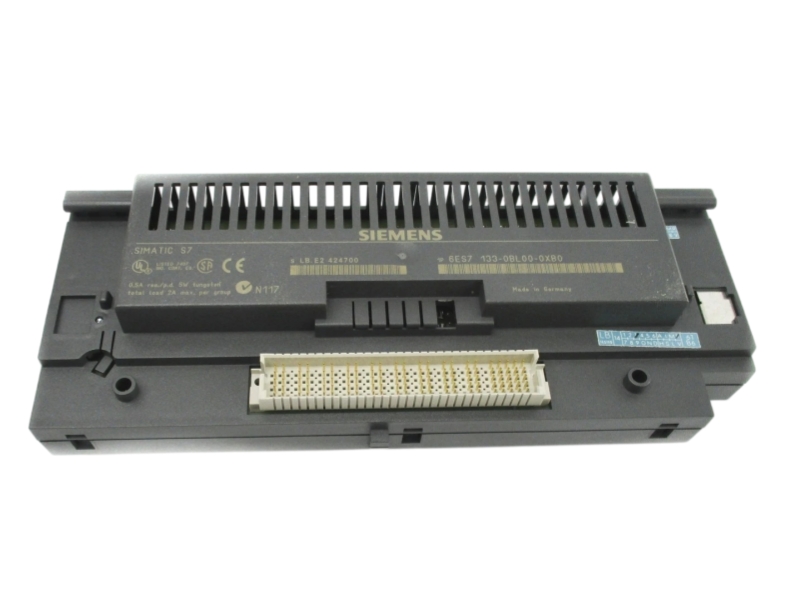

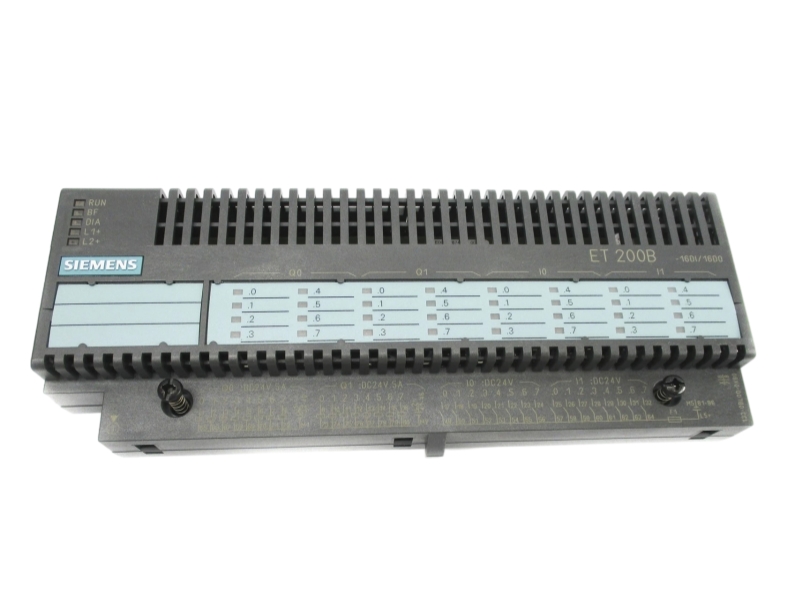

Siemens 6ES7133-0BL00-0XB0 is the ET 200B-16DI/16DO electronic block for PROFIBUS-DP distributed I/O stations. Official Siemens documentation identifies sixteen 24 V DC digital inputs with a 3 ms input delay and sixteen 24 V DC digital outputs rated up to 0.5 A per channel. The outputs are galvanically isolated in groups of eight, while the inputs are not isolated from the internal electronics. The module supports ET 200B diagnostics and several documented terminal blocks. Procurement should verify the complete order code, terminal-block type, supply and load wiring, channel assignment, PROFIBUS parameters, station configuration and readable nameplate evidence before replacement.
| Field | Verified Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Notice: Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Field | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7133-0BL00-0XB0 |
| Product Type | ET 200B-16DI/16DO electronic block |
| Product Family | SIMATIC ET 200B distributed I/O |
| Digital Inputs | 16 |
| Input Rated Voltage | 24 V DC |
| Input Delay | 3 ms |
| Digital Outputs | 16 |
| Output Rated Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Output Isolation | Galvanically isolated in groups of 8 |
| Bus Protocol | PROFIBUS-DP |
| Transfer Rates | 9.6 / 19.2 / 93.75 / 187.5 / 500 / 1500 / 3000 / 6000 / 12000 kbaud |
| Diagnostics | RUN, BF, DIA, load-voltage and channel-status LEDs |
| Compatible Terminal Blocks | TB2/DC, TB2-4/DC, TB4/DC and TB4M/DC |
| Power Loss | Maximum 5.5 W |
| Dimensions | 235 x 130 x 60 mm |
| Weight | Approximately 800 g |
| Country of Origin | GERMANY |
| Application Area | Product-Specific Guidance |
|---|---|
| Control System Fit | SIMATIC ET 200B PROFIBUS-DP distributed I/O stations using the exact electronic block and compatible terminal block. |
| System Role | Provides sixteen digital inputs and sixteen digital outputs for field-signal acquisition and actuator control. |
| Typical Applications | Legacy machine automation, production lines and process auxiliary systems using ET 200B remote I/O. |
| Maintenance Use | Exact-model replacement where channel wiring, terminal block and station configuration must remain controlled. |
| Configuration Importance | PROFIBUS address, baud rate, terminal assignment, supply groups and project hardware configuration must be reviewed. |
The reviewed Siemens ET 200B manual confirms the exact hardware and technical data for 6ES7133-0BL00-0XB0 but does not provide a current lifecycle designation. No lifecycle classification is asserted. Verify the complete MLFB, terminal block, PROFIBUS station configuration and project documentation rather than applying the status of a similar suffix.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Structured verification, inspection, documentation and delivery support for 6ES7133-0BL00-0XB0.
Our workflow begins with exact model and suffix verification against the purchase request and available product label. For this ET 200B electronic block, the team compares the sixteen input and sixteen output channels, terminal-block type, 24 V DC supply groups, PROFIBUS parameters, station configuration and visible diagnostics. Compatibility is reviewed for the installed system and project without promising automatic interchangeability.
| Service Stage | What Stockoems Checks |
|---|---|
| 1. Model and suffix verification | The complete 6ES7133-0BL00-0XB0 order code, manufacturer label and visible hardware details are compared. |
| 2. Condition confirmation | Condition, connectors, housing, included items, seals and visible handling marks are reviewed from available evidence. |
| 3. Technical compatibility review | Sixteen inputs, sixteen 0.5 A outputs, terminal block, 24 V DC supply and load groups, PROFIBUS address, baud rate and project configuration are compared. |
| 4. Product and label photo confirmation | Readable product, nameplate, connector and packaging photographs can be coordinated before shipment. |
| 5. Protective packaging | Antistatic and impact-protective materials are selected to protect the electronic block, terminal interfaces and housing. |
| 6. Worldwide shipping | Available worldwide shipping options are reviewed after destination, quantity and packaging scope are confirmed. |
| 7. Shipment tracking | Tracking details and shipment records are provided for the agreed logistics method. |
| 8. Customs documentation | Commercial invoices, packing information and available customs documentation are prepared for the shipment. |
| 9. Written warranty terms | The applicable one-year commercial warranty scope is documented before order completion. |
| 10. Return authorization | Return conditions and authorization steps are explained in writing before approval. |
| 11. After-sales response | Questions about received condition, documentation and installation evidence are handled through a traceable service channel. |
The service team coordinates label review, technical-document comparison, connector inspection, packaging preparation, logistics communication and after-sales records. We can help procurement teams compare the requested order code with available nameplate evidence and verify that the quoted condition and included items are clearly described. Engineers should supply the ET 200B station layout, terminal-block designation, channel and wiring records, PROFIBUS address and transfer rate, project backup and load details where compatibility review is required. We do not promise unverified inventory quantities or fixed delivery dates. Commercial timing is confirmed only after the exact product, required quantity, destination and inspection scope have been reviewed.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
