Product Overview
Siemens 6ES7132-4BF50-0AA0 is a SIMATIC ET 200S electronics module with eight transistor digital outputs in a sink-output configuration. Each output is rated for 24 V DC loads up to 0.5 A, while the module occupies 15 mm of station width and one byte of output address space. The module receives load voltage from the associated ET 200S power module and provides status indication for its digital outputs. Siemens now identifies the exact MLFB as a spare part under product cancellation. Procurement should verify the complete suffix, sink-output wiring, terminal module, power-module arrangement and installed ET 200S configuration.
Commercial Status
| Product Condition |
Original new |
| Availability |
In stock |
| Official Life Cycle |
PM410: Product cancellation; product cancelled since 2023-10-01 |
| Warranty |
With 1 year warranty |
Condition, availability and warranty are Stockoems commercial terms and are not manufacturer commitments.
Verified Technical Data
| Manufacturer |
Siemens |
| Complete Part Number |
6ES7132-4BF50-0AA0 |
| Product Type |
SIMATIC ET 200S electronics output module |
| Output Configuration |
8 DO sink output |
| Output Type |
Transistor |
| Rated Load Voltage |
24 V DC |
| Rated Output Current |
0.5 A per channel |
| Address Space |
1 byte output |
| Short-Circuit Protection |
Yes |
| Typical Power Loss |
1.5 W |
| Module Width |
15 mm |
| Dimensions (W × H × D) |
15 × 81 × 52 mm |
| Net Weight |
0.042 kg |
| Official Country of Origin |
Germany |
Product Photo Evidence

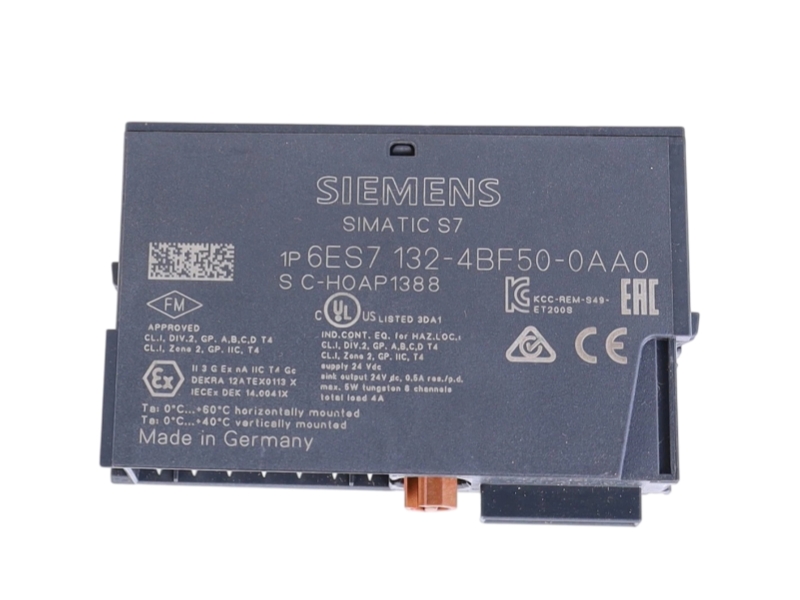

Model Identity
Check that the label clearly shows 6ES7132-4BF50-0AA0 and the correct manufacturer identity.

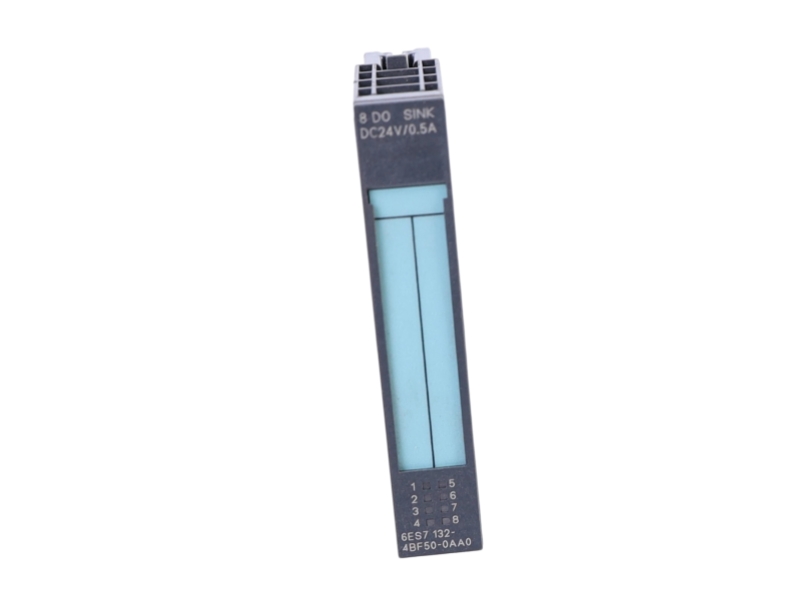

Configuration Evidence
Confirm channel count, voltage and connection format match the requested configuration.

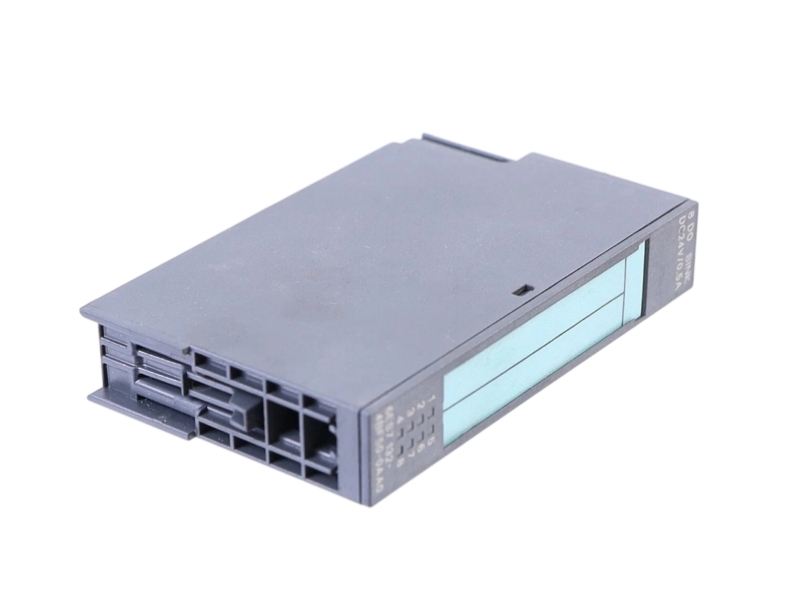

Housing and Terminals
Inspect the housing, connector area and terminals for completeness and condition.
System Fit and Applications
- Switching 24 V DC field loads from ET 200S stations
- Machine actuator and solenoid control using sink outputs
- Maintenance of installed SIMATIC ET 200S distributed I/O
- Spare-part replacement in legacy automation panels
Compatibility and Procurement Checks
| Check Point |
What to Verify |
| Output Polarity |
The field circuit requires sink-output transistor switching. |
| Load Rating |
Each connected load remains within the 24 V DC/0.5 A rating. |
| Station Hardware |
The terminal module and power module match the installed ET 200S configuration. |
| Lifecycle Planning |
Spare-part availability and future migration planning reflect product cancellation status. |
Lifecycle Note
Siemens identifies 6ES7132-4BF50-0AA0 as PM410: Product cancellation, effective 2023-10-01, and lists it as available only as a spare part.
Frequently Asked Questions
How many outputs are provided?
The module provides eight transistor digital outputs.
What load rating applies?
The verified rating is 24 V DC with up to 0.5 A per output.
Is this a source-output module?
No. The exact 6ES7132-4BF50-0AA0 configuration is a sink-output module.
Is 6ES7132-4BF50-0AA0 discontinued?
Siemens uses the wording PM410: Product cancellation and states that the product was cancelled on 2023-10-01.
What must be checked before replacement?
Verify the complete suffix, sink wiring, terminal module, power-module arrangement, address allocation and ET 200S station configuration.
