Product Overview
Siemens 6ES7131-6BF01-0AA0 is a SIMATIC ET 200SP Basic digital input module with eight 24 V DC sink inputs for PNP, P-reading field devices. It fits BaseUnit type A0 and provides a parameterizable input delay from 0.05 to 20 ms for adapting signal filtering to the application. The module follows IEC 61131 type 2 input characteristics and uses color code CC01. It supports I&M0 to I&M3 identification data and is integrated in STEP 7 TIA Portal from version V14. Procurement should verify the complete MLFB, BaseUnit wiring variant, sensor logic, voltage range and engineering environment.
Commercial Status
| Product Condition |
Original new |
| Availability |
In stock |
| Official Life Cycle |
PM300: Active Product |
| Warranty |
With 1 year warranty |
Condition, availability and warranty are Stockoems commercial terms and are not manufacturer commitments.
Verified Technical Data
| Manufacturer |
Siemens |
| Complete Part Number |
6ES7131-6BF01-0AA0 |
| Product Type |
SIMATIC ET 200SP digital input module |
| Type Designation |
DI 8x24VDC BA |
| Number of Digital Inputs |
8 |
| Input Type |
Sink input, PNP, P-reading |
| Rated Input Voltage |
24 V DC |
| Permissible Voltage Range |
19.2–28.8 V DC |
| Input Delay |
0.05–20 ms, parameterizable |
| Compatible BaseUnit |
BU type A0 |
| Color Code |
CC01 |
| Engineering Integration |
STEP 7 TIA Portal V14 or later |
| Address Space |
1 byte input |
| Dimensions (W × H × D) |
15 × 73 × 58 mm |
Product Photo Evidence

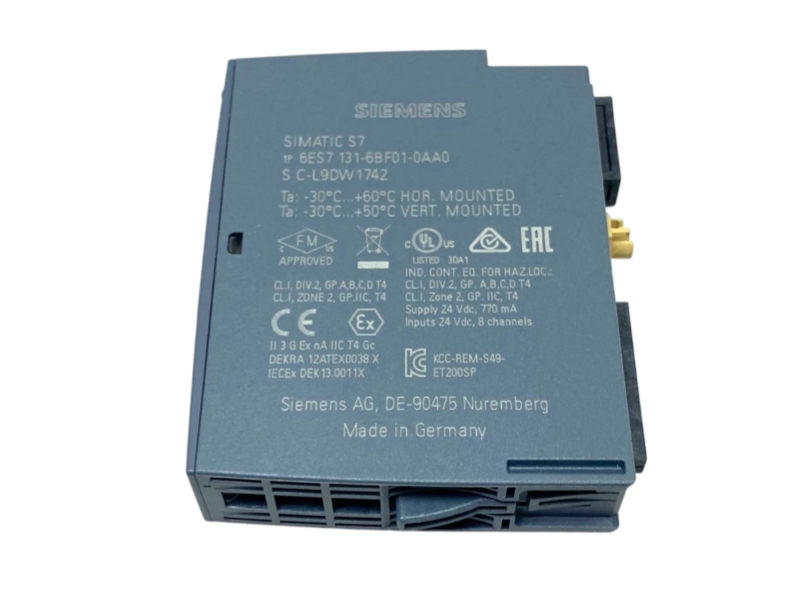

Model Identity
Check that the label clearly shows 6ES7131-6BF01-0AA0 and the correct manufacturer identity.

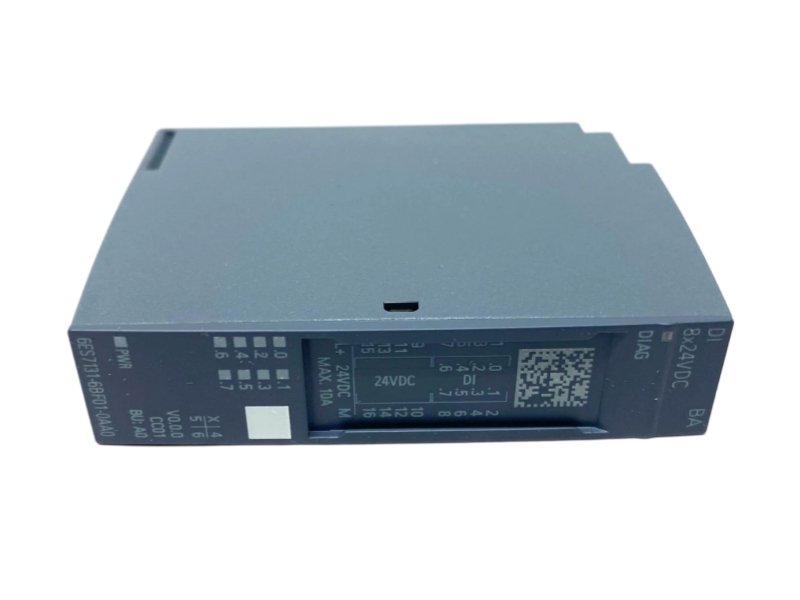

Configuration Evidence
Confirm channel count, voltage and connection format match the requested configuration.

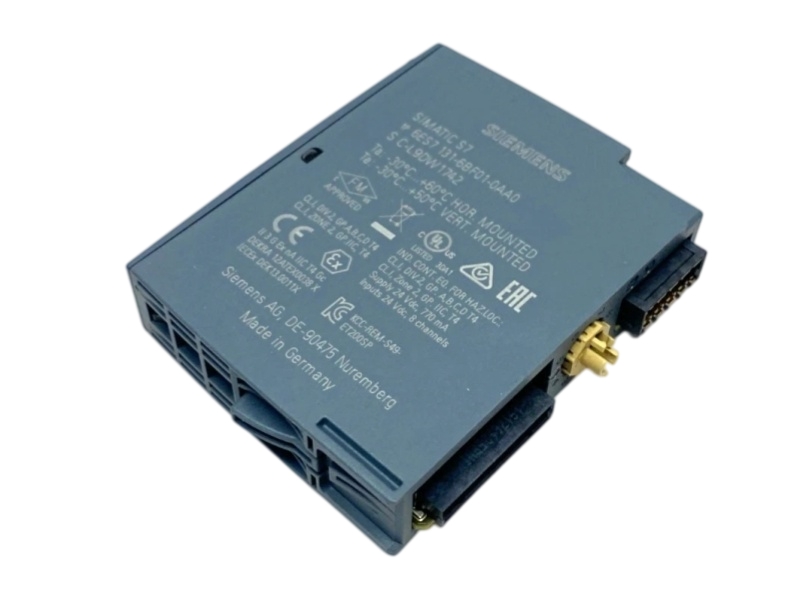

Housing and Terminals
Inspect the housing, connector area and terminals for completeness and condition.
System Fit and Applications
- Acquisition of proximity switch and limit switch signals
- Pushbutton and selector-switch input processing
- Distributed machine I/O in SIMATIC ET 200SP stations
- Panel retrofit where a Basic eight-channel PNP input module is specified
Compatibility and Procurement Checks
| Check Point |
What to Verify |
| BaseUnit |
The station uses a compatible BU type A0 connection variant. |
| Sensor Logic |
Field devices provide 24 V DC PNP signals for sink inputs. |
| Engineering |
The project software and device configuration support the exact MLFB. |
| Wiring |
One-, two-, three- or four-wire sensor connections match the selected BaseUnit arrangement. |
Lifecycle Note
Siemens lists the current SIMATIC ET 200SP Basic digital input module family as PM300: Active Product. Use the complete MLFB when checking project hardware and ordering data.
Frequently Asked Questions
How many digital inputs are provided?
The module provides eight parameterizable 24 V DC digital inputs.
What sensor logic is supported?
It is a sink-input module for PNP, P-reading field signals.
Which BaseUnit is required?
Siemens specifies BaseUnit type A0 for this module.
What is the configurable input delay?
The verified delay range is 0.05 to 20 ms.
What should be checked before replacing the module?
Confirm the full MLFB, sensor logic, BaseUnit wiring, TIA Portal configuration and installed hardware revision.
Request Availability and Compatibility Review
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
