Two-channel High Feature digital output control for compatible SIMATIC ET 200S stations.

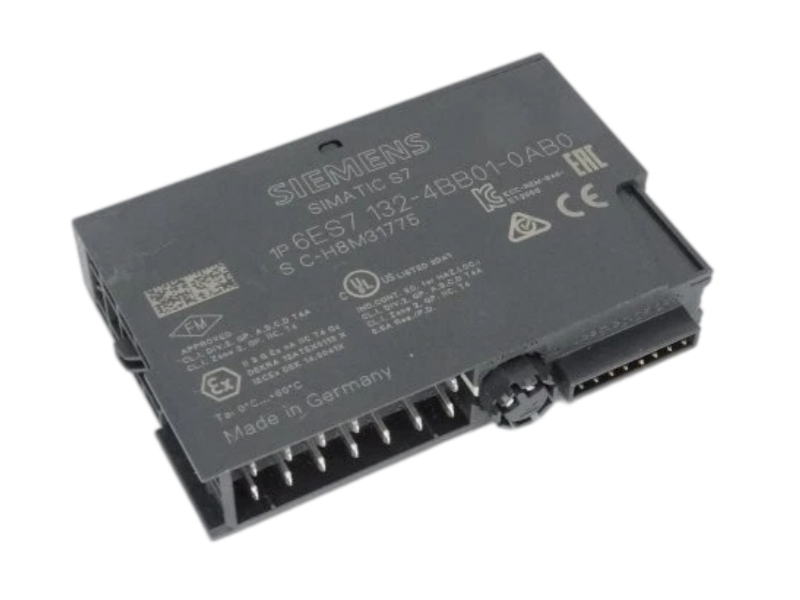

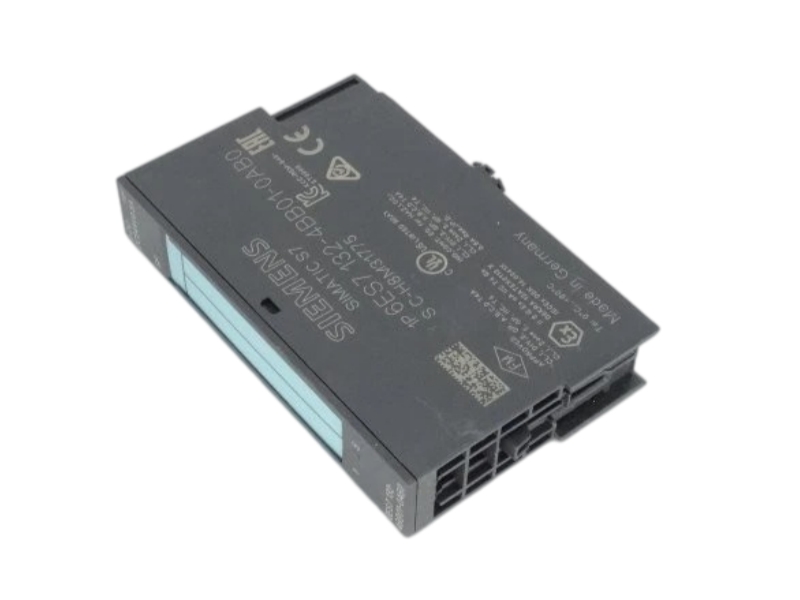

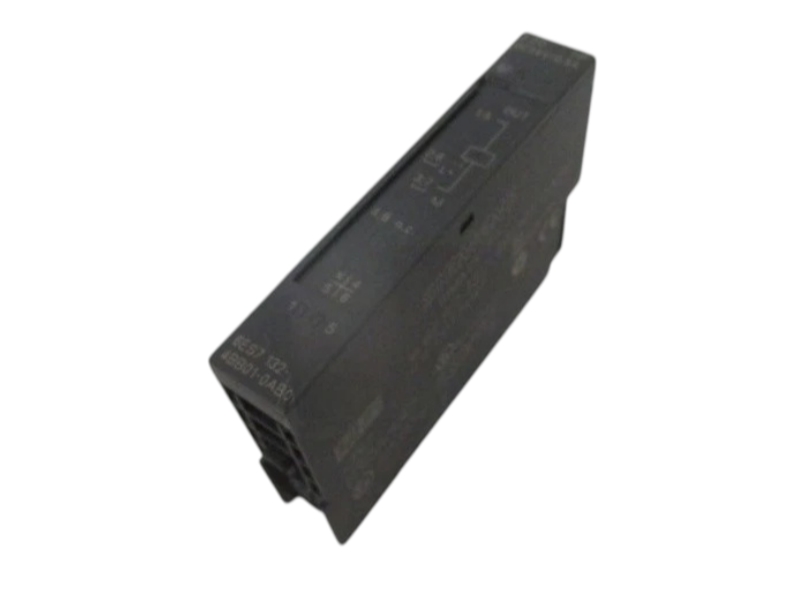

The Siemens 6ES7132-4BB01-0AB0 is a SIMATIC ET 200S digital electronic output module with two 24 V DC channels rated at 0.5 A per output. Siemens documentation identifies the module as a High Feature, current-sourcing output design with short-circuit protection and diagnostics for wire break and short circuit. Its 15 mm module width supports compact distributed I/O assembly. Typical loads include solenoid valves, DC contactors and indicator lamps within the documented electrical limits. Before replacement, compare the complete article number, terminal module arrangement, load characteristics, supply grouping, diagnostics and hardware configuration of the existing ET 200S station.
| Item | Stockoems Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
Condition, availability and warranty are Stockoems commercial terms and are not manufacturer commitments.
| Parameter | Verified Value |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7132-4BB01-0AB0 |
| Product Type | ET 200S digital electronic output module |
| Output Channels | 2 digital outputs |
| Rated Load Voltage | 24 V DC |
| Rated Output Current | 0.5 A per output |
| Output Design | Current-sourcing output |
| Feature Class | High Feature |
| Module Width | 15 mm |
| Diagnostics | Wire break and short circuit |
| Protection | Short-circuit protection |
| Isochronous Operation | Supported |
Two current-sourcing channels switch compatible 24 V DC field loads from the ET 200S station.
The High Feature module reports wire-break and short-circuit conditions supported by the documented configuration.
The electronic module operates within a compatible ET 200S terminal-module and power-group arrangement.
For order review, provide clear photographs of the complete front, side label, connector area and installed terminal-module arrangement. Confirm that 6ES7132-4BB01-0AB0 and the 2DO 24 V DC 0.5 A markings are legible.
It provides two digital output channels.
The module is specified for 24 V DC loads with 0.5 A rated output current per channel.
Siemens documents enhanced functions including wire-break and short-circuit diagnostics and support for isochronous operation.
Documented examples include solenoid valves, DC contactors and indicator lamps within the module limits.
Verify the exact suffix, terminal module, power group, load type, diagnostics, project configuration and label condition.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured order review for Siemens 6ES7132-4BB01-0AB0, from model verification through documented after-sales communication.
| Stage | Service Check | Purpose |
|---|---|---|
| 1 | Model and suffix verification | Compare the complete Siemens article number and every suffix character. |
| 2 | Condition confirmation | Confirm the quoted condition and visible product state. |
| 3 | Technical compatibility review | Review channel count, 24 V DC load requirements, terminal module, power group and project configuration. |
| 4 | Product and label photo confirmation | Use clear visual evidence before shipment approval. |
| 5 | Protective packaging | Protect terminals, controls and enclosure surfaces for transit. |
| 6 | Worldwide shipping / Shipment tracking | Coordinate the selected route and provide shipment tracking after dispatch. |
| 7 | Customs documentation | Prepare shipment documents according to the confirmed order and destination. |
| 8 | Written warranty terms | Record the applicable Stockoems warranty terms with the transaction. |
| 9 | Return authorization process | Review evidence and provide an authorization path when a return is eligible. |
| 10 | After-sales response | Maintain traceable communication for order and product questions. |
The order review checks the visible model, suffix, label markings, terminals or interfaces, and general product condition.
Protective materials are selected to reduce movement and shield vulnerable controls and terminals.
Shipment coordination covers routing, tracking and the confirmed destination requirements without promising an unverified delivery date.
Written records support warranty questions, return review and responsive post-delivery communication.
Ask the supplier to preserve the complete manufacturer code, provide clear product and label photos, state condition and warranty terms in writing, and explain how compatibility is reviewed. A qualified supplier should separate manufacturer facts from its own commercial terms, keep order communication traceable, describe packing and logistics procedures, and provide a defined return authorization process.
Risk signals include missing suffixes, specifications copied from a similar model, unclear condition, refusal to provide label evidence, unsupported lifecycle claims, vague warranty language, pressure to pay before identity checks, and promises of exact stock quantities or delivery dates without verification.
Share the complete code, quantity, destination and clear label photographs for a structured commercial and compatibility review.
