Product Overview

Siemens 6ES5 541-8AA11 is the CP 541 communications processor documented for connecting SIMATIC S5 controllers to SINEC L2. The module supports SEND/RECEIVE communication, FDL multicast functions and integration of an S5 station as a PROFIBUS DP slave. Its configuration data is stored in internal EEPROM, and the unit provides one PLC interface and one PROFIBUS interface. Procurement should verify the complete spaced order code, module revision, existing S5 controller, bus transfer rate, cable, connector, configuration records and network role before treating the module as a replacement.

Commercial Status

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Verified Technical Data

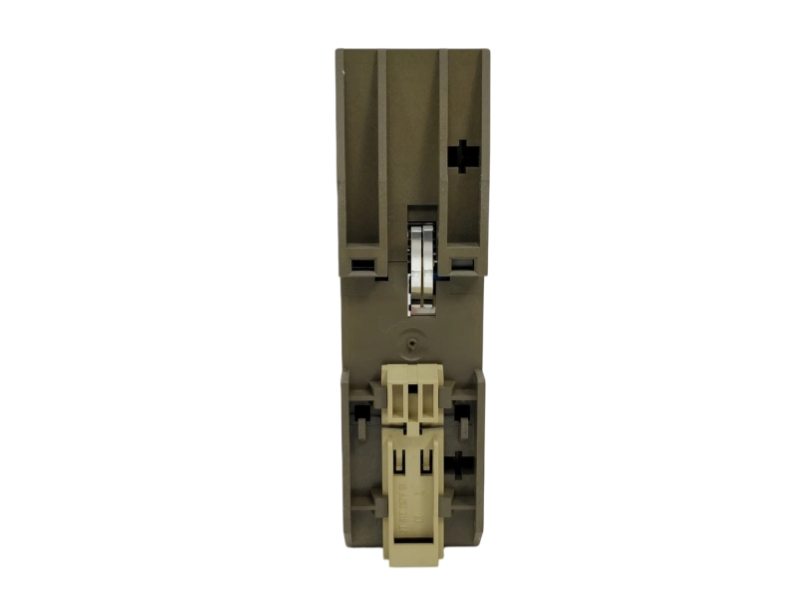

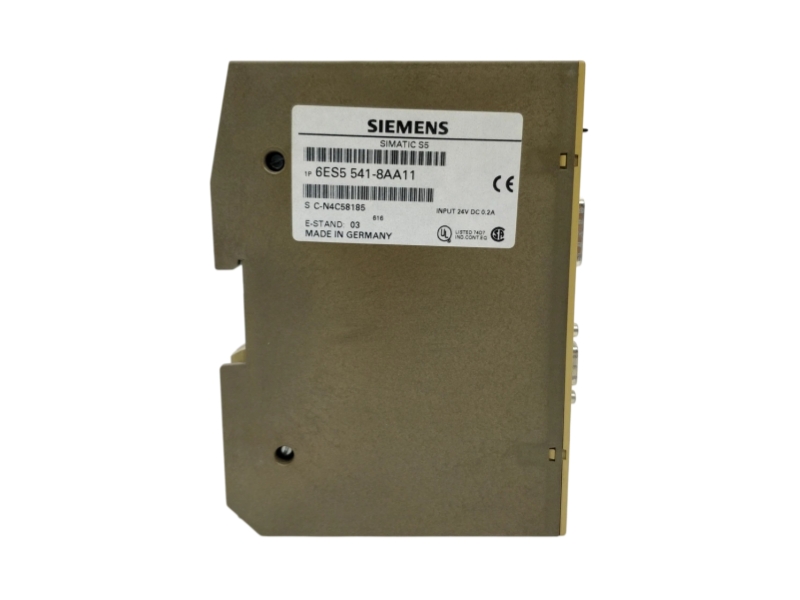

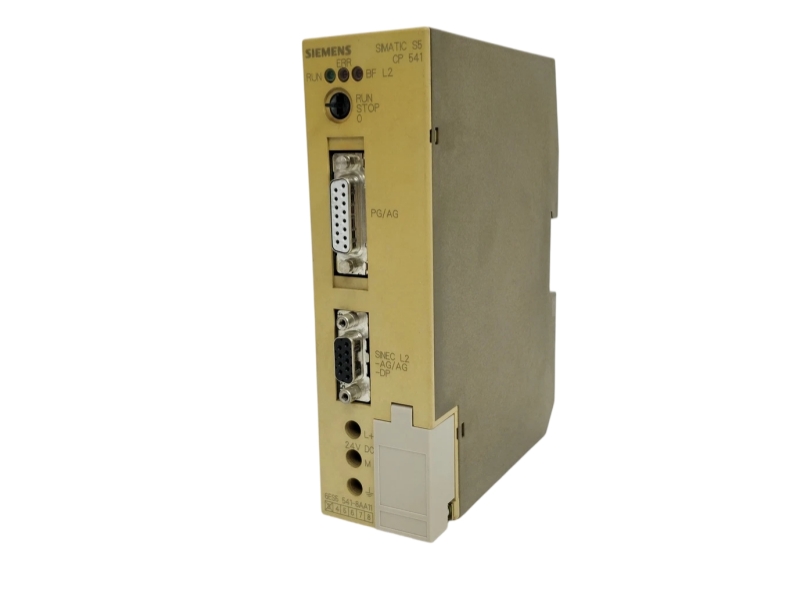

Product Photo Evidence













System Fit and Applications

Compatibility and Procurement Checks

Before purchasing or replacing this exact item, review the configuration evidence that affects installation and system operation:

• Exact spaced order code 6ES5 541-8AA11 and revision level
• SIMATIC S5 controller type and installed rack position
• Required SINEC L2 or PROFIBUS DP operating role
• Bus transfer rate and station addressing
• PLC and PROFIBUS interfaces, cables and connectors
• EEPROM configuration and existing communication parameters
• 24 V DC supply and wiring
• Module, nameplate, connector and packaging photographs

Lifecycle Note

A current official Siemens lifecycle designation for the exact order code 6ES5 541-8AA11 was not available in the retrieved manufacturer documentation. No lifecycle status is asserted here. The complete spaced order code, revision, S5 controller, bus role, configuration data, interfaces and cabling should be verified before replacement.
