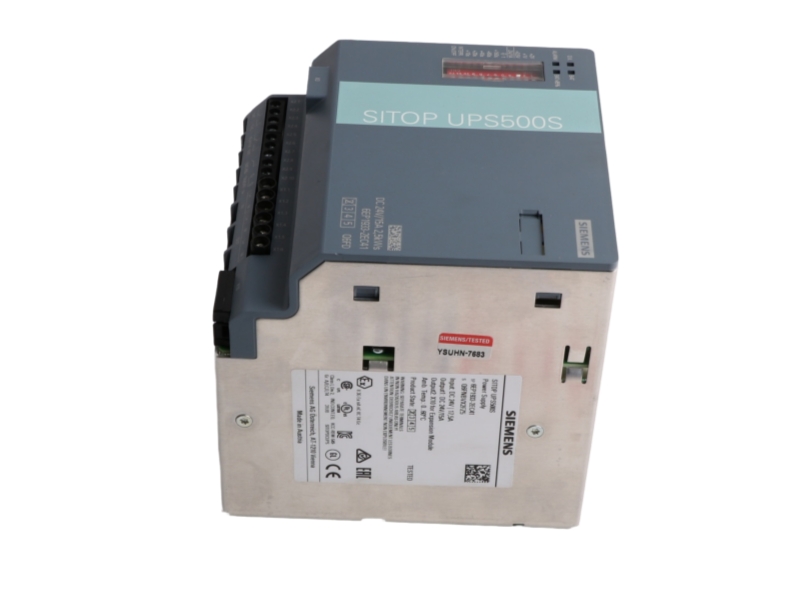

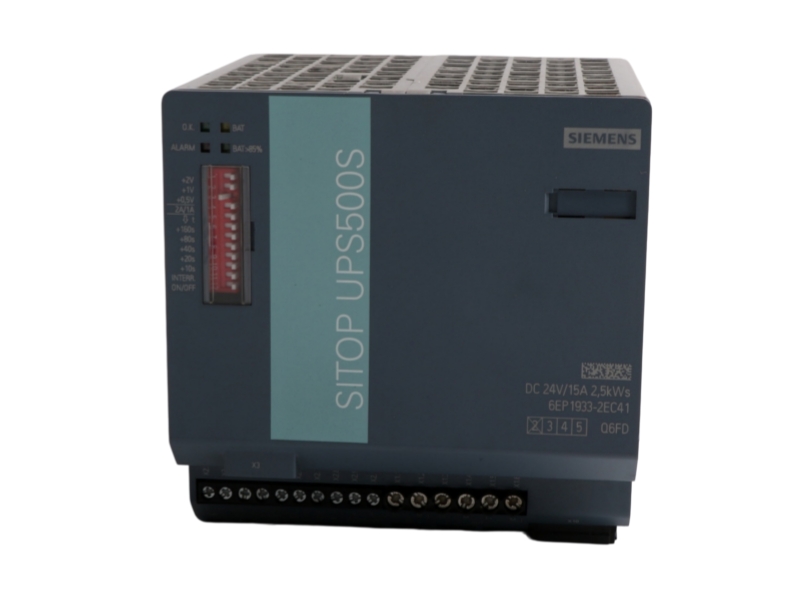

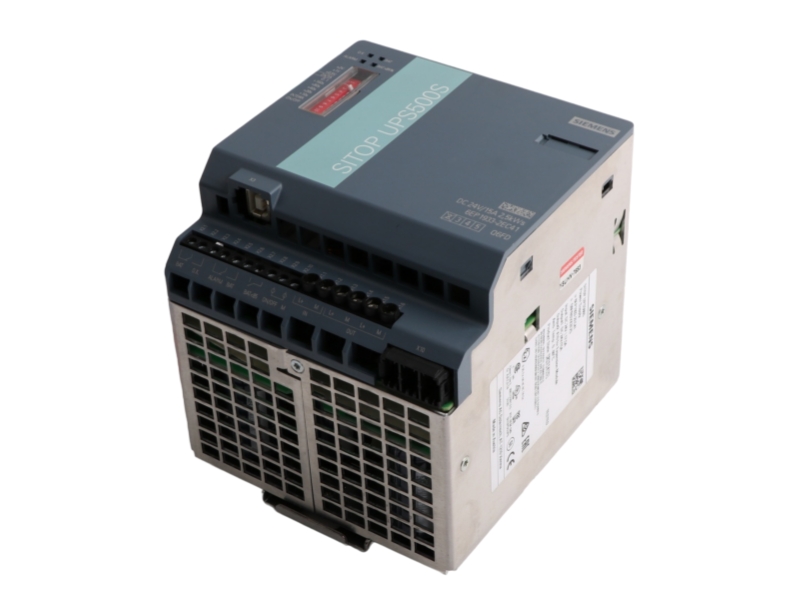

Siemens 6EP1933-2EC41 SITOP UPS500S DC UPS

Siemens 6EP1933-2EC41 capacitor-based 24 V backup unit

Inquiry now

SITOP UPS500S · CAPACITOR ENERGY STORAGE

Siemens 6EP1933-2EC41 Maintenance-Free DC UPS

Siemens 6EP1933-2EC41 is a SITOP UPS500S maintenance-free DC UPS based on capacitor energy storage. The basic unit provides 2.5 kWs stored energy, accepts a 24 V DC input and supplies 24 V DC at up to 15 A. A USB interface supports connection to a PC, while front indicators and signaling contacts communicate operating, buffer and energy-storage states. The IP20 enclosure snaps onto a DIN rail for control-cabinet installation. Siemens classifies this exact article number as PM300: Active Product. System selection should verify load current, required buffer duration, supply range, USB requirements, mounting space and downstream equipment behavior during voltage interruption.

Commercial Status

Original newIn stockPM300: Active ProductWith 1 year warranty

Condition, availability and warranty are Stockoems commercial terms, not Siemens manufacturer commitments.

Key Product Information

Manufacturer
Siemens

Complete Part Number
6EP1933-2EC41

Product Type
Maintenance-free DC UPS

Series
SITOP UPS500S

Product Family
DC UPS with capacitors

Stored Energy
2.5 kWs

Input
24 V DC

Output
24 V DC / 15 A

Interface
USB

Protection Rating
IP20

Mounting
DIN rail

Dimensions
120 × 125 × 125 mm

Official Lifecycle
PM300: Active Product

Shipping
Worldwide shipping coordinated after order review

Power Continuity Architecture

01 · 24 V DC Supply

The input supply feeds the UPS basic unit during normal operation.

02 · Capacitor Storage

A maintenance-free 2.5 kWs capacitor store bridges voltage interruptions.

03 · Buffered Load

The unit supplies 24 V DC at up to 15 A to connected control loads.

USB communication, LEDs and signaling contacts report normal operation, buffer mode and energy-storage status.

Typical Applications

PLC and controller supply continuity
Industrial PC controlled shutdown through USB
Process instrumentation during short voltage dips
Machine control circuits requiring short-term buffering

Compatibility and Revision Notice

Match the complete order number 6EP1933-2EC41 and verify the 2.5 kWs energy rating, 15 A output, USB requirement, supply range, required buffer duration, wiring and DIN-rail space. Do not substitute the 5 kWs 6EP1933-2EC51 variant without a system-level review.

Frequently Asked Questions

What is Siemens 6EP1933-2EC41?

It is a SITOP UPS500S maintenance-free DC UPS basic unit using capacitor energy storage.

What are its input and output ratings?

The unit accepts 24 V DC input and provides 24 V DC output at up to 15 A.

What storage capacity and interface are included?

This exact article provides 2.5 kWs stored energy and a USB interface.

Does it use battery energy storage?

No. The UPS500S design uses maintenance-free capacitor energy storage.

Is 6EP1933-2EC41 discontinued?

No. Siemens classifies the exact article number as PM300: Active Product.

Request a Compatibility and Supply Check

Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.

Email: sales6@apterpower.com
WhatsApp: +86 18159889985

Email Sales WhatsApp Sales

Verification · Documentation · Delivery

Procurement Support for Siemens 6EP1933-2EC41

A structured service path for buyers and engineers sourcing the SITOP UPS500S DC UPS.

Three-Stage Review Desk

Stockoems office team reviewing Siemens 6EP1933-2EC41 requirements — **01 · Requirement Review**
Our team records the exact model, suffix, required quantity, destination and application context.

Industrial automation specialists discussing 6EP1933-2EC41 procurement details — **02 · Compatibility Discussion**
Engineers compare voltage, output current, buffer requirements, USB communication and cabinet installation needs.

Stockoems staff coordinating documents and worldwide shipping for 6EP1933-2EC41 — **03 · Order Coordination**
Documentation, protective packaging, carrier selection and after-sales communication are coordinated around the reviewed order.

Procurement Check Gates

Model and suffix verification
We compare the complete order number 6EP1933-2EC41 with the requested item and available label evidence.

Condition confirmation
Commercial condition is stated in writing before order acceptance.

Technical compatibility review
The voltage, output current, buffer requirements, USB communication and cabinet installation needs are reviewed with supplied system details.

Product and label photo confirmation
Available product, packaging and rating-label images can be checked against the approved order details.

Protective packaging
Handling materials are selected to protect the industrial unit during transport.

Worldwide shipping
Carrier options are coordinated according to destination, order details and applicable transport requirements.

Shipment tracking
Tracking details are shared after carrier collection when tracking is available.

Customs documentation
Commercial shipping documents are prepared from the confirmed order information.

Written warranty terms
Scope and duration are recorded as Stockoems commercial terms.

Return authorization process
Returns require written review and authorization under the agreed commercial terms.

After-sales response
Order records support clear communication about product identity, shipping and warranty questions.

Quality and Logistics Route

Requirement recordLabel verificationCondition reviewProtective packingDocument preparationTracking and support

This process helps purchasing teams maintain a traceable handoff from model review through shipment and after-sales communication. Delivery timing and exact inventory quantity are provided only after order-specific verification.

Industrial Automation Supplier Qualification FAQ

How should buyers identify a qualified industrial automation supplier?

Look for exact part-number discipline, written commercial terms, traceable product and label evidence, compatibility questions, clear return procedures and responsive after-sales communication.

What should engineers verify before approving this product?

Verify the complete suffix, input and output requirements, 15 A load limit, 2.5 kWs stored energy, required buffer duration, USB needs, wiring and DIN-rail space.

What are common supplier risk signals?

Warning signs include altered suffixes, reused photos without label evidence, vague condition language, unsupported technical claims, unrealistic lead-time promises and missing written warranty or return terms.

Why are product and label photos useful?

They help compare the offered item, order number, visible condition and packaging against the purchasing record before shipment.

Coordinate Your Requirement

Send the exact model, quantity, destination and product label photos for a structured supply and compatibility review.

Email: sales6@apterpower.com
WhatsApp: +86 18159889985

Email Sales WhatsApp Sales
