Load Margin
Calculate continuous demand, startup current and future expansion before assigning the 20 A supply to a DC distribution circuit.

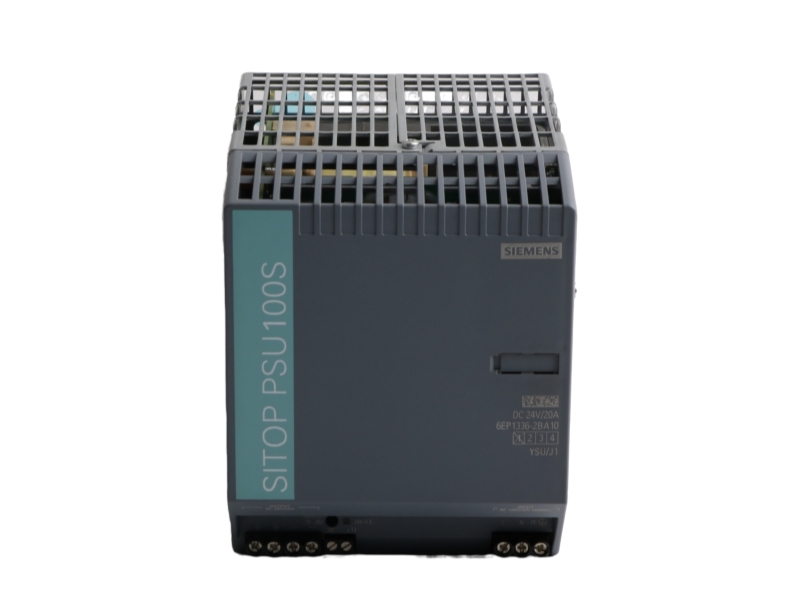

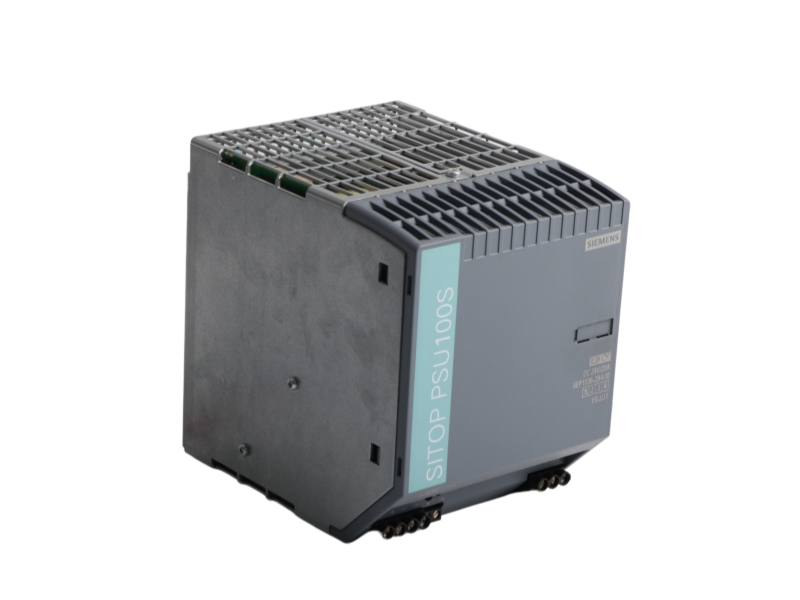

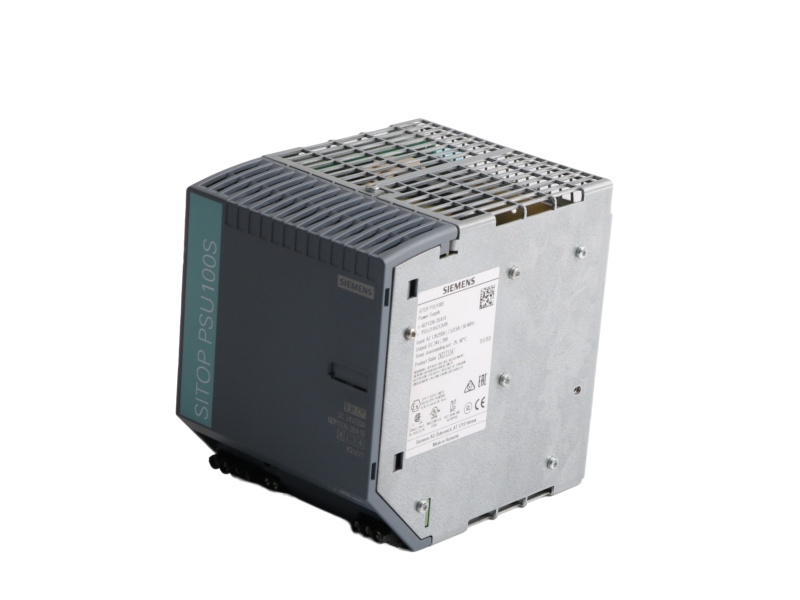

The Siemens 6EP1336-2BA10 is a SITOP PSU100S stabilized power supply for single-phase industrial AC networks. Siemens specifies automatic range selection for 120/230 V AC input and a regulated 24 V DC output rated at 20 A. The output is adjustable from 24 to 28 V, with up to 480 W at the upper setting. Its IP20 enclosure is intended for protected installation. Confirm input range, load demand, protective device, cabinet ventilation, wiring and mounting requirements before procurement. Stockoems can review supplied label photos and application details before order confirmation and coordinate worldwide shipping without promising an unverified delivery date.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments.
Calculate continuous demand, startup current and future expansion before assigning the 20 A supply to a DC distribution circuit.
Match the installed AC network, feeder protection and conductor sizing to the selected input range and site electrical rules.
Plan a protected enclosure, ventilation, mounting clearance and service access appropriate for an IP20 industrial power supply.
A green 24 V OK indication and a normally open relay contact support local checks and engineered remote status monitoring.
| Data Item | Confirmed Value |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6EP1336-2BA10 |
| Product Type | SITOP PSU100S 20 A Stabilized Power Supply |
| Product Family | SITOP PSU100S, 1-phase 24 V DC |
| Input Network | 1-phase AC |
| Rated Input | 120 / 230 V AC |
| Input Ranges | 85–132 V AC; 176–264 V AC |
| Line Frequency | 47–63 Hz |
| Rated Output | 24 V DC / 20 A |
| Adjustable Output | 24–28 V DC; maximum 480 W |
| Mains Buffering | Minimum 20 ms at rated output |
| Degree of Protection | IP20 |
| Dimensions | 115 × 145 × 150 mm |
| Net Weight | 2.4 kg |
| Official Life Cycle | PM300: Active Product |
| Country of Origin | ROMANIA |
Validated single-phase 120 or 230 V AC enters through the protected feeder.
The power supply converts and regulates the incoming energy.
Rated 20 A output feeds the engineered DC distribution circuit.
Controllers, I/O, communication devices and other validated loads receive stabilized power.
Confirm the complete order code 6EP1336-2BA10, single-phase input range, feeder protection, calculated continuous and peak load, output adjustment, conductor size, cabinet ventilation, mounting clearance and ambient temperature. Another SITOP unit with a similar appearance is not automatically interchangeable. A visually similar product or another family member is not automatically interchangeable.
It is a SITOP PSU100S stabilized single-phase power supply rated for 24 V DC and 20 A output.
Siemens specifies automatic range selection for 120/230 V AC, with input ranges of 85–132 V and 176–264 V AC.
Yes. The official data sheet specifies an adjustable range from 24 to 28 V DC, with maximum power limited to 480 W.
Siemens specifies IP20, so installation requires an appropriate protected enclosure and environment.
No. Siemens currently identifies this exact order code as PM300: Active Product.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Stockoems organizes identification, electrical review, condition evidence, packaging, documentation and after-sales communication as one traceable route. No unverified lead time or inventory quantity is promised.
Visible identifiers, condition evidence and accessories are organized for review.
Materials and internal support are selected to protect the power supply during international transport.
Shipping and customs documents use the confirmed order and destination information.
Written warranty scope and exclusions are communicated as Stockoems commercial terms.
A return authorization process defines evidence, review and handling steps.
After-sales questions remain linked to the original order record.
Require the complete order code in writing, current product and label evidence, clear condition terminology, written warranty coverage, shipment documentation and a defined return process.
Match the quotation, invoice and product label to the same suffix. Confirm condition, included items, destination, payment recipient, shipping method and customs paperwork.
Provide the input system, load calculation, output voltage, peak-current demand, protection, wiring, cabinet temperature and mounting arrangement.
Vague suffixes, copied specifications, fabricated stock quantities, unrealistic delivery claims, missing label evidence and unclear warranty or return terms are significant warning signs.
No. Compatibility depends on exact identity, ratings, installation constraints and the engineered load requirement.
Send the complete part number, quantity, destination and label photos so our team can coordinate verification, compatibility review, documentation and shipping options.
