Regulated load power for SIMATIC S7-1500 and ET 200MP installations.

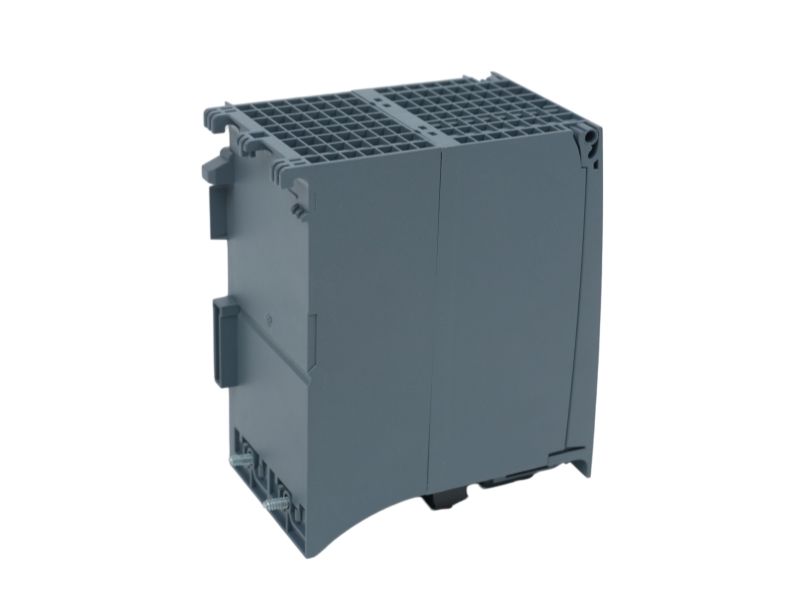

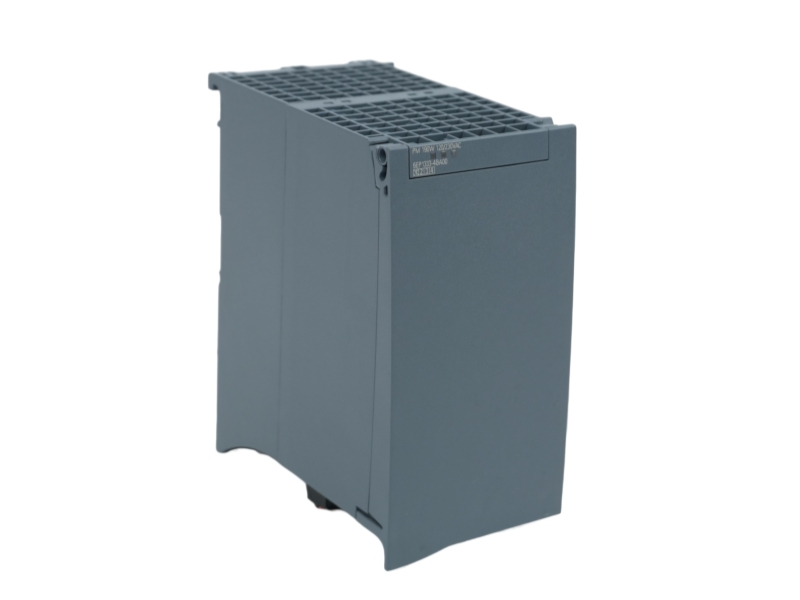

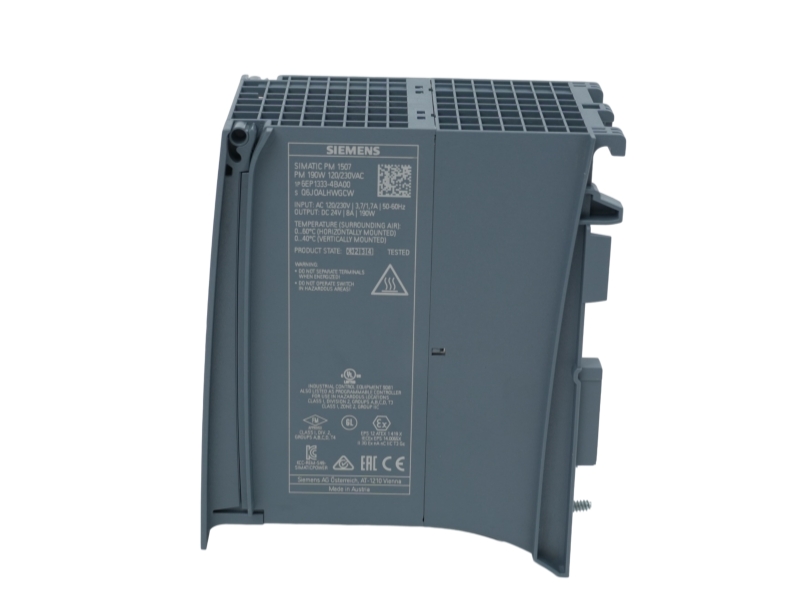

The Siemens 6EP1333-4BA00 is a SIMATIC PM 1507 stabilized load power supply for SIMATIC S7-1500 and ET 200MP applications. It accepts single-phase 120/230 V AC through automatic range selection and supplies controlled, isolated 24 V DC at 8 A and 192 W. Siemens specifies 90 percent efficiency, minimum 20 ms mains buffering and electronic short-circuit shutdown with automatic restart. The module mounts on an S7-1500 rail and uses removable input and output terminals. Review input range, mounting orientation, ventilation clearance, conductor sizing and downstream load demand before installation.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments.
85 to 132 V AC or 170 to 264 V AC, 45 to 65 Hz, with automatic range selection.
24 V DC at 0 to 8 A, with controlled voltage behavior and 192 W rated output.
Minimum 20 ms mains buffering at the stated input condition; maximum residual ripple is 50 mV.
Short-circuit-proof output with electronic shutdown, automatic restart and 8.4 to 9.6 A current limitation.
| Parameter | Confirmed value | Engineering relevance |
|---|---|---|
| Manufacturer | Siemens | SIMATIC system component |
| Complete part number | 6EP1333-4BA00 | Verify the complete suffix before ordering |
| Product type | SIMATIC PM 1507 stabilized load power supply | For S7-1500 and ET 200MP applications |
| Input | 1-phase AC, automatic range selection | Check the site supply range |
| Input voltage range | 85–132 V AC / 170–264 V AC | 120/230 V AC nominal operation |
| Line frequency | 45–65 Hz | Confirm local mains conditions |
| Output | 24 V DC, 8 A, 192 W | Size connected loads and conductors |
| Efficiency | 90 percent | Relevant to cabinet thermal planning |
| Mains buffering | Minimum 20 ms at 93/187 V input | Supports brief input interruptions |
| Ripple / voltage peak | Max. 50 mV / 150 mV | Controlled DC output quality |
| Parallel operation | Up to 2 units | Observe Siemens connection guidance |
| Protection | IP20; short-circuit-proof output | Install inside a suitable enclosure |
| Dimensions W × H × D | 75 × 147 × 129 mm | Confirm cabinet space and clearance |
| Net weight | 0.74 kg | Useful for panel planning |
| Mounting | S7-1500 mounting rail | Not specified for DIN rail or wall mounting |
| Official lifecycle | PM300: Active Product | Current Siemens lifecycle wording |
Use the S7-1500 mounting rail and maintain 40 mm clearance above and below for cooling.
L/N/PE input uses screw terminals; L+/M output uses spring-loaded terminals, with two connections each.
Specified conductor cross-section is 0.5 to 2.5 mm² for input and output terminals.
Specified operation is 0 to 60 °C horizontally and 0 to 40 °C vertically.
Verify the complete part number 6EP1333-4BA00, mounting space, S7-1500 rail arrangement, AC input range, total 24 V DC load, terminal conductors and required revision documentation before ordering or replacing an installed unit.
The specified output is 24 V DC at 8 A, corresponding to 192 W.
It supports 85 to 132 V AC and 170 to 264 V AC with automatic range selection.
The unit is specified for mounting on the SIMATIC S7-1500 mounting rail.
The output is short-circuit-proof and uses electronic shutdown followed by automatic restart.
Siemens specifies parallel operation for up to two units when applicable connection requirements are observed.
No. Siemens currently lists the product lifecycle as PM300: Active Product.
