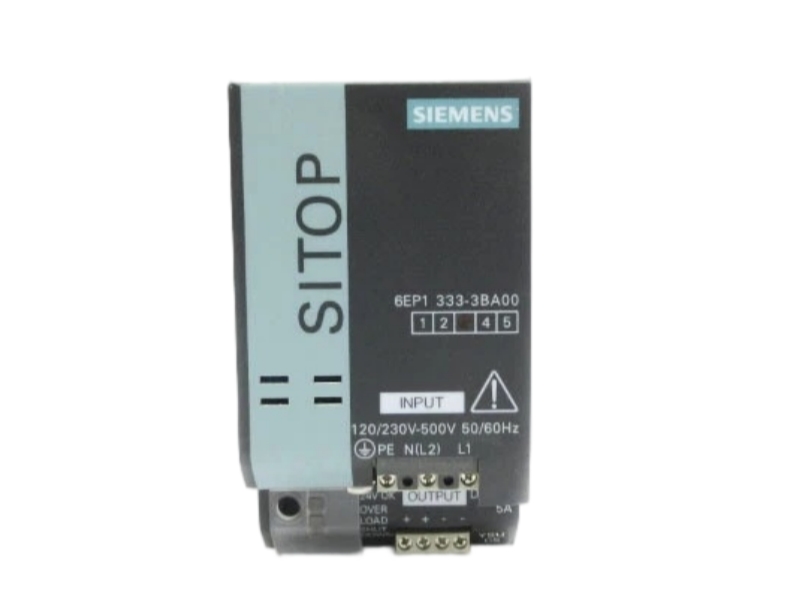

Siemens 6EP1333-3BA00 is a SITOP PSU200M stabilized power supply documented by Siemens for 24 V DC control-power applications. The unit accepts 120/230–500 V AC input and provides a rated 24 V DC output at 5 A. Siemens documentation identifies typical current limitation at 5.5 A and permits either a constant-current characteristic or latching shutdown for short-circuit handling. Yellow and red indicators support overload and latching-shutdown diagnosis. Because this complete number appears in earlier Siemens documentation, buyers should verify the installed label, input network, accessories and physical version carefully. Condition, availability and warranty shown here are Stockoems commercial terms only.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6EP1333-3BA00 |
| Product Type | Stabilized power supply |
| Series | SITOP PSU200M |
| Product Family | SITOP modular 1-phase and 2-phase |
| Input | 120/230–500 V AC |
| Output | 24 V DC / 5 A |
| Typical Current Limitation | 5.5 A |
| Short-Circuit Behavior | Constant-current characteristic or latching shutdown |
| Overload Indication | Yellow LED |
| Latching Shutdown Indication | Red LED |
| Commercial Terms | Original new · In stock · With 1 year warranty |
| Shipping | Worldwide |
| Country of Origin | GERMANY |
Verify the complete suffix 6EP1333-3BA00, input voltage arrangement, total 24 V DC load, terminal layout, rail space, cooling, signaling accessories and protective devices before ordering. Compare the full product label and visible hardware with the installed unit because later PSU200M variants use different complete numbers.
It is a SITOP PSU200M stabilized power supply documented for 24 V DC at 5 A.
Siemens documentation states 120/230–500 V AC input and 24 V DC at 5 A output.
Siemens documents typical current limitation at 5.5 A with selectable constant-current or latching-shutdown behavior.
Later PSU200M variants use different complete order numbers, so the full label must match the installed requirement.
Check input wiring, load, terminals, accessories, rail space, cooling and product label details.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Our workflow supports buyers and engineers from part-number review through shipment and after-sales communication. Each order is handled against the requested model, visible product identity and documented commercial terms without promising unverified quantities or delivery dates.
Ask for the complete legal company identity, traceable quotation, exact part number, clear commercial terms, product and label photos when available, written warranty terms and a documented return process. Engineers should also confirm that the supplier asks about system compatibility instead of assuming interchangeability.
Risk signals include altered suffixes, vague condition descriptions, unsupported technical claims, refusal to provide label evidence, unrealistic delivery promises, pressure to bypass written terms, and payment details that do not match the quoted company identity.
They help buyers compare the complete suffix, visible ratings and physical identity with the installed or specified unit before shipment.
Share the complete model, required quantity, destination and available equipment or label photos for a structured review.
