LOGO! 8 ANALOG SIGNAL PATH
LOGO! AM2 Analog Input Expansion Module

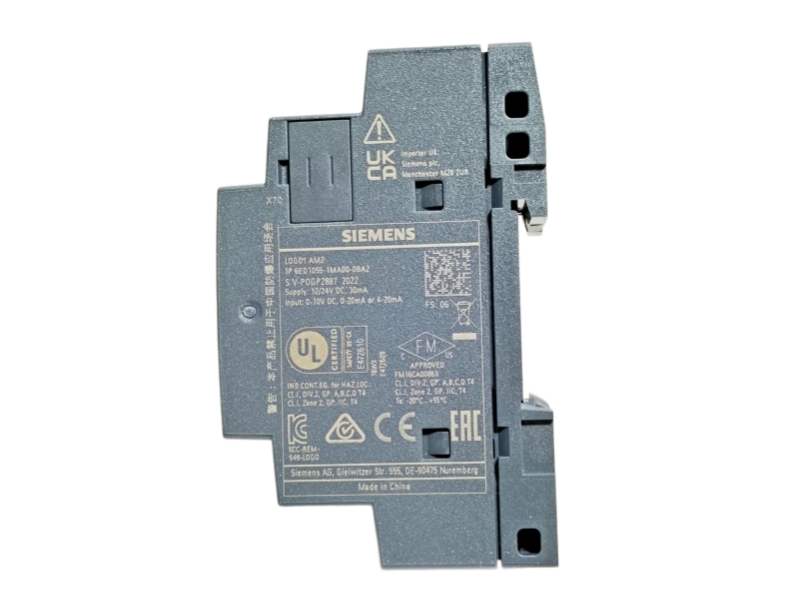

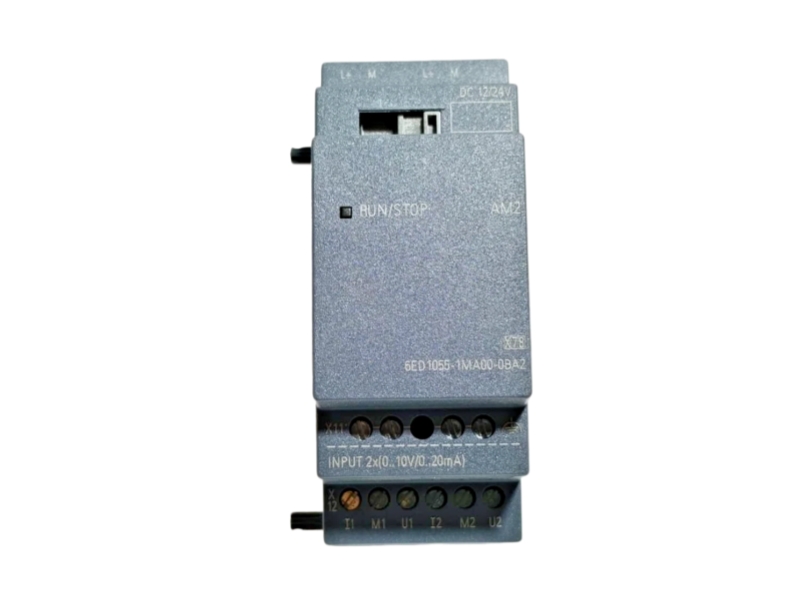

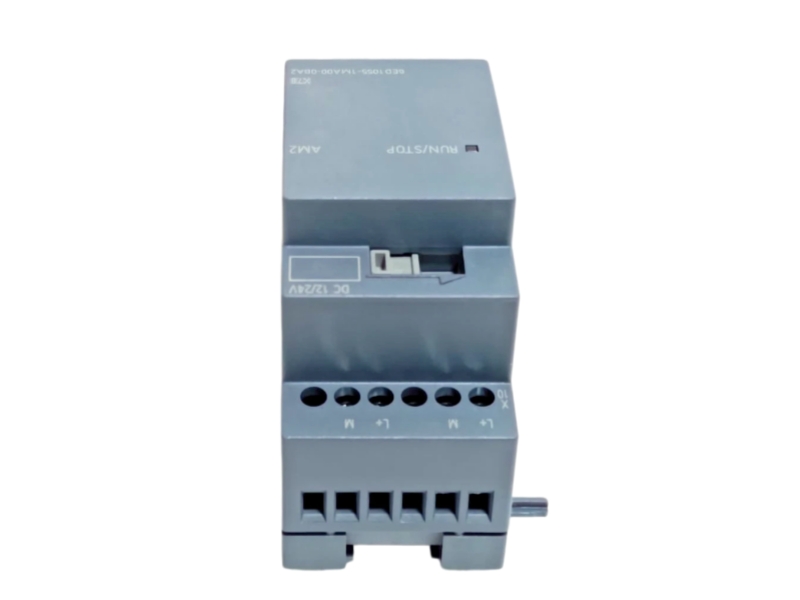

The Siemens 6ED1055-1MA00-0BA2 is a LOGO! AM2 expansion module designed to add two analog input channels to a LOGO! 8 control system. It accepts 0 to 10 V voltage signals and 0/4 to 20 mA current signals, supporting compact measurement and control tasks that use standard industrial transmitters. The module is powered from 12 or 24 V DC and mounts beside the LOGO! controller on a 35 mm DIN rail. For replacement or new-panel projects, confirm the exact suffix, signal range, wiring method and available cabinet space before ordering.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ED1055-1MA00-0BA2 |
| Product Type | LOGO! AM2 analog input expansion module |
| Series | LOGO! 8 expansion modules |
| Product Condition | NEW |
| Power Supply | 12/24 V DC |
| Analog Inputs | 2 |
| Supported Input Ranges | 0 to 10 V; 0/4 to 20 mA |
| Typical Current Consumption | 30 mA |
| Mounting | 35 mm DIN rail; two spacing units wide |
| Protection | IP20 |
| Approvals | CE, CSA, UL and FM |
| Net Weight | 0.132 kg |
| Packaging Dimensions | 7.30 x 10.00 x 5.70 cm |
| Country of Origin | GERMANY |
| Warranty | With 1 year warranty |
| Shipping | Shipping method and documents are confirmed in the written quotation. |
Use compatible voltage or current transmitters with the selected 0-10 V or 0/4-20 mA range.
The two analog channels extend LOGO! 8 measurement capacity for compact automation panels.
Configure the correct input type and engineering-unit scaling in the LOGO! project before commissioning.
What signals does 6ED1055-1MA00-0BA2 accept?
It supports 0-10 V voltage signals and 0/4-20 mA current signals across two analog inputs.
Is this an analog output module?
No. This AM2 version provides two analog inputs; confirm the complete suffix before ordering.
How is the module installed?
It mounts on a 35 mm DIN rail and occupies two spacing units beside the LOGO! system.
What should be checked for replacement work?
Compare the full part number, supply voltage, input signal type, wiring and available panel space.
Can it be shipped internationally?
International shipping options and documentation are confirmed according to destination and written quotation terms.
