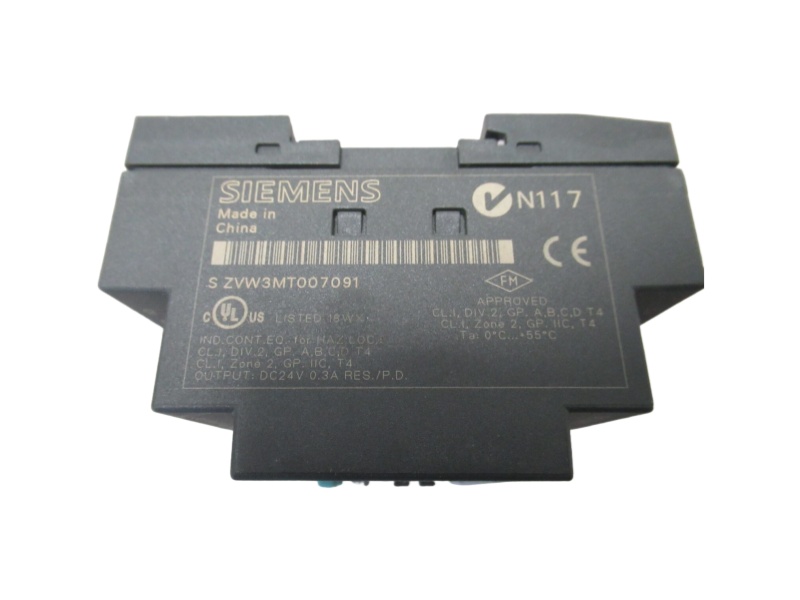

The 6ED1055-1CB00-0BA0 Siemens Digital outputs is a LOGO! expansion module that provides four digital inputs and four digital outputs, designed to extend the capabilities of basic logic control systems. This compact module operates on a 24V DC power supply with a wide operational range from 20.4V to 28.8V, ensuring stable performance in various industrial environments. The digital inputs of it feature low current consumption, requiring only 2mA typical for signal "1" and maintaining below 0.85mA for signal "0", with a maximum input delay of 1.5ms for responsive operation.

Each of the four digital outputs in the DM8 24 expansion module 6ED1 055-1CB00-0BA0 Siemens can handle up to 0.3A, making them suitable for controlling relays, contactors, and other industrial components. The module is designed for straightforward DIN rail mounting, occupying only two spacing units on a standard 35mm rail, which allows for space-efficient installation in control cabinets. The compact design of it makes it particularly valuable in applications where panel space is limited but additional I/O capacity is required.

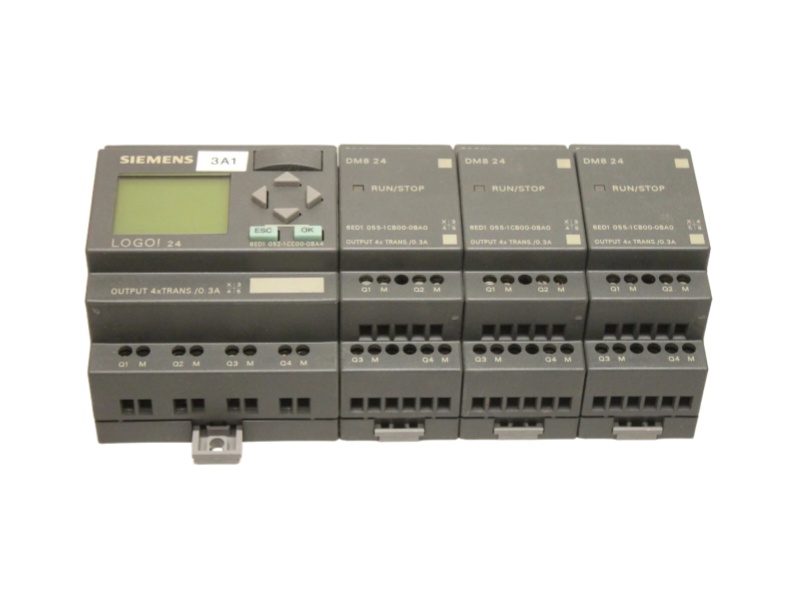

The 6ED1055-1CB00-0BA0 Siemens compact expansion module features transistor outputs that provide fast switching capabilities and long service life compared to conventional relay outputs. This expansion module seamlessly integrates with LOGO! logic modules, creating a cohesive control system that can be programmed using LOGO! Soft Comfort software. The straightforward installation and configuration process of the Siemens 6ED1055-1CB00-0BA0 makes it accessible for both experienced automation engineers and those new to industrial control systems.

In practical applications, the Siemens 6ED1055-1CB00-0BA0 PDF is commonly used in small to medium-sized automation projects such as lighting control, ventilation systems, pump control, and simple machine automation. Its robust construction and reliable performance make it suitable for harsh industrial environments while maintaining the flexibility needed for various control tasks. The module's combination of input and output capabilities in a single compact unit provides an economical solution for expanding control system functionality without requiring complex wiring or additional hardware components.
