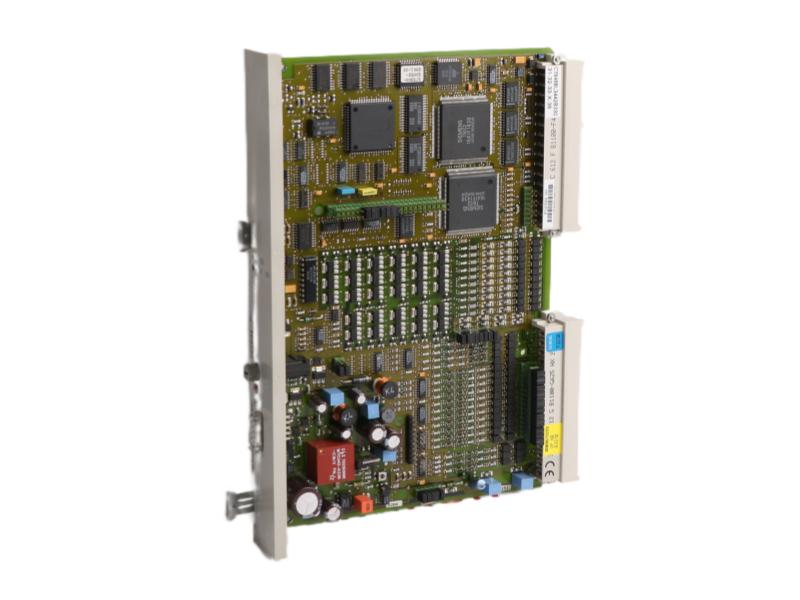

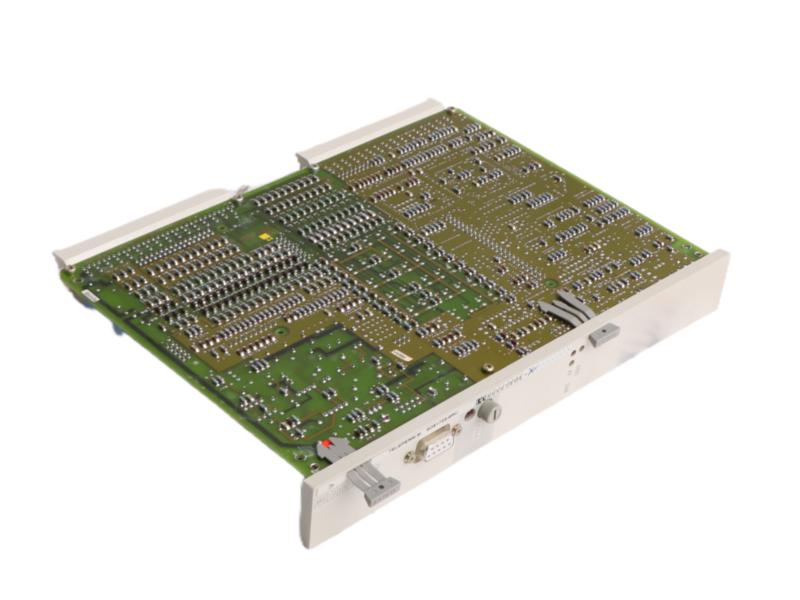

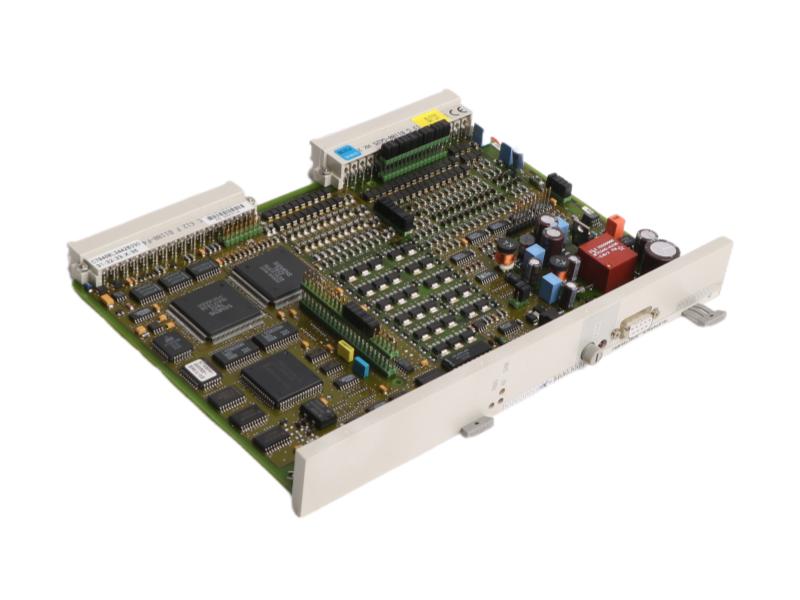

The Circuit Board 6DS1723-8BL Siemens is a vital analog module within the Teleperm system, designed as a rack-mountable expansion unit to enhance the capabilities of the control architecture. This PC board functions as a specialized interface for handling analog signals, a critical requirement in process automation for monitoring and controlling variables like pressure, flow, or level. The primary role of the Siemens 6DS1723-8BL is to provide high-fidelity signal conversion, ensuring that real-world process data is accurately represented within the digital control system.

A key technical feature of the 6DS1723-8BL Circuit Board Siemens is its precise analog output capability, supporting a standard current range of 0–20 mA. This signal type is widely used in industrial environments for its robustness and noise immunity over long distances. The module boasts a high 14-bit resolution for its analog-to-digital converter (ADC), which allows it to generate smooth and finely controlled output signals. Furthermore, the exceptional accuracy of 0.1% of the span ensures that commands sent to field devices, such as control valves or variable speed drives, are executed with a high degree of precision, directly impacting process stability and product quality.

The module is engineered for reliable operation in demanding conditions, requiring a stable 24 V DC power supply with a ±10% tolerance. With a current draw of 150 mA, the Siemens 6DS1 723-8BL ANALOG MODULE is designed for efficient power consumption within the rack. Its operational integrity is maintained across an ambient temperature range of 0 °C to +60 °C, making it suitable for installation in industrial control cabinets that may experience significant temperature fluctuations. This rugged construction is essential for continuous operation in critical process industries.

By serving as an expansion module, the EXPANSION MODULE Siemens 6DS1 723-8BL effectively increases the analog output capacity of a Teleperm system without necessitating a larger central controller. This modularity offers significant flexibility, allowing engineers to tailor the control system's I/O configuration to the exact needs of the application. The proven reliability and precision of the 6DS1 723-8BL SUBGROUP CONTROL make it an indispensable component for complex automation tasks where accurate analog control is paramount to operational success and safety.
