A coordinator records the exact Siemens order code, actuator type, valve tag, installed arrangement and required quantity. This keeps the original identification intact and exposes missing configuration data early.

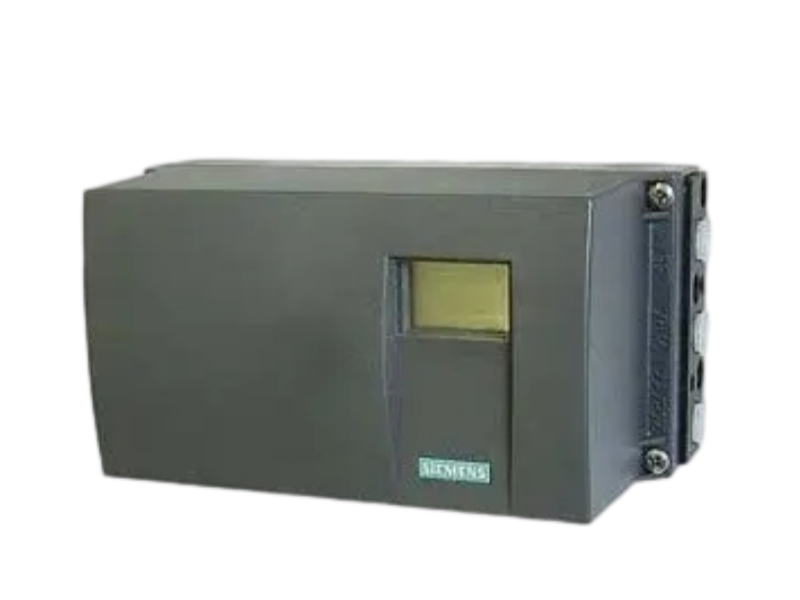

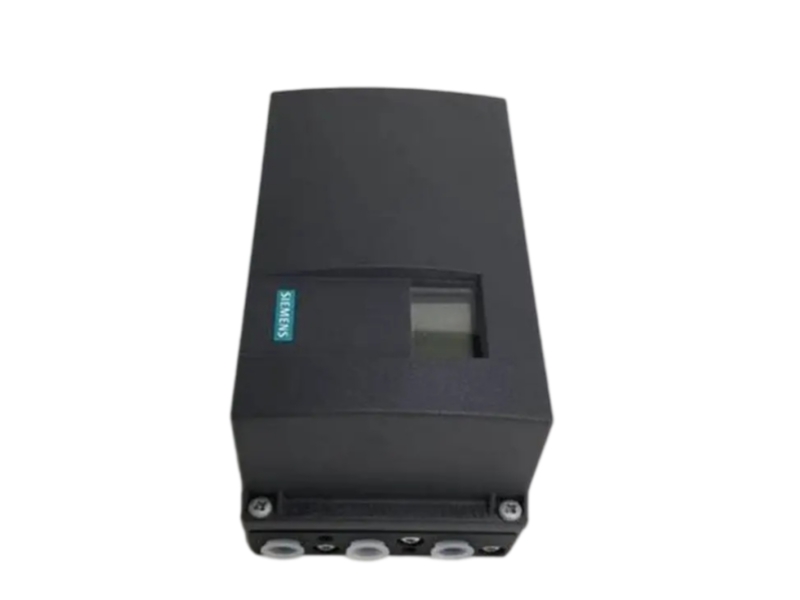

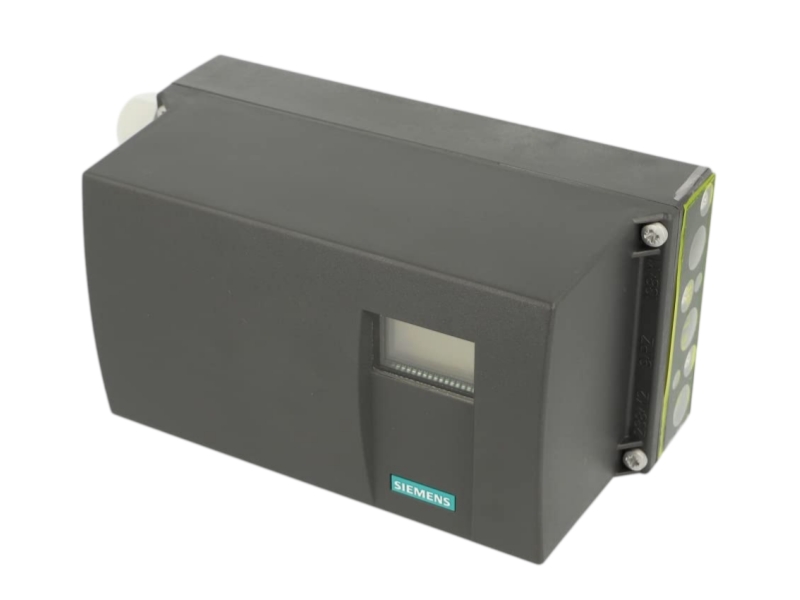

A 4–20 mA two-wire SIPART PS2 positioner for controlled operation of compatible pneumatic linear and part-turn actuators.
Siemens 6DR50100EN010AA0, manufacturer formatting 6DR5010-0EN01-0AA0, belongs to the SIPART PS2 family of intelligent electropneumatic positioners. Siemens documentation identifies the 6DR5010 range as a two-wire 4–20 mA version without HART, in a plastic housing and for single-acting pneumatic actuators.
The positioner converts an electrical setpoint into a regulated pneumatic output for valve positioning. It is intended for suitable linear or part-turn actuator assemblies. Because the complete suffix defines protection, connection and option details, procurement must match the full article number and the installed nameplate rather than relying on the family code alone.
| Item | Verified statement |
|---|---|
| Exact article | 6DR5010-0EN01-0AA0; compact supplied form 6DR50100EN010AA0 |
| Product family | SIPART PS2 |
| Official lifecycle wording | Not confirmed for this complete suffix in accessible current Siemens sources; verify before order placement. |
| Procurement scope | Availability, condition, warranty and shipment are confirmed in the written quotation. |
| Parameter | Officially supported information |
|---|---|
| Manufacturer | Siemens |
| Series | SIPART PS2 |
| Product type | Smart electropneumatic positioner |
| Setpoint interface | Two-wire 4–20 mA, without HART for the 6DR5010 range |
| Actuator action | Single-acting |
| Housing class | Plastic housing |
| Actuator application | Compatible pneumatic linear and part-turn actuators |
| Protection configuration | The 6DR5010-xExxx-0AA0 ordering pattern is documented for CENELEC/FM variants; confirm the exact nameplate and certificate for this suffix. |
| Configuration caution | Connection threads, optional modules, approval details and included mounting hardware must be checked against the complete suffix and physical unit. |
Regulates pneumatic actuator movement from a 4–20 mA control signal in process-valve assemblies.
Supports compatible linear actuator installations when the mechanical travel, mounting kit and pneumatic arrangement are correctly matched.
Supports compatible rotary or part-turn actuator applications with the specified coupling and commissioning procedure.
No lifecycle label is inferred for this complete suffix. The current Siemens catalogue entry and any replacement notice must be checked at the time of procurement before applying Active, Classic, Legacy, Limited, Phase Out Started, Product Cancellation, Obsolete or Discontinued wording.
It is the compact form of Siemens 6DR5010-0EN01-0AA0, a SIPART PS2 electropneumatic positioner.
Siemens documents the 6DR5010 range as a two-wire 4–20 mA version without HART. Do not transfer HART capability from a different SIPART PS2 order family.
It is intended for compatible pneumatic linear and part-turn actuators; the exact mounting arrangement and travel must be verified.
Not without a full comparison. Signal type, actuator action, enclosure, approvals, connections, options and mounting hardware can differ.
Provide the full nameplate, actuator data, valve tag, wiring and pneumatic connection details, quantity and destination.
The written quotation confirms product identity, available condition, lead time, warranty scope and global delivery terms.
Send the exact order code, actuator details, quantity and destination for a documented supply review.
A documentation-led service covering identity checks, configuration review, quotation control, inspection coordination and global delivery planning for SIPART PS2 positioners.
Valve positioners are configuration-sensitive instruments. A family name alone does not confirm actuator action, signal type, enclosure, approvals, connection threads or installed options. Our review keeps the complete 6DR50100EN010AA0 reference attached to every step and compares it with the supplied nameplate, actuator requirements and available official documentation.
Before commercial commitment, we coordinate the information needed to reduce wrong-part risk: full suffix, physical condition, optional modules, mounting accessories, pneumatic and electrical connections, quantity, destination, warranty scope and delivery expectations. The result is a clearer purchasing record and a more controlled handover to maintenance or project teams.
A coordinator records the exact Siemens order code, actuator type, valve tag, installed arrangement and required quantity. This keeps the original identification intact and exposes missing configuration data early.
Availability, condition, inspection points, warranty terms, lead time and inclusion of modules or accessories are aligned in writing, helping purchasing teams compare offers on the same basis.
Packing, shipping documents, carrier planning and destination requirements are discussed before dispatch. Traceable handover information supports receiving inspection and project scheduling.
Capture the full order number, nameplate and actuator context.
Check signal, action, approvals, connections and options.
Define condition, inclusions, warranty, price and lead time.
Coordinate label, appearance and packing evidence.
Arrange documentation, tracking and global shipment.
Send a legible positioner nameplate, the complete 6DR5010-0EN01-0AA0 order code, actuator manufacturer and model, single-acting confirmation, stroke or rotation, mounting arrangement, electrical signal, pneumatic connection, required area approval, installed options, quantity, preferred condition and destination country. Photos of terminals, air ports and mounting hardware help us identify configuration differences that are not visible from the family designation.
We can then structure the quotation around the exact requirement, state what is included, identify any point still requiring confirmation and document the acceptance checks for your receiving team.
Share the exact model, actuator data, quantity and destination for availability, compatibility, warranty and delivery coordination.
