6DL1193-6TP00-0DN0 Type N0 Terminal Block

Verified terminal-block identification and wiring checks for SIMATIC ET 200SP HA process I/O.

Product Overview

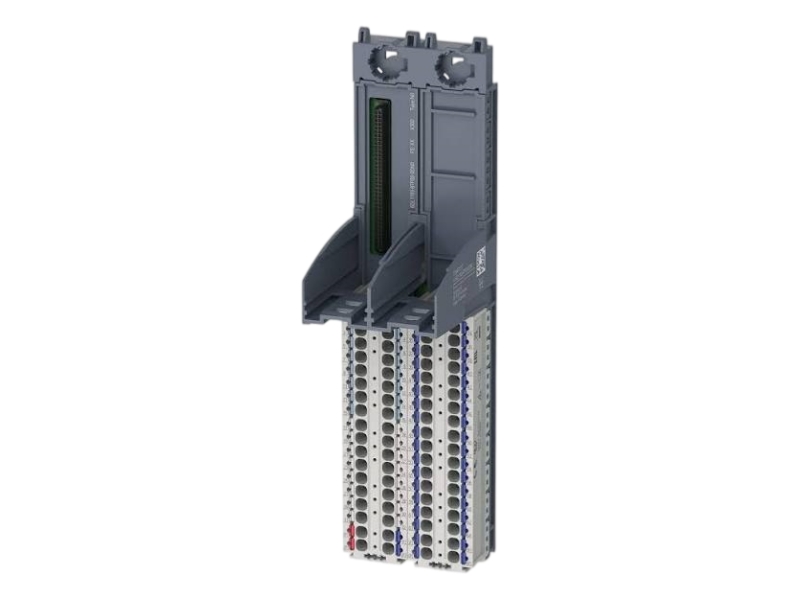

Siemens 6DL1193-6TP00-0DN0 is a light-colored Type N0 terminal block for SIMATIC ET 200SP HA. It provides 64 push-in terminals, forms a new 24 V DC load group and includes additional ground-potential distribution for actuator connections.

Commercial Status

Verified Technical Data

System Fit and Applications

• Field wiring for compatible ET 200SP HA digital output modules.
• Creation of a new 24 V DC load group in process I/O stations.
• Ground-potential distribution for actuator wiring through additional terminals.
• Maintenance replacement where the installed N0 coding and terminal assignment must be preserved.

Compatibility and Procurement Checks

• Confirm the exact I/O module and that Type N0 is specified.
• Verify light-color load-group function rather than the dark N0 variant.
• Check all 64 push-in terminal assignments against the cabinet drawings.
• Confirm the need for 32 additional ground terminals for actuator connections.
• Do not assume compatibility with H1, M1, P0 or D-sub terminal-block variants.
• Request current condition, quantity, delivery and warranty details before ordering.

Lifecycle Note

Siemens lists 6DL1193-6TP00-0DN0 as PM300: Active Product. Regional stock and delivery status should be confirmed at the time of procurement.
