6DL1193-6GA00-0NN0 Two-Fold Carrier Module

Verified carrier identification and installation checks for SIMATIC ET 200SP HA process I/O.

Product Overview

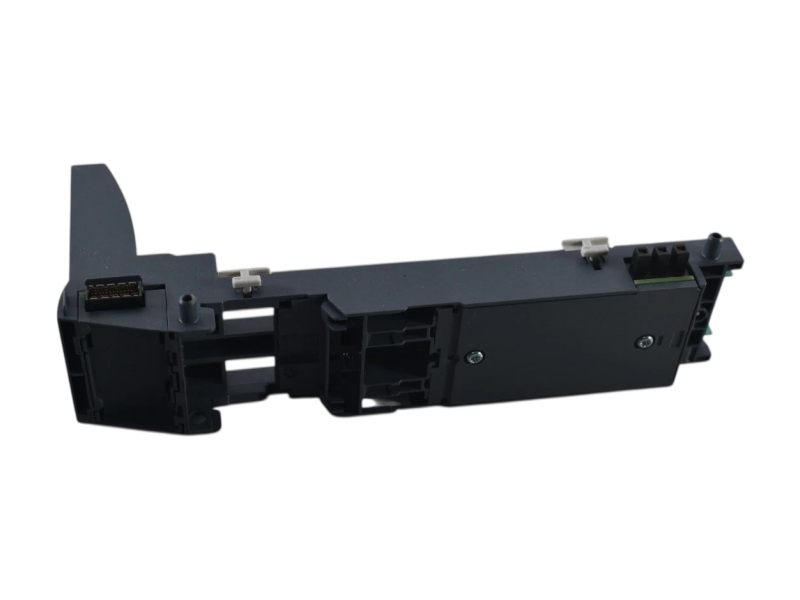

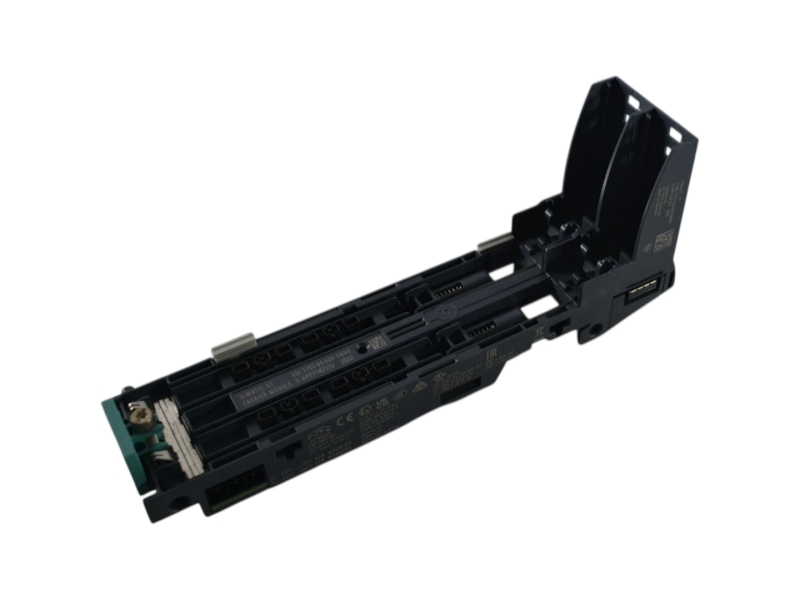

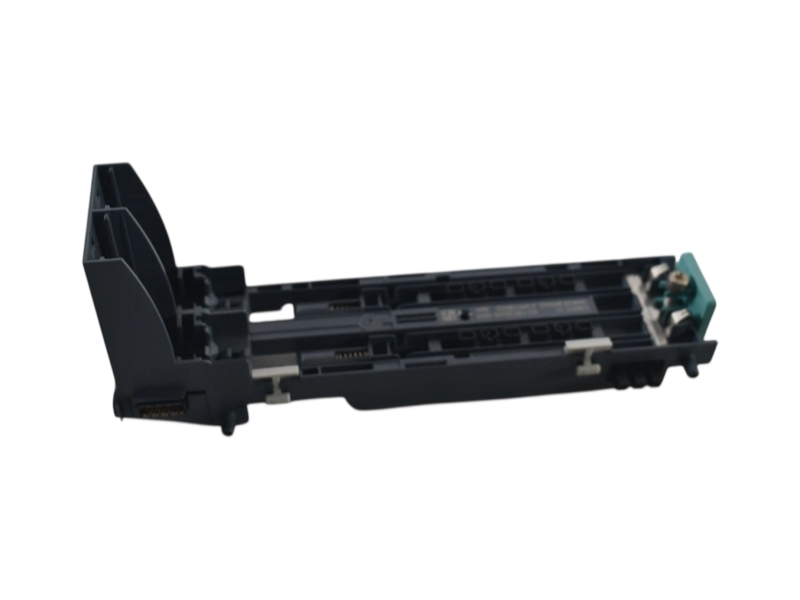

Siemens 6DL1193-6GA00-0NN0 is a two-fold SIMATIC ET 200SP HA carrier module designed to hold two I/O modules. Siemens documents two slots, I&M asset data, potential-group support and electrical separation for process-automation cabinet assemblies.

Commercial Status

Verified Technical Data

System Fit and Applications

• Mounting two ET 200SP HA I/O modules in process-automation cabinets.
• Building compact potential groups within distributed HA I/O stations.
• Expansion or repair of ET 200SP HA assemblies with verified carrier positions.
• Asset-data-supported maintenance in SIMATIC PCS 7 and compatible process I/O architectures.

Compatibility and Procurement Checks

• Confirm that a two-slot carrier is required rather than an eight-slot carrier.
• Verify the mounting rail, power-bus arrangement and neighboring carrier modules.
• Check I/O module types, slot sequence and redundancy concept.
• Confirm cabinet orientation and ambient-temperature requirements.
• Compare the installed label and mechanical dimensions before replacement.
• Request current condition, quantity, packaging, delivery and warranty details.

Lifecycle Note

Siemens lists 6DL1193-6GA00-0NN0 as PM300: Active Product. Procurement should still verify the current regional delivery status and the exact ET 200SP HA station layout.
