Siemens 6DL1165-6TF00-0PH1 is the ET 200PA SMART+ AQ 8xI HART analog output module. Siemens documentation identifies eight analog current outputs with HART capability for controlling compatible field actuators in process automation systems.
The equipment manual documents selectable current ranges, diagnostic functions, substitute values and channel status indication. Engineering must still verify the carrier or terminal arrangement, PCS 7 release, redundancy concept, HART device data and loop load for the installed system.
| Item | Verified Position |
|---|---|
| Exact order number | 6DL1165-6TF00-0PH1 |
| Evidence | Exact function confirmed in Siemens equipment and released-module manuals |
| Parameter | Verified Detail |
|---|---|
| Product family | SIMATIC ET 200PA SMART+ |
| Module designation | AQ 8xI HART PA |
| Product type | Analog output module |
| Output channels | 8 analog current outputs |
| HART communication | Supported |
| Current ranges | 0 to 10 mA; 0 to 20 mA; -20 to +20 mA; 4 to 20 mA |
| Load impedance | 750 Ω maximum in rated range |
| Shielded cable length | Up to 1,000 m |
| Substitute values | Configurable |
| Diagnostics | Supply voltage, wire break, short circuit, overflow and underflow |
| Status indication | MAINT, PWR and channel status LEDs |

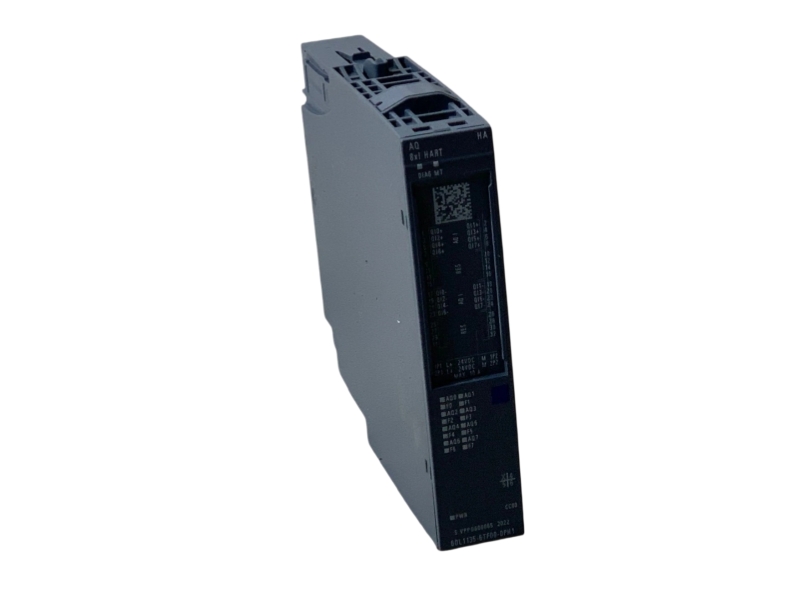

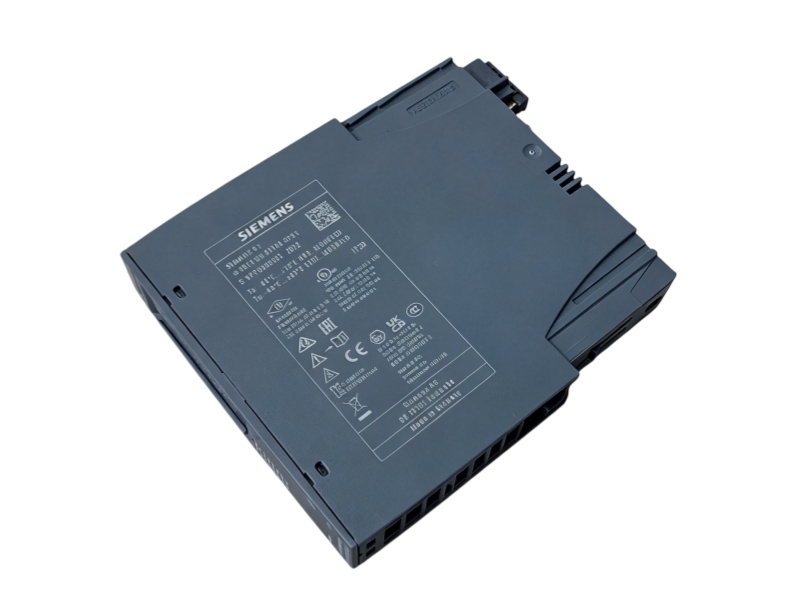

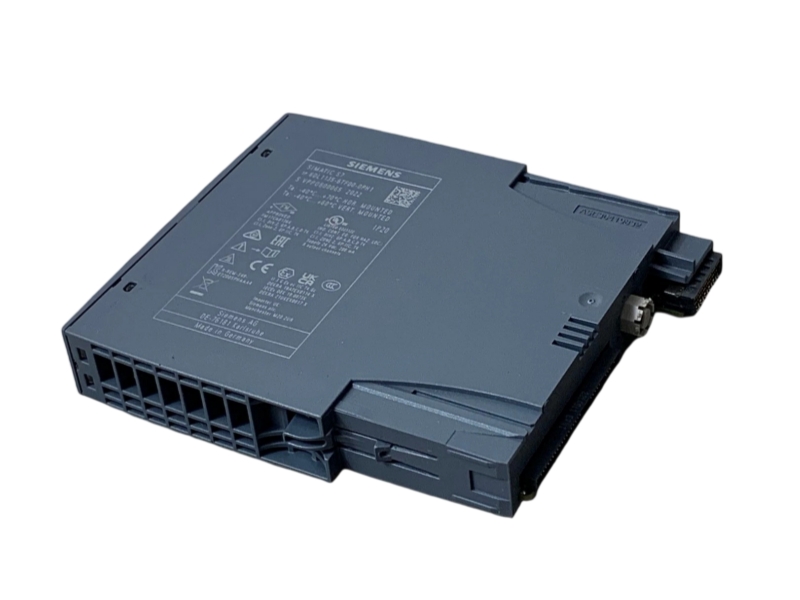

Use current photos of the front label, connector area and complete unit to confirm the full part number and hardware configuration.
| Application | Engineering Relevance |
|---|---|
| HART valve and actuator control | Provides current output commands with HART communication for compatible process field devices. |
| ET 200PA SMART+ distributed I/O | Adds eight analog output channels to a supported process automation station. |
| PCS 7 process loops | Supports output-loop diagnostics and substitute-value behavior when configured in a compatible system. |
It is an ET 200PA SMART+ eight-channel HART analog output module.
The Siemens equipment manual lists 0–10 mA, 0–20 mA, -20–+20 mA and 4–20 mA ranges.
Yes. Siemens documents supply-voltage, wire-break, short-circuit, overflow and underflow diagnostics.
Verify the station hardware, terminal arrangement, PCS 7 release, loop load, current range and HART configuration.
Share the full nameplate and system details for availability, revision and interchange review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Practical verification, compatibility review, inspection, packing and shipment support for ET 200PA SMART+ hardware.
We compare the full part number, label, hardware revision and visible connector layout before order confirmation.
Platform generation, system topology, firmware and replacement expectations are reviewed with supplied system data.
Sensitive automation hardware is packed for handling protection, with shipment options arranged for the confirmed destination.
Final supply, warranty terms, lead time and compatibility scope are confirmed against the exact 6DL1165-6TF00-0PH1 request rather than a similar model.
