Siemens 6DL1136-6AA00-0PH1 is a SIMATIC ET 200SP HA safety-oriented analog input module designated F-AI 8xI 2-wire/4-wire HART HA. It provides eight current input channels with HART capability and 16-bit conversion for process and safety-related measurement acquisition.
Siemens specifies SIL 3 capability according to IEC 61508 and performance level up to PL e according to ISO 13849-1. The module is suitable for H1 and F1 terminal blocks, uses color code CC00 and provides channel diagnostics; the selected safety parameters and wiring must be validated within the complete safety instrumented function.
| Item | Verified Position |
|---|---|
| Exact order number | 6DL1136-6AA00-0PH1 |
| Lifecycle | PM300: Active Product |
| Evidence | Confirmed for the complete order number in Siemens SiePortal |
| Parameter | Verified Detail |
|---|---|
| Product family | SIMATIC ET 200SP HA fail-safe I/O modules |
| Module designation | F-AI 8xI 2-wire/4-wire HART HA |
| Input channels | 8 analog current inputs |
| Sensor connection | 2-wire or 4-wire |
| HART communication | Supported |
| Resolution | 16 bit |
| Functional safety | SIL 3 according to IEC 61508 |
| Performance level | Up to PL e according to ISO 13849-1 |
| Terminal blocks | H1 and F1 |
| Color code | CC00 |
| Diagnostics | Channel diagnostics |
| Net weight | 0.356 kg |
| Packaging dimensions | 3.50 × 15.00 × 13.00 cm |
| Country of origin | Germany |
| Lifecycle | PM300: Active Product |

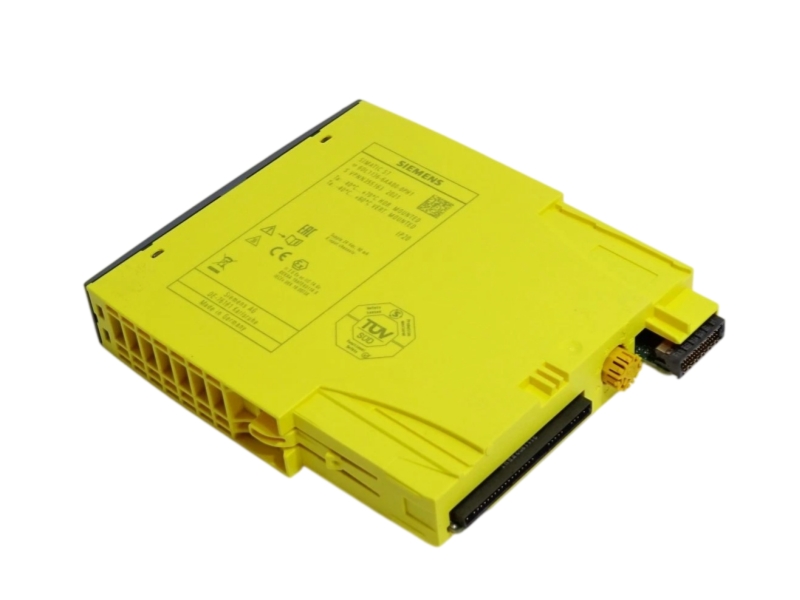

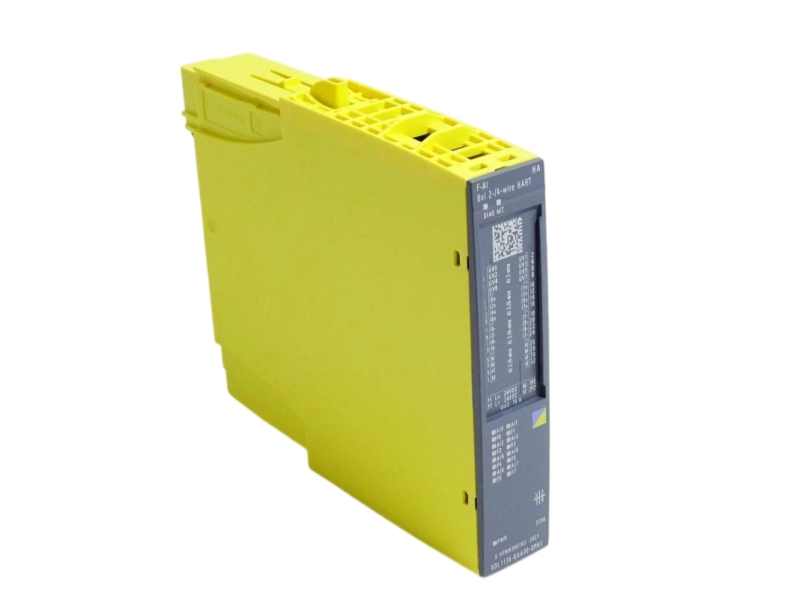

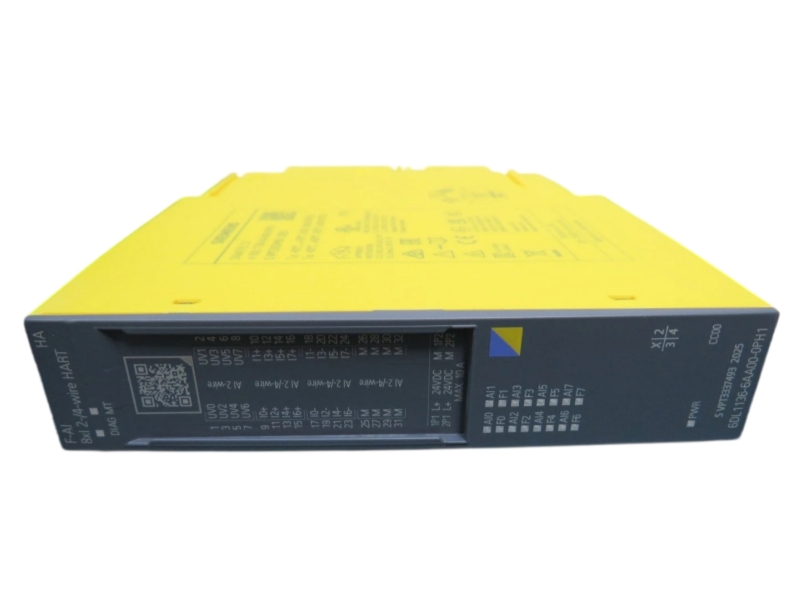

Use current photos of the front label, connector area and complete unit to confirm the full part number and hardware configuration.
| Application | Engineering Relevance |
|---|---|
| Safety-related current measurement | Acquires analog process values for engineered safety instrumented functions. |
| HART sensor integration | Combines current measurement with HART communication for compatible transmitters. |
| ET 200SP HA high-availability I/O | Supports process automation architectures using the correct terminal block and system configuration. |
Siemens SiePortal lists the complete order number as PM300: Active Product. This wording is retained without alteration.
It is a fail-safe ET 200SP HA eight-channel HART analog input module.
The module provides eight current input channels for 2-wire or 4-wire transmitters.
Siemens specifies SIL 3 according to IEC 61508 and up to PL e according to ISO 13849-1.
Siemens lists H1 and F1 terminal blocks; the actual choice depends on the engineered station.
Siemens lists the complete product as PM300: Active Product.
Share the full nameplate and system details for availability, revision and interchange review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Practical verification, compatibility review, inspection, packing and shipment support for ET 200SP HA hardware.
We compare the full part number, label, hardware revision and visible connector layout before order confirmation.
Platform generation, system topology, firmware and replacement expectations are reviewed with supplied system data.
Sensitive automation hardware is packed for handling protection, with shipment options arranged for the confirmed destination.
Final supply, warranty terms, lead time and compatibility scope are confirmed against the exact 6DL1136-6AA00-0PH1 request rather than a similar model.
