SIMATIC ET 200SP HA · Analog I/O
16-channel two-wire HART input module for high-availability process automation.

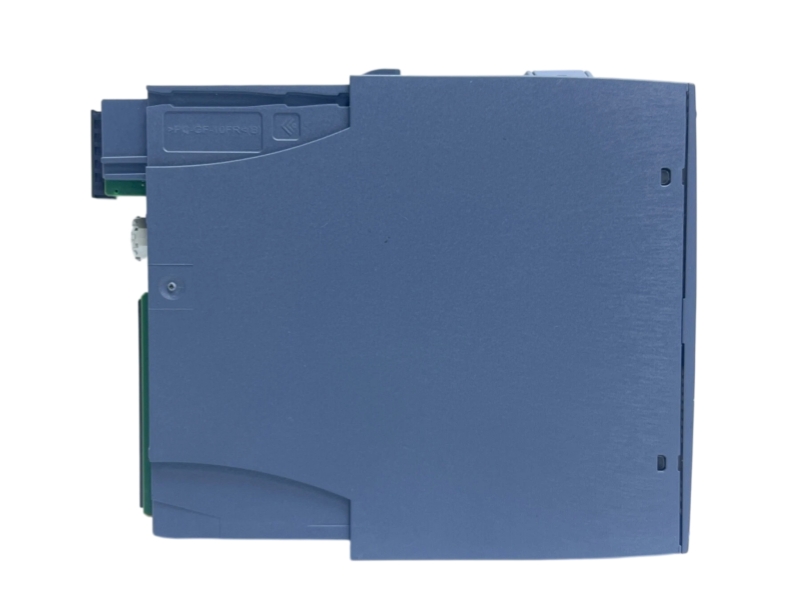

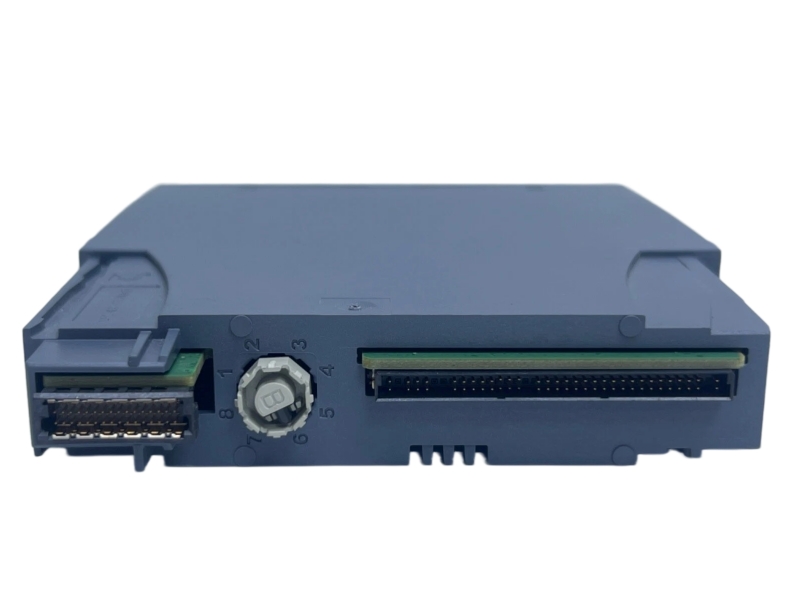

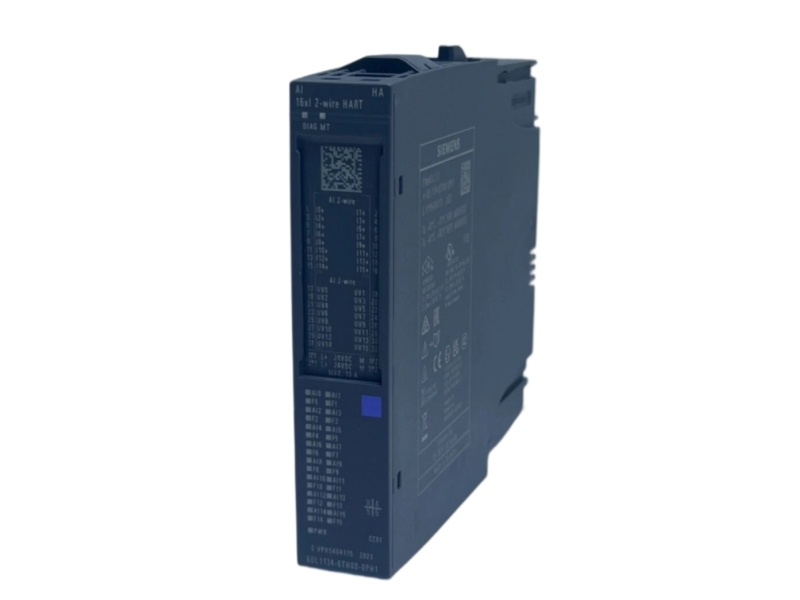

Siemens 6DL1134-6TH00-0PH1 is a SIMATIC ET 200SP HA analog HART input module designed for process instrumentation in distributed control applications. The AI 16xI 2-wire HART HA module provides sixteen analog input channels, supports two-wire HART devices, and includes channel diagnostics with 16-bit conversion accuracy specified at ±0.1%. Siemens lists compatibility with ET 200SP HA terminal blocks H1 and M1 and assigns color code CC01. Procurement and replacement planning should verify the complete suffix, terminal block, field wiring, HART device requirements, project configuration and approved module revision before installation.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6DL1134-6TH00-0PH1 |
| Product Family | Analog I/O modules |
| Product Type | SIMATIC ET 200SP HA analog HART input module |
| Module Designation | AI 16xI 2-wire HART HA |
| Analog Input Channels | 16 |
| Field Device Connection | 2-wire HART |
| Compatible Terminal Blocks | H1 and M1 |
| Color Code | CC01 |
| Diagnostics | Channel diagnostics |
| Resolution / Accuracy | 16-bit; ±0.1% |
| Net Weight | 0.300 kg |
| Packaging Dimensions | 3.50 × 15.00 × 13.00 cm |
| Official Lifecycle | PM300: Active Product |
| Country of Origin | Germany |
| Application Area | How the Processor Is Used |
|---|---|
| Process analog acquisition | Collects analog values from compatible two-wire field devices in ET 200SP HA stations. |
| HART device integration | Supports HART communication for compatible process transmitters and instrument diagnostics. |
| High-availability I/O architectures | Fits supported ET 200SP HA configurations using the specified terminal block. |
| Maintenance and replacement | Provides a like-for-like spare option when order code, base and project configuration match. |
Siemens lists 6DL1134-6TH00-0PH1 as PM300: Active Product. Procurement teams should still verify the target ET 200SP HA configuration, terminal block and project requirements before installation or replacement.
It identifies the Siemens SIMATIC ET 200SP HA AI 16xI two-wire HART analog input module in its complete order-code configuration.
Siemens specifies sixteen analog input channels for this module.
The official product description lists compatibility with terminal blocks H1 and M1.
Yes. It is designed for two-wire HART field devices and includes channel diagnostics.
Verify the complete suffix, terminal block, field wiring, signal configuration, HART device requirements and project settings.
No. Siemens lists the complete part number as PM300: Active Product.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Stockoems Industrial Automation Service
A documented service route for Siemens 6DL1134-6TH00-0PH1 procurement and replacement planning.
| Control Point | What We Review | Buyer Value |
|---|---|---|
| Identity check | Brand, full part number, suffix and readable nameplate | Reduces ordering errors and suffix confusion |
| Visual inspection | Housing, connector, contacts, seals and visible handling condition | Creates a clear pre-shipment condition record |
| Technical context | ET 200SP HA station, terminal block, HART field wiring and project requirements | Supports a more informed replacement review |
| Packaging | Internal cushioning, antistatic handling where appropriate and outer-box protection | Helps protect the component during transport |
| Logistics | Destination, carrier option, tracking and customs paperwork | Improves shipment coordination without promising an unconfirmed lead time |
| After-sales | Written warranty terms, order record and return authorization path | Provides a documented channel for post-delivery communication |
Check whether the supplier records the complete part number, provides readable product and label photos, states condition and warranty terms in writing, and answers technical questions without substituting a similar suffix.
Request the commercial offer, full order code, condition statement, inspection photos, packaging plan, shipping method, warranty terms and return authorization procedure.
Review the ET 200SP HA station, H1 or M1 terminal block, channel wiring, two-wire HART devices, signal configuration, module revision and project settings.
Common risk signals include incomplete suffixes, photos that hide the nameplate, unsupported compatibility claims, pressure to accept a different order code, unclear warranty wording and promises of unverified inventory or delivery dates.
Yes. Available photos can cover the full product view, readable label, connector condition, packaging and visible accessories.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
