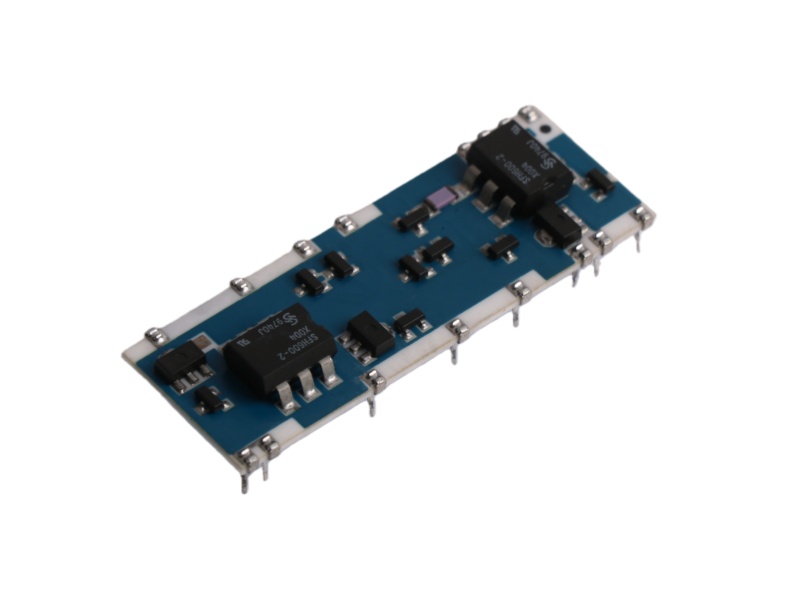

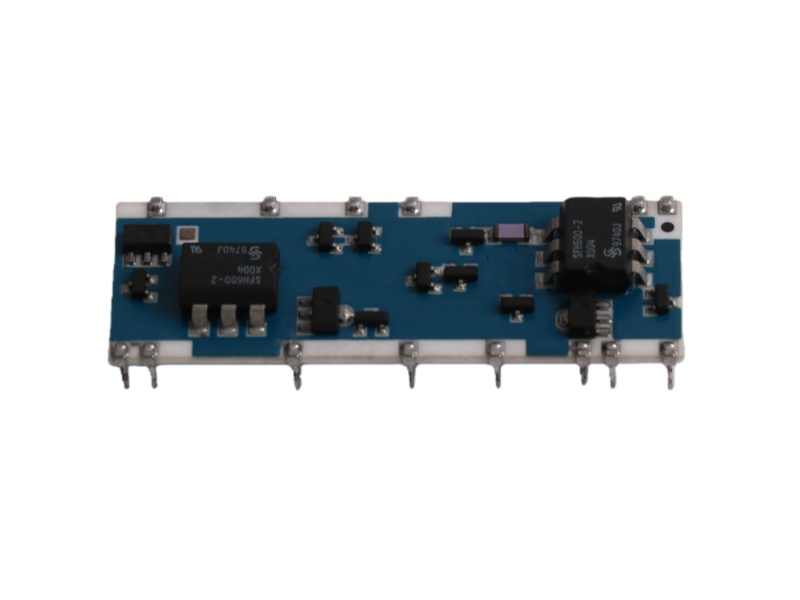

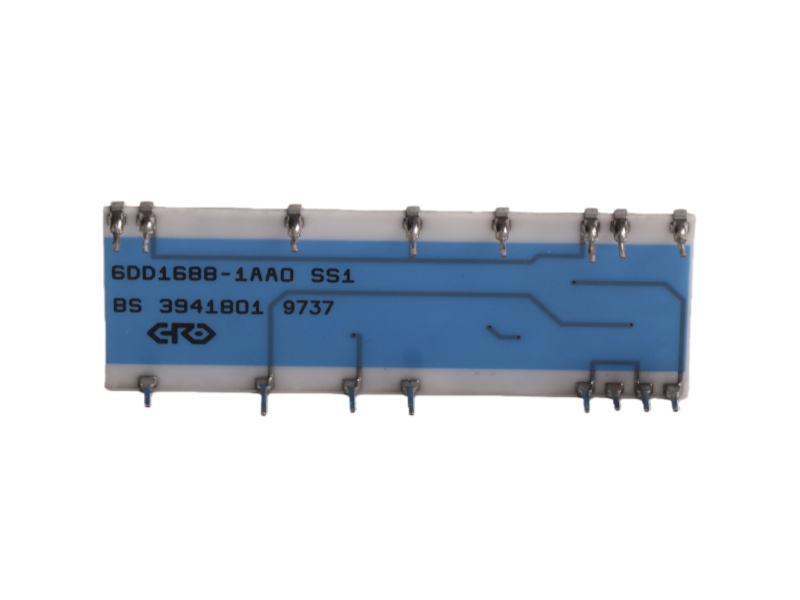

The Siemens 6DD1688-1AA0 Digital Control System Processor module is a critical interface submodule, designated as type SS1, for the SIMADYN D control system. This specialized component functions as a 20 mA (TTY) current loop interface, a robust serial communication standard widely used in industrial environments for its noise immunity and long-distance capabilities. The primary role of the module is to provide a reliable communication channel between the high-level controller and various peripheral devices, such as older terminals, printers, or serial-based sensors.

Installed as a hybrid module into a specific slot on the CS7 carrier module, the INTERFACE SUBMODULE Siemens 6DD1688-1AA0 is responsible for converting signal levels and managing the data flow through the system's serial port, specifically connector X01. It is crucial to observe the correct mounting position as indicated on the board to ensure proper functionality. The activation of this interface via the module allows the system to leverage a communication method known for its durability in electrically noisy settings.

The application of the 6DD 1688-1AA0 Siemens Interface Modules is particularly valuable in legacy industrial installations where modern Ethernet-based module helps maintain data integrity over extended cable runs, which is essential for sprawling factory automation and process control systems.

In summary, the Siemens 6DD 1688-1AA0 INTERFACE SUB MODULE serves as a vital bridge, enabling the SIMADYN D system to interact with a legacy but proven industrial communication standard. Its role is fundamental in integrating and preserving existing equipment investments. By ensuring stable and interference-resistant data transmission, the SIEMENS 6DD1688-1AA0 Module directly contributes to the overall robustness and operational continuity of complex automation solutions.
