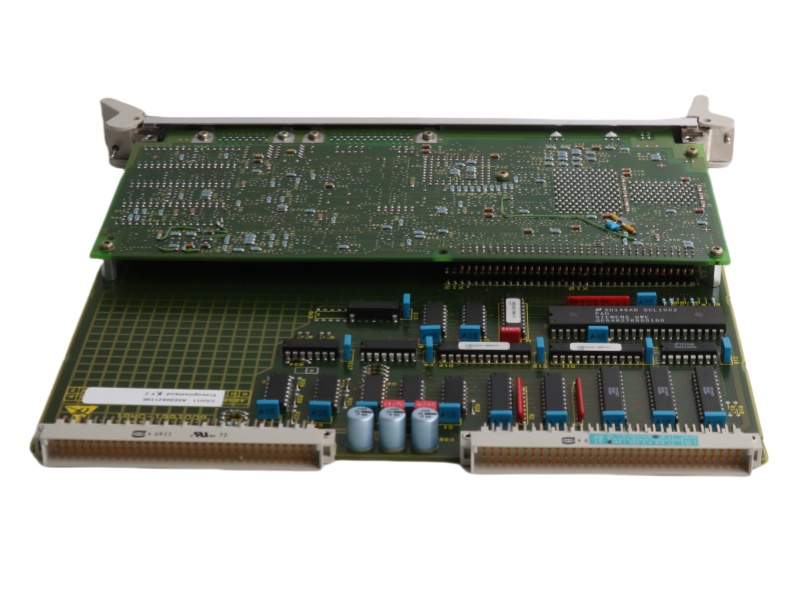

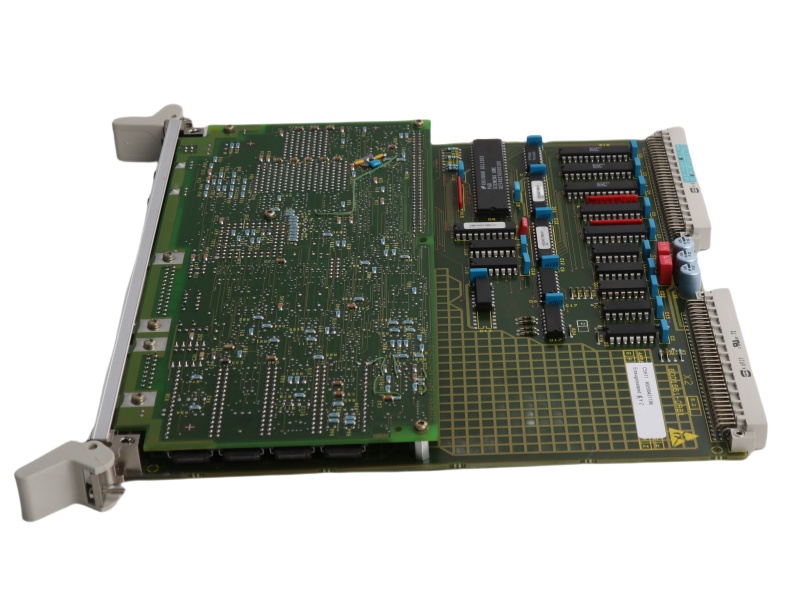

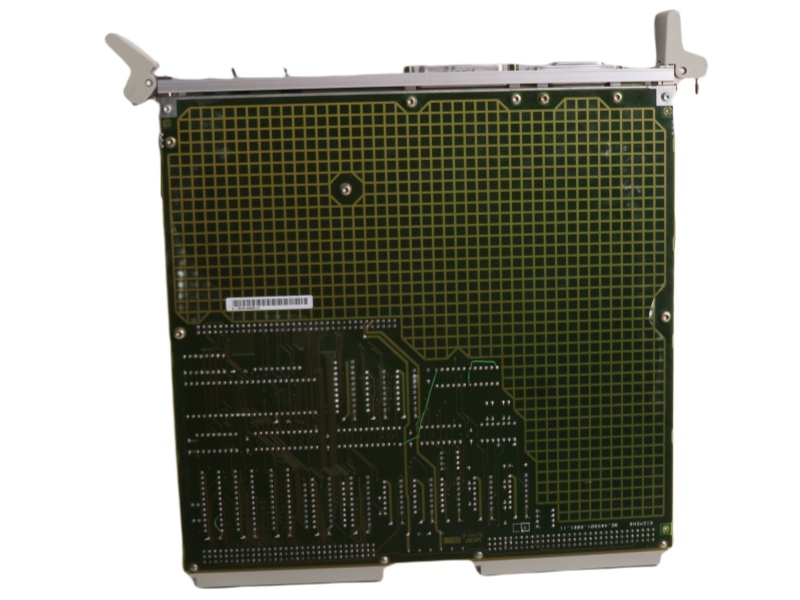

The Siemens 6DD1661-0AB1 Communication Module is a SIMADYN D CSH11 communication module designed as a slave interface for the robust SINEC H1 bus system. Utilizing the integrated CP1470 communications processor and dual port RAM, the Simadyn D Communication Module csh11 6dd1661-0ab1 establishes reliable connections between CPUs and the industrial SINEC H1 network, also known as “Industrial Ethernet.” This ensures efficient data exchange and high-speed process communication essential for demanding automation environments.

Equipped with multiple serial interfaces, the CSH11 Communication Module Siemens 6DD1661-0AB1 offers a 25-pin X5 port for parameterizing the CP1470 module, allowing settings like Ethernet addresses to be configured using SINEC NML software. Additionally, a 15-pin X6 connector links to the SINEC H1 bus coupler via a drop cable, with a maximum length of 50 m. The module also provides passive 20 mA TTY and RS 232 (V.24) interfaces for connecting PG7xx programmers or AT-compatible PCs at a baud rate of 9.6 kbaud.

The front panel of the 6DD1661-0AB1 PLC Module Siemens features a function selector switch with ADM, RUN, and STP modes alongside a reset button, enabling straightforward module management and troubleshooting. Diagnostic LEDs offer immediate status indication, ensuring that maintenance teams can quickly identify and address network issues, thereby maintaining system uptime and reliability.

Although officially discontinued by Siemens on January 10, 2017, the 6DD1661-0AB1 Siemens Simatic S5 CSHII 6DDI66I-OAB1 remains widely utilized in existing industrial setups due to its proven stability and integration ease. This module continues to support critical operations in industrial plants, offering a dependable interface for SINEC H1 communication and extending the lifecycle of legacy systems without the need for immediate replacement.
