SIMATIC HMI · BASIC PANEL

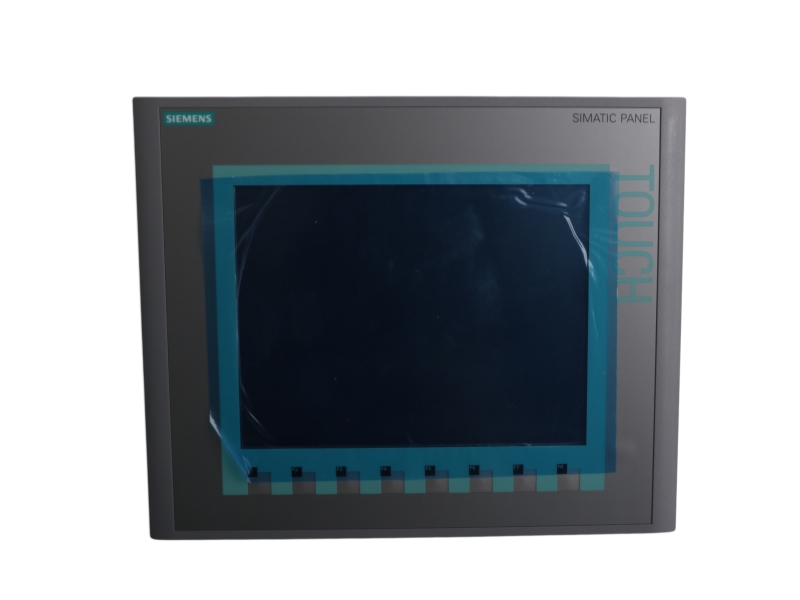

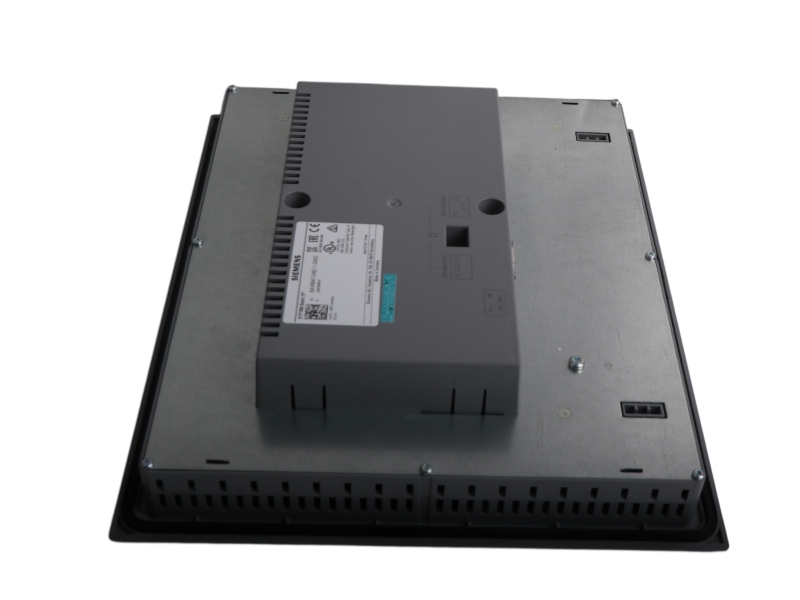

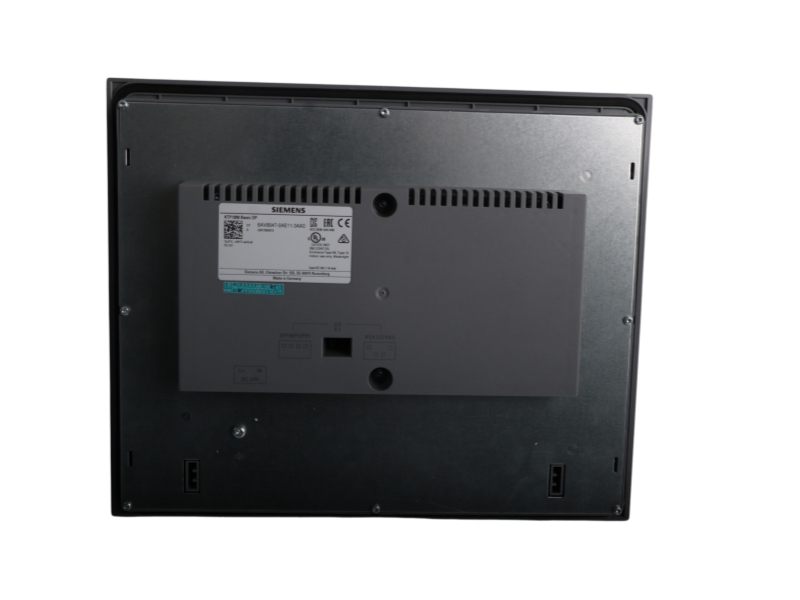

KTP1000 key-and-touch operator panel with 10-inch color display and PROFIBUS DP
Siemens 6AV6647-0AE11-3AX0 is a SIMATIC HMI KTP1000 Basic Color DP operator panel for machine visualization and control. Siemens specifies key and touch operation, a 10-inch TFT display with 256 colors, and an MPI/PROFIBUS DP interface. The device is configurable from WinCC flexible 2008 SP2 Compact, WinCC Basic V11 or STEP 7 Basic V11. For replacement, verify the complete suffix, panel cutout, supply, bus connector, project software and archived HMI program before removal. Siemens currently lists this model under Product Cancellation and identifies it as a spare part for installed systems.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Product Cancellation |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AV6647-0AE11-3AX0 |
| Product Type | KTP1000 Basic Color DP operator panel |
| Series | SIMATIC HMI Basic Panel |
| Operation | Key and touch operation |
| Display | 10-inch TFT |
| Colors | 256 |
| Communication Interface | MPI / PROFIBUS DP |
| Configuration Software | WinCC flexible 2008 SP2 Compact; WinCC Basic V11; STEP 7 Basic V11 |
| Packaging Dimensions | 47.1 × 33.4 × 13.4 cm |
| Net Weight | 3.08 kg |
| Official Lifecycle | Product Cancellation |
| Country of Origin | GERMANY |
| Machine visualization | Displays process values, alarms and operator screens when the restored project matches. |
|---|---|
| PROFIBUS operator stations | Connects through the documented MPI/PROFIBUS DP interface after network verification. |
| Key and touch operation | Supports physical-key and touch interaction for compatible machine interfaces. |
| Installed-base maintenance | Replaces the exact KTP1000 panel after cutout, connector and project checks. |
Siemens SiePortal lists 6AV6647-0AE11-3AX0 under Product Cancellation and identifies it as a spare part. Procurement should preserve the existing HMI project, confirm the MPI/PROFIBUS DP network and verify the mechanical installation before replacement.
It identifies the Siemens SIMATIC HMI KTP1000 Basic Color DP operator panel.
Siemens specifies a 10-inch TFT display with 256 colors and combined key-and-touch operation.
The official description lists an MPI/PROFIBUS DP interface.
Siemens SiePortal lists Product Cancellation and identifies the device as a spare part.
No direct substitution should be assumed. Verify the full suffix, cutout, bus interface, software version and HMI project.
Request the front and rear views, readable order-code label, interface connectors, mounting hardware and packaging.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS PROCUREMENT AND DELIVERY SUPPORT
Structured verification, inspection, packaging and logistics coordination for an exact KTP1000 Basic Color DP operator panel order.
| Verification Stage | Stockoems Service Scope |
|---|---|
| Model and suffix verification | The complete order number 6AV6647-0AE11-3AX0 is checked against the inquiry, readable label and available product documentation. |
| Condition confirmation | Condition, visible housing details, connectors and packaging are reviewed before shipment arrangements. |
| Technical compatibility review | The buyer should provide the panel cutout, supply details, MPI or PROFIBUS DP network settings, connector information, engineering-software version and archived HMI project. |
| Product and label photo confirmation | Current full-unit, nameplate, connector and packaging photographs can be requested for order review. |
| Protective packaging | The product is prepared with appropriate anti-static and impact protection based on the shipment method. |
| Logistics coordination | Worldwide shipping options, shipment tracking and destination-specific customs documentation are coordinated after order details are confirmed. |
| Warranty and returns | Written warranty terms and the return authorization process are supplied with the commercial arrangement. |
| After-sales response | The service team maintains a clear communication path for documentation, shipment and after-sales questions. |
Check whether the supplier verifies complete order codes, provides current label and condition photographs, explains warranty and return terms in writing, and avoids unsupported technical claims.
Be cautious with altered labels, unclear suffixes, reused photographs, unverified compatibility promises, missing return procedures, vague payment recipients or pressure to accept an exact delivery date without confirmation.
Compare the complete KTP1000 order number, cutout, 24 V DC supply, MPI or PROFIBUS DP interface, configuration software and project backup. Similar panel names do not prove interchangeability.
