6AV6643-0CD01-1AX1 Overview

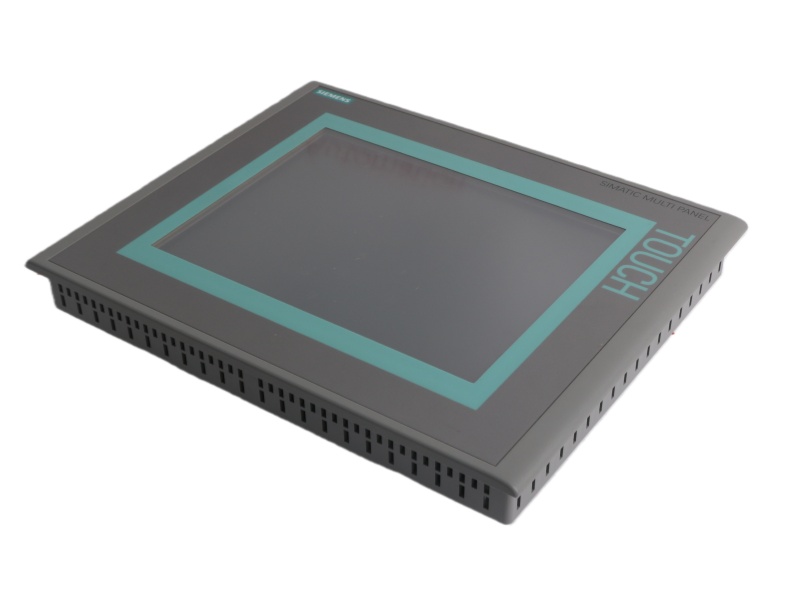

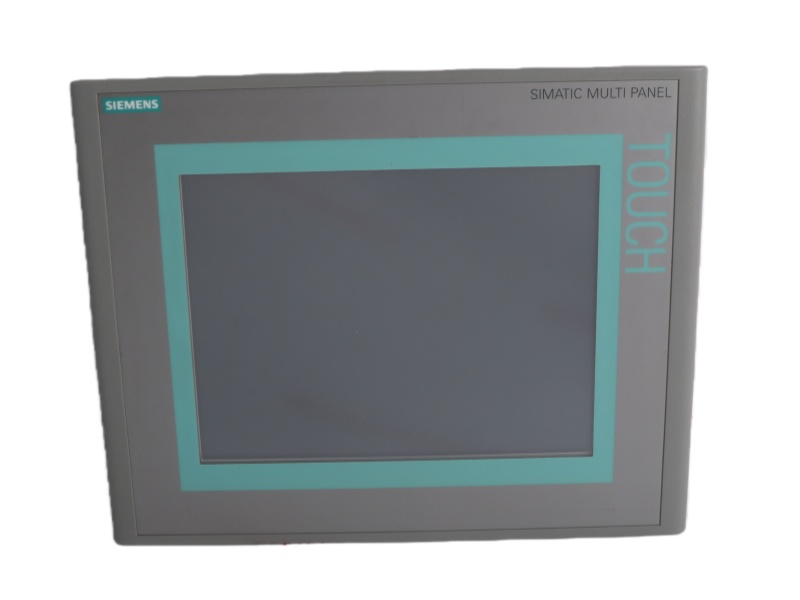

The Siemens 6AV6643-0CD01-1AX1 MP277 Multi Panel Touch - 10 inch is a discontinued MP 277 10" Touch Multi Panel. It features a 10.4" TFT display, 6 MB memory, and runs on Windows CE, configurable with WinCC Flexible for industrial HMI applications.

Technical Data Summary

Touch Interface: Features an analog resistive touch screen for intuitive control and data input.

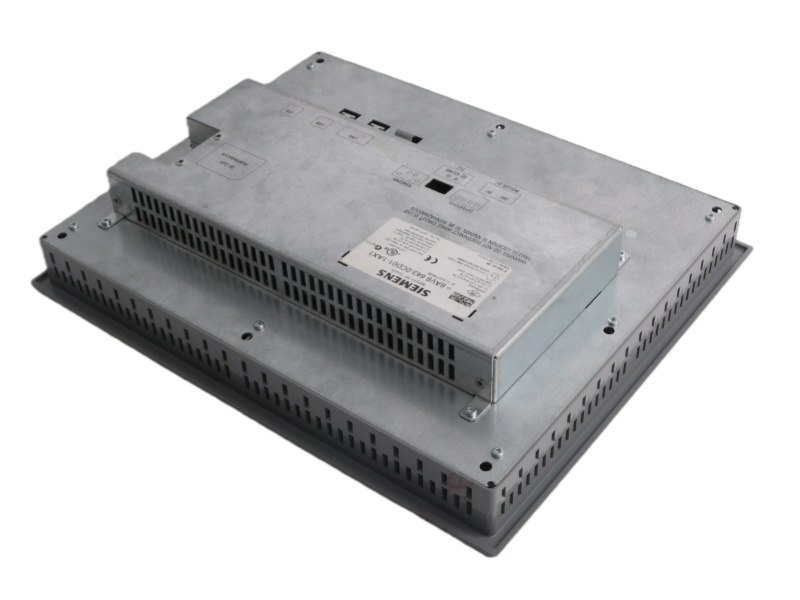

Versatile Connectivity: Equipped with 1x Ethernet, 1x RS485, and 1x RS422 for broad network and device communication.

USB Ports: Includes 2x USB ports for connecting peripherals like a mouse, keyboard, or barcode reader.

PROFIBUS & PROFINET: Supports PROFIBUS and PROFINET IO protocols for robust industrial network integration.

Expansion Slot: Offers a Multimedia Card (MMC) slot for project storage and data transfer.

TCP/IP Capable: Utilizes standard TCP/IP over Ethernet for general network communication and configuration.

FAQ

Q1: What is the Siemens 6AV6643-0CD01-1AX1?

A1: It is a discontinued MP 277 10-inch Touch Multi Panel, an industrial HMI device for machine operation and monitoring.

Q2: What are its key display specifications?

A2: It features a 10.4-inch TFT color touch screen with a resolution of 640x480 pixels and 65,536 colors.

Q3: What communication interfaces does it have?

A3: It is equipped with Ethernet (TCP/IP), PROFIBUS, RS485, RS422, and two USB ports for connectivity.

Q4: What software is used to configure it?

A4: It is configured using WinCC Flexible 2005 Standard SP1 (or higher) engineering software.

Q5: Is this panel still available as a new product?

A5: No, it was blocked for delivery as a new part as of January 1, 2015, and is only available as a spare part through specific channels.
