SIMATIC HMI · MP 177 6-INCH TOUCH
5.7-inch TFT touch operation, retentive memory and 2 MB configuration memory for established SIMATIC HMI applications.
OFFICIAL LIFECYCLE
PM410: Product cancellation
Effective 2023-10-01 · Siemens spare-part status

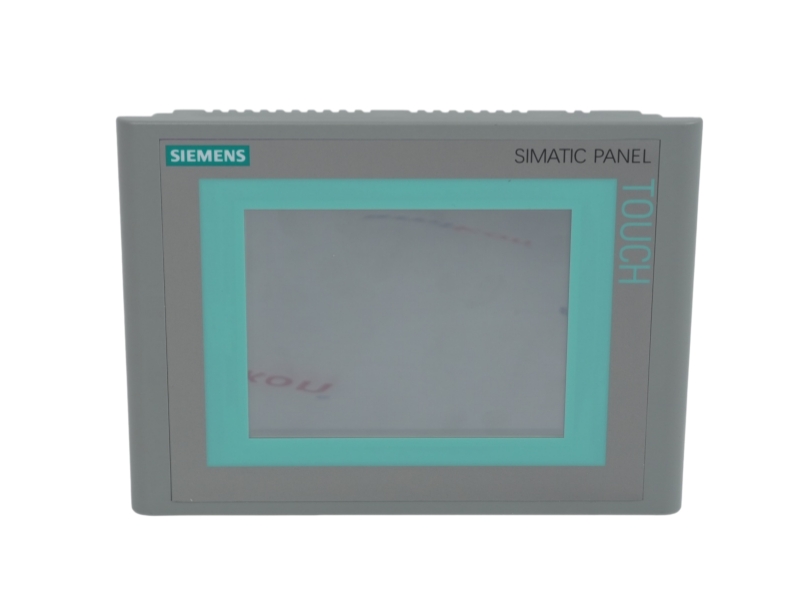

The Siemens 6AV6642-0EA01-3AX0 is a SIMATIC MP 177 6-inch Touch Multi Panel for machine visualization and local operator control. Siemens identifies a 5.7-inch TFT display, retentive memory and 2 MB configuration memory, with engineering through WinCC flexible 2008 Compact or higher. The exact order number is now handled as a spare part under PM410: Product cancellation. Procurement and replacement planning should verify the complete suffix, installed project backup, engineering software, hardware revision, panel cutout, power and connector arrangement, operating environment and readable product label. Any migration to a newer HMI requires a separate project and mechanical compatibility review.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM410: Product cancellation; effective 2023-10-01 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AV6642-0EA01-3AX0 |
| Product Type | Touch Multi Panel |
| Product Designation | SIMATIC MP 177 6-inch Touch |
| Display | 5.7-inch TFT touch display |
| Memory Function | Retentive memory |
| Configuration Memory | 2 MB |
| Engineering Software | WinCC flexible 2008 Compact or higher |
| Official Lifecycle | PM410: Product cancellation |
| Lifecycle Effective Date | 2023-10-01 |
| Sales Position | Spare part |
| Net Weight | 1.025 kg |
| Country of Origin | GERMANY |
| Machine Visualization | Displays operating states, process values and alarms in an established SIMATIC HMI project. |
|---|---|
| Local Operator Control | Supports touch-based operation at the machine or production cell. |
| Maintenance Replacement | Used where the installed project and mechanical arrangement must remain aligned with an MP 177 panel. |
| Migration Planning | A newer panel requires review of project conversion, display format, panel cutout, connectors and functions. |
| 01 · Complete Identity | Match every character in 6AV6642-0EA01-3AX0 with the installed panel and product label. |
|---|---|
| 02 · Project Backup | Confirm that the original HMI project, recipes and required transfer information are available. |
| 03 · Engineering Software | Verify WinCC flexible 2008 Compact or higher and the project conversion path. |
| 04 · Mechanical Fit | Check panel cutout, mounting hardware, depth and surrounding cabinet space. |
| 05 · Electrical Connections | Verify supply, grounding, communication connectors and cable arrangement from installation records. |

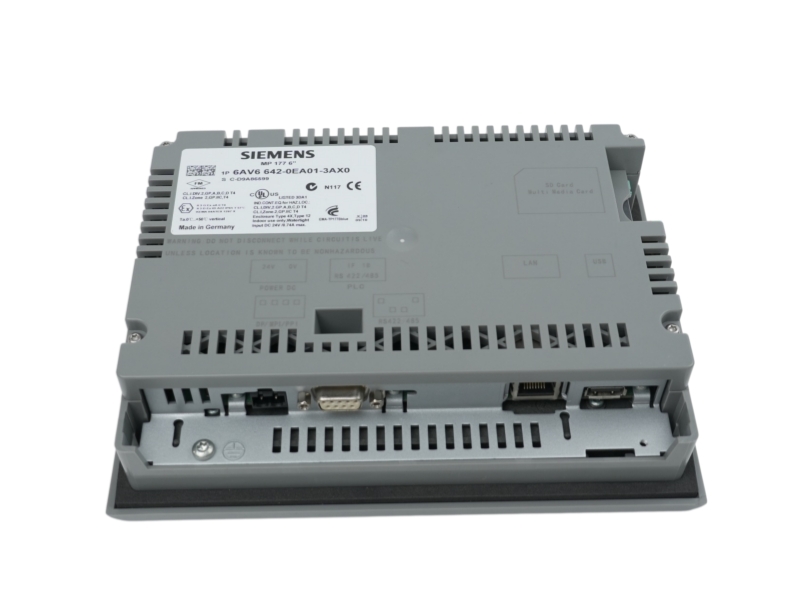

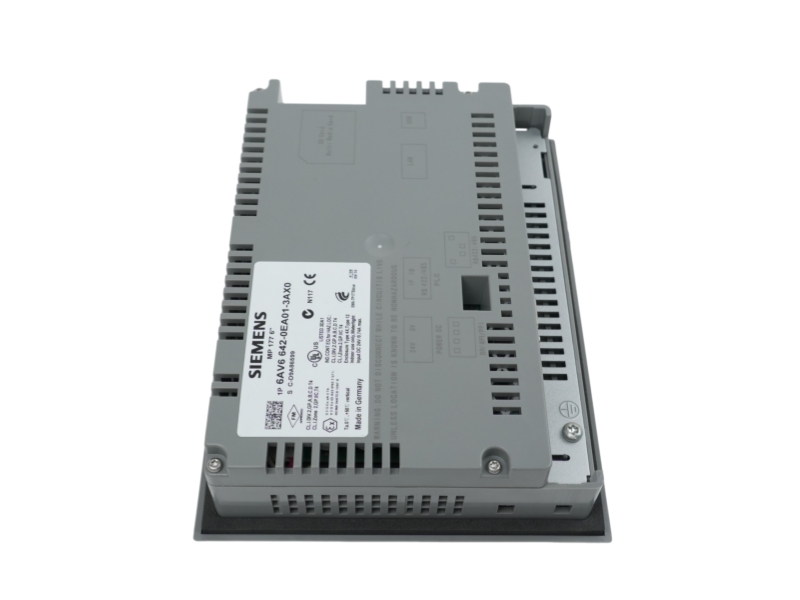

| 06 · Revision Evidence | Review hardware revision, label, rear connectors, bezel, touch surface and packaging photos. |
Siemens Industry Mall lists 6AV6642-0EA01-3AX0 as PM410: Product cancellation, effective 2023-10-01, and identifies the unit as a spare part. This status is not described as Discontinued. Siemens lifecycle documentation lists a P.M490 target of 2026-10-01.
It identifies the SIMATIC MP 177 6-inch Touch Multi Panel with retentive memory.
Siemens specifies a 5.7-inch TFT touch display and 2 MB configuration memory.
The official product description specifies WinCC flexible 2008 Compact or higher.
Siemens uses PM410: Product cancellation, effective 2023-10-01. The page does not replace that wording with Discontinued.
Verify the suffix, hardware revision, project backup, software, cutout, connectors, power and required functions.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS HMI PROCUREMENT SUPPORT
Model verification, project-aware compatibility review, inspection evidence, protective handling and international shipment coordination.
Complete suffix, lifecycle wording and requested HMI configuration are reviewed before order handling.
Label, hardware revision, project evidence, connectors and visible condition are aligned with the request.
Touch surface, bezel and connectors are protected before documented shipment coordination.
| 01 | Model and suffix verification | The complete order code is checked character by character against available labels and documentation. |
|---|---|---|
| 02 | Condition confirmation | Visible condition, touch surface, bezel, housing and supplied accessories are reviewed. |
| 03 | Technical compatibility review | Project software, hardware revision, cutout, connectors and application requirements are compared. |
| 04 | Product and label photo confirmation | Readable front, rear, nameplate, connector and packaging photos can be requested before approval. |
| 05 | Protective packaging | The display surface, enclosure and connectors are protected for handling and transport. |
| 06 | Worldwide shipping | Available routes are coordinated without promising an unconfirmed delivery date. |
| 07 | Shipment tracking | Tracking information is shared after carrier acceptance. |
| 08 | Customs documentation | Commercial shipment documents are prepared for the confirmed order and destination. |
| 09 | Written warranty terms | Warranty scope is recorded in Stockoems commercial documents. |
| 10 | Return authorization process | Returns require written authorization and review of the agreed terms. |
| 11 | After-sales response | Post-shipment questions are handled with order, label, project and installation evidence. |
Check whether the supplier verifies the complete suffix, provides readable label and condition photos, records warranty terms, discusses compatibility limits and supplies traceable shipment documents.
Risks include blurred or missing labels, substituted suffixes, unsupported technical claims, unclear return terms, refusal to provide inspection evidence and payment requests that do not match the supplier identity.
