12-inch key-operated industrial HMI for machine visualization and legacy control projects.

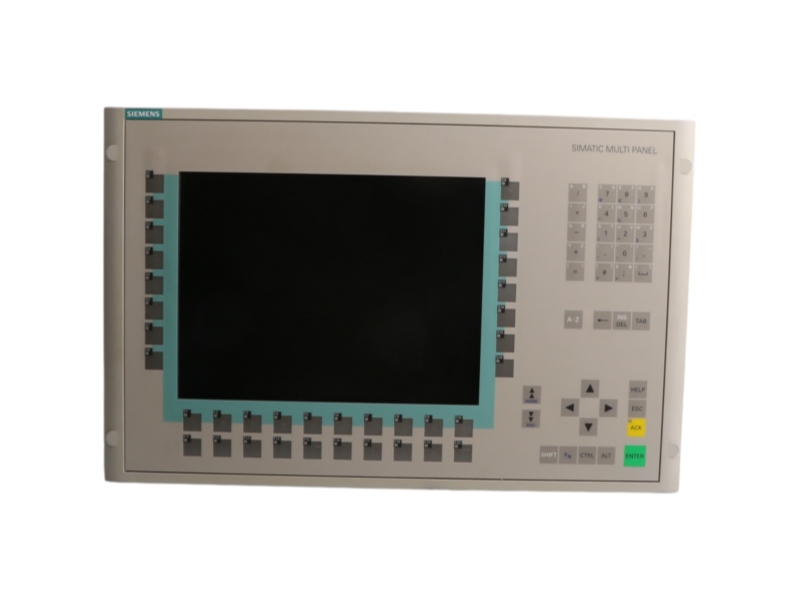

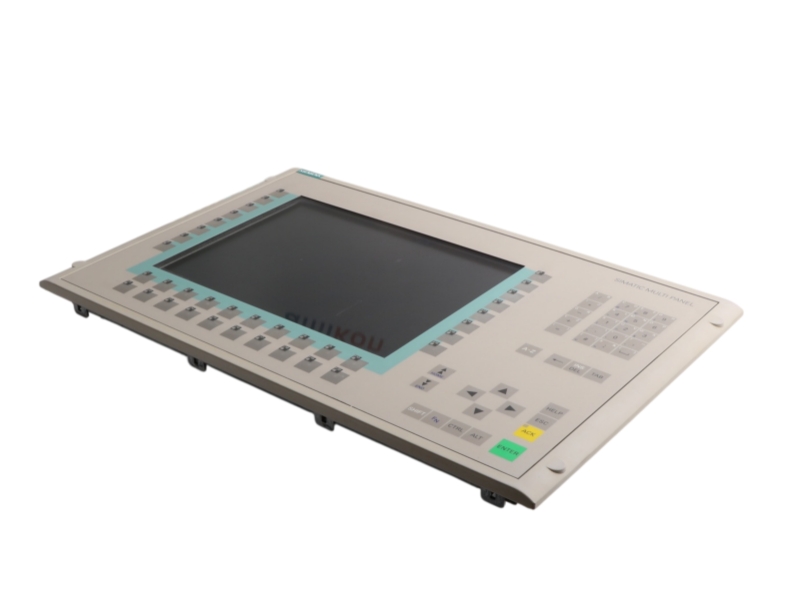

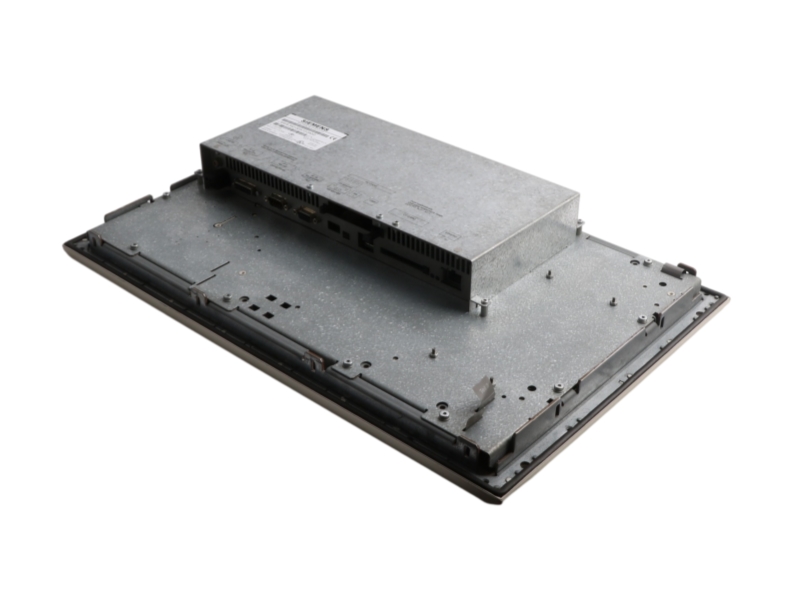

Siemens 6AV6542-0DA10-0AX0 is a SIMATIC Multi Panel MP 370 with a 12.1-inch color TFT display and membrane-key operation. The panel combines visualization and operator control for machines and plant sections using Windows CE 3.0. Siemens specifies 800 × 600 resolution, 256 colors, 36 illuminated function keys, industrial serial communications, Ethernet, USB and removable memory interfaces. It is configurable with ProTool from V5.2 SP3. Because Siemens lists this item as a discontinued spare part deleted without replacement, buyers should verify the complete suffix, panel cutout, connector set, project backup, software version, communication drivers and readable product-label photographs before replacement.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM500: Discontinued Product or end of PLM & Support |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6AV6542-0DA10-0AX0 |
| Product Type | SIMATIC Multi Panel MP 370 12-inch key version |
| Display | 12.1-inch color TFT, 256 colors, 800 × 600 pixels |
| Operator Controls | Membrane keyboard; 36 function keys, all with LEDs |
| Operating System | Windows CE 3.0 |
| Configuration Software | ProTool from Version V5.2 SP3 |
| Serial Interfaces | 1 × TTY, 2 × RS232, 1 × RS422 and 1 × RS485 |
| Network Interface | 1 × Ethernet RJ45 |
| Peripheral and Storage Interfaces | 1 × USB, 1 × PC Card slot and 1 × CF Card slot |
| Degree of Protection | Front IP65; rear IP20 |
| Operating Temperature | 0 °C to 50 °C |
| Mounting | Vertical; up to 35° inclination without external ventilation |
| Power Data | DC supply type; typical active power input 28 W |
| Net Weight | 6.356 kg |
| Country of Origin | GERMANY |
| Application | Fit Consideration |
|---|---|
| Machine visualization | Displays process values, messages and operator screens in an engineered MP 370 project. |
| Key-operated machine control | Supports operation where membrane keys and illuminated function keys are required. |
| Legacy project maintenance | Maintains an existing Windows CE and ProTool-based installation after project-file verification. |
| Exact replacement work | Replaces the same complete order number only after panel, connector and software checks. |
Siemens identifies 6AV6542-0DA10-0AX0 as PM500: Discontinued Product or end of PLM & Support. The official product record also states that the product was deleted without replacement. No direct replacement is claimed on this page.
It is the key-operated 12-inch SIMATIC Multi Panel MP 370 with a color TFT display and Windows CE 3.0.
No. The confirmed configuration uses a membrane keyboard with 36 illuminated function keys.
Siemens specifies a 12.1-inch color TFT display with 256 colors and 800 × 600 pixel resolution.
The official product description states that it is configurable with ProTool from Version V5.2 SP3.
Yes. Siemens identifies the exact model as PM500: Discontinued Product or end of PLM & Support.
Verify the full suffix, panel cutout, mounting depth, connectors, DC supply, project backup, software version and communication drivers.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Verification, inspection coordination, protective handling and worldwide logistics for Siemens 6AV6542-0DA10-0AX0.
| Stage | Service Content |
|---|---|
| 1 · Model and suffix verification | Match 6AV6542-0DA10-0AX0 exactly against the inquiry, product label and packaging. |
| 2 · Condition confirmation | Review the display, membrane keys, housing, rear connectors, mounting hardware and visible condition. |
| 3 · Technical compatibility review | Check the MP 370 project, ProTool version, communications, DC supply, cutout and connector arrangement. |
| 4 · Product and label photo confirmation | Request readable front, nameplate, rear-interface and packaging photographs when available. |
| Protective Packaging | The display surface, keypad, housing and connectors are protected against impact, moisture and uncontrolled movement. |
| Worldwide Shipping | Shipping options are coordinated after destination, quantity, package requirements and documentation scope are reviewed. |
| Shipment Tracking | Tracking information is shared after carrier acceptance for traceable logistics follow-up. |
| Customs Documentation | Commercial documents are prepared for the confirmed destination and transaction scope. |
Our workflow combines model review, label verification, visual inspection, packaging checks, logistics coordination and document preparation. Written warranty terms are supplied with the confirmed transaction. Any return must follow the return authorization process before goods are sent back. After-sales response is coordinated through the same sales channel using the order code, shipment details, photographs and a clear issue description.
Look for exact suffix verification, readable label evidence, clear condition terms, compatibility questions, written warranty terms and traceable communication.
Request the complete order code, quantity, condition statement, inspection photographs, packaging plan, shipping options, documentation scope and return terms.
Check the panel cutout, keypad configuration, serial and Ethernet interfaces, DC supply, project backup, ProTool version and communication drivers.
Warning signs include altered suffixes, unreadable labels, specifications copied from a touch-panel variant, unsupported replacement claims, vague warranty language and unverifiable stock promises.
Send the complete part number, required quantity, destination country and available product or label photos for a structured procurement review.
