6AV2128-3MB06-0AX1 Overview

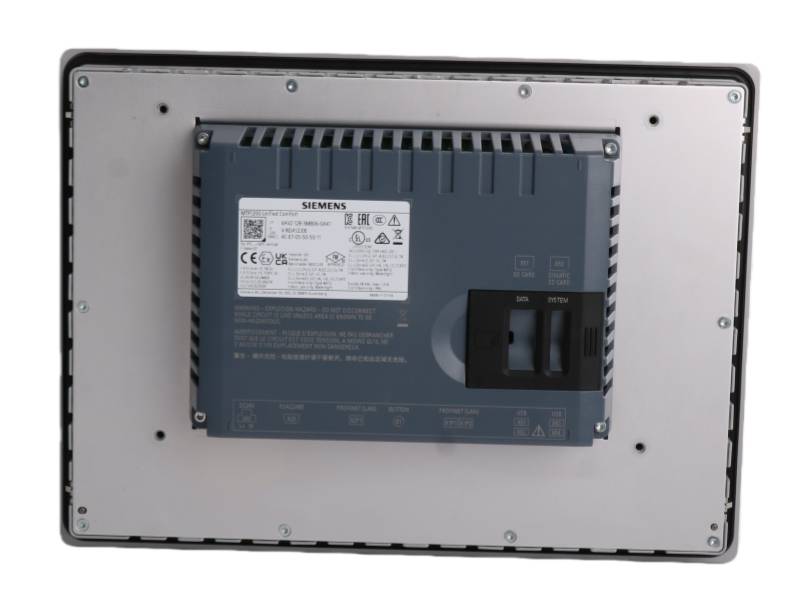

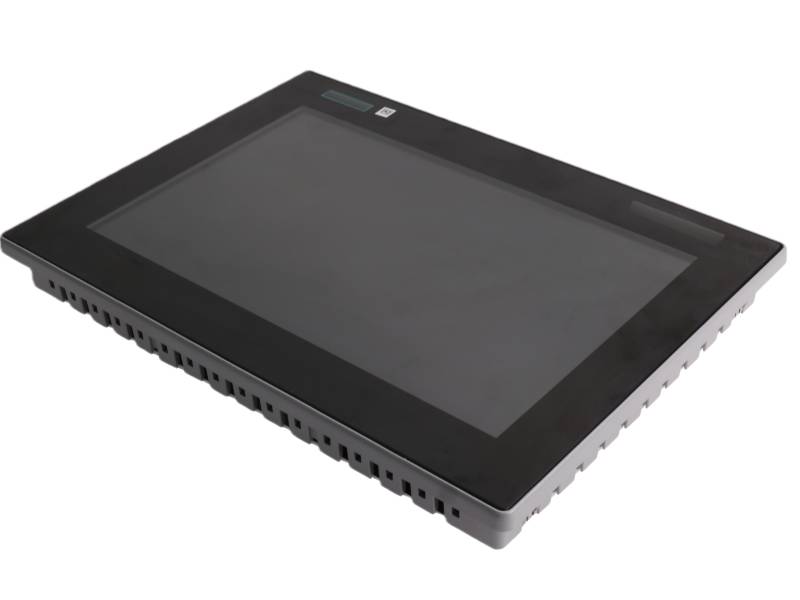

The 6AV2128-3MB06-0AX1 Siemens Unified Comfort Panel is a 12.1-inch TFT Unified Comfort Panel supporting multi-touch operation with 16 million colors. It features a PROFINET interface and is configured via WinCC Unified Comfort V16, designed for 24V DC vertical mounting.

Product Features of Siemens 6AV2128-3MB06-0AX1

●High-Resolution Touch Display: Features a 12.1-inch widescreen TFT display with 1280 x 800 pixels, 16 million colors, and multi-touch operation.

●Versatile Mounting Options: Supports both portrait and landscape installation with vertical mounting capability and a maximum tilt angle of 35°.

●PROFINET Integration: Equipped with a PROFINET interface for seamless industrial communication and network connectivity.

●Wide Power Compatibility: Operates on 24 V DC with a broad input voltage range from 19.2 V to 28.8 V, ensuring stable performance.

●Extended Backlight Life: Backlight MTBF of 50,000 hours at 25°C with adjustable brightness from 5% to 100% for varied lighting conditions.

FAQ

Q1: What is the screen size and resolution of this HMI panel?

A1: It features a 12.1-inch widescreen TFT display with a resolution of 1280 × 800 pixels and supports 16 million colors.

Q2: Does this panel support multi-touch operation?

A2: Yes, it is designed as a multi-touch screen with on-screen numeric and alphanumeric keyboards.

Q3: What communication interface is integrated into this panel?

A3: It includes a PROFINET interface for industrial network communication and integration.

Q4: What is the operating voltage range of this panel?

A4: It operates on 24 V DC, with an acceptable voltage range from 19.2 V to 28.8 V.

Q5: Can this panel be mounted in both portrait and landscape orientations?

A5: Yes, it supports flexible mounting in both portrait and landscape formats with a maximum tilt angle of 35°.
