Nine-inch key-touch visualization with PROFINET connectivity for machine-level operator tasks.

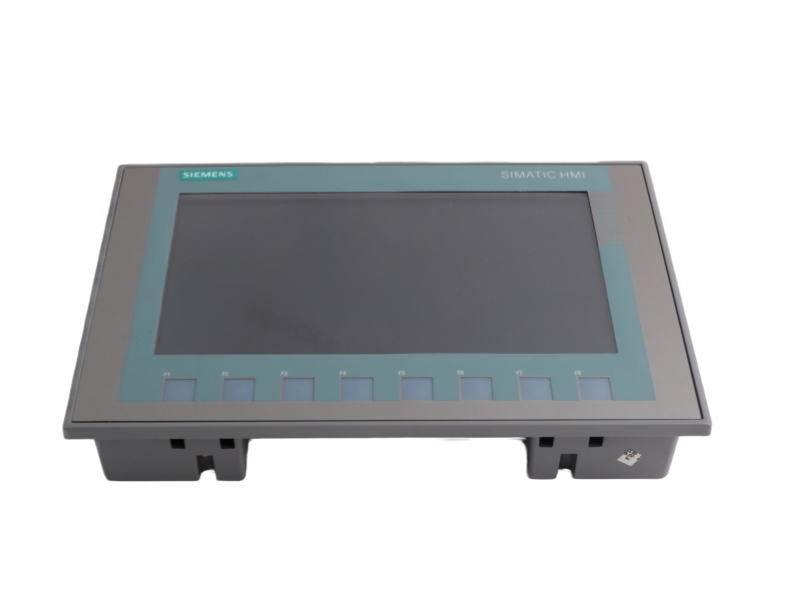

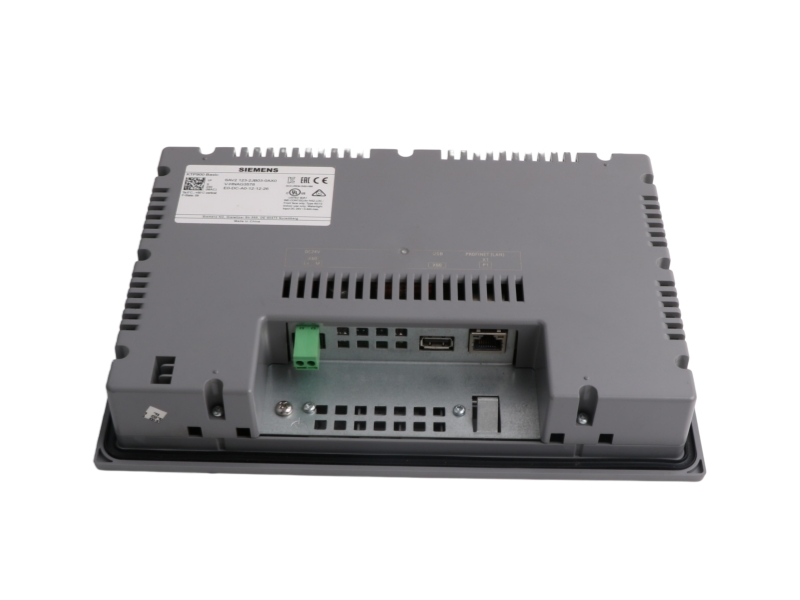

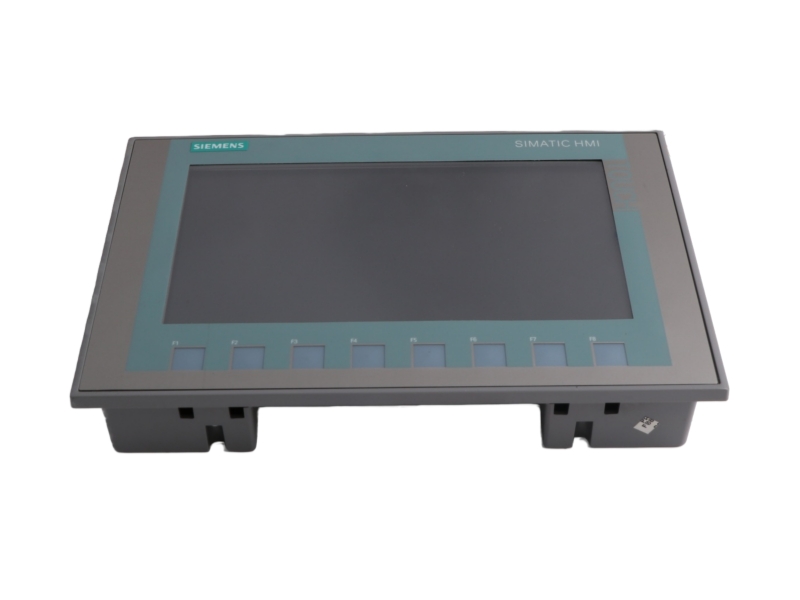

The Siemens 6AV2123-2JB03-0AX0 is a SIMATIC HMI KTP900 Basic color PN panel for machine visualization and operator interaction. Its 9-inch TFT widescreen display provides 800 x 480 pixel resolution and 65,536 colors, while an analog-resistive touchscreen and eight function keys support direct operation. The panel uses a PROFINET interface and is configurable from WinCC Basic V13 or STEP 7 Basic V13. It accepts 24 V DC power within the officially specified range and may be mounted in landscape or portrait orientation. Project version, network addressing and replacement compatibility should be checked before installation.
800 x 480 pixels and 65,536 colors
Analog-resistive touch and 8 function keys
PROFINET interface
WinCC Basic V13 / STEP 7 Basic V13
| Parameter | Official value | Engineering relevance |
|---|---|---|
| Manufacturer | Siemens | Official manufacturer |
| Complete part number | 6AV2123-2JB03-0AX0 | Exact order code |
| Type | KTP900 Basic color PN | Basic Panel identity |
| Display | 9-inch TFT widescreen | Visualization |
| Resolution | 800 x 480 pixels | Project design |
| Colors | 65,536 | Graphic capability |
| Function keys | 8 | Physical input |
| Touch | Analog-resistive | Screen operation |
| Communication | PROFINET | Controller link |
| Engineering | WinCC Basic V13 / STEP 7 Basic V13 | Project compatibility |
| Supply | 24 V DC, 19.2 to 28.8 V | Power design |
| Mounting | Landscape or portrait | Panel layout |
Exact KTP900 Basic color PN identity confirmed in current Siemens technical data.
Rated 24 V DC supply and portrait or landscape panel mounting are supported.
Match the complete suffix, revision, accessories, engineering project and connected system before installation.
A 9-inch TFT widescreen display.
Yes, analog-resistive touch plus eight function keys.
PROFINET.
WinCC Basic V13 or STEP 7 Basic V13.
Confirm suffix, project version, cutout, network settings and backup.
Product Condition: Original new | Availability: In stock | Warranty: With 1 year warranty
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments. Confirm the complete suffix, hardware revision, firmware, accessories and system compatibility before ordering.
