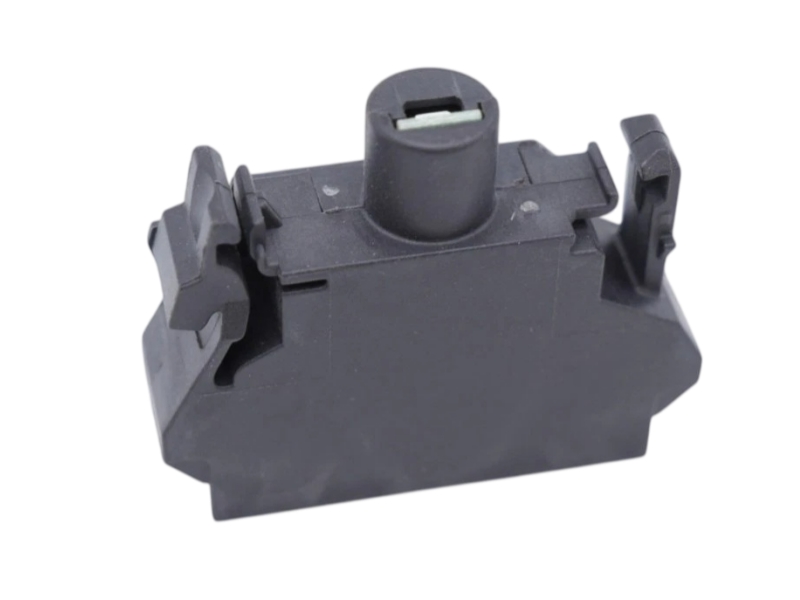

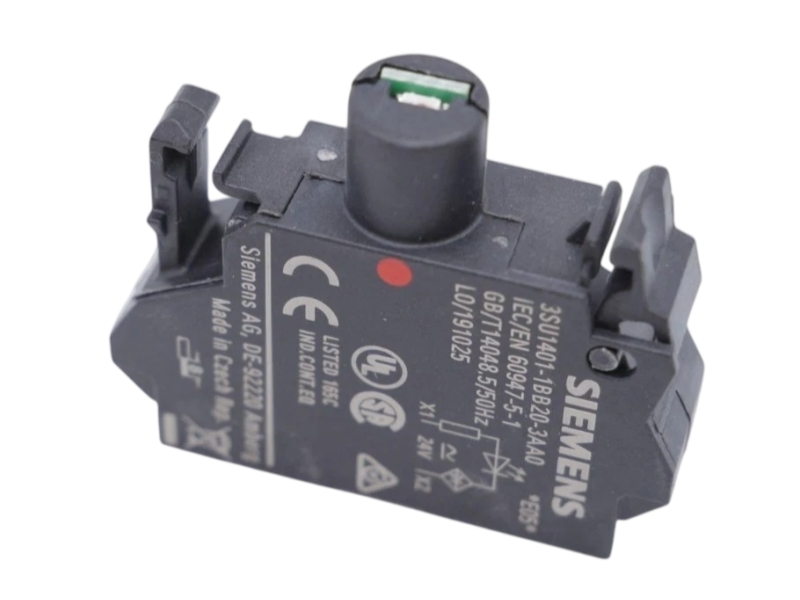

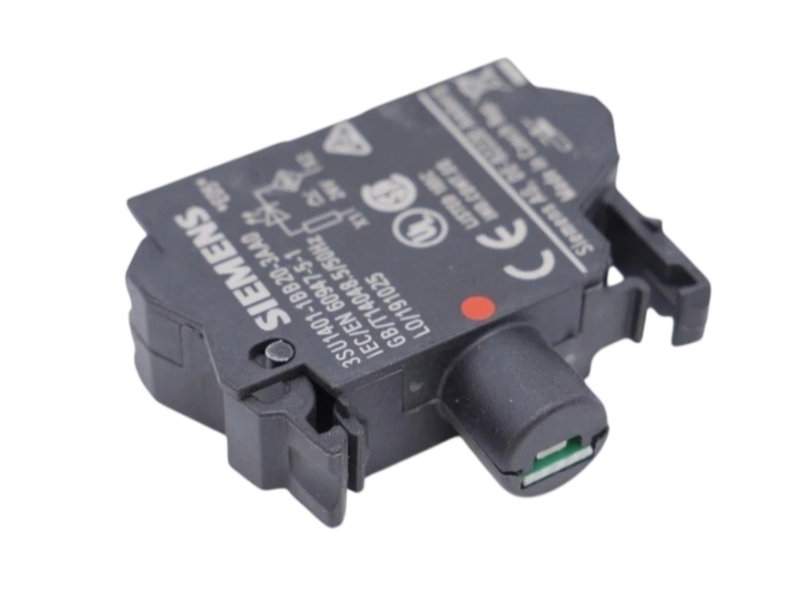

24 V AC/DC integrated red LED module with spring-loaded terminals for front plate mounting.
Siemens 3SU1401-1BB20-3AA0 is a SIRIUS ACT LED module for illuminated pushbuttons and indicator assemblies. The complete order number identifies an integrated red LED rated for 24 V AC/DC, spring-loaded conductor termination and rear installation on a front-plate holder. Its compact signaling function supports machine panels, operator stations and industrial control enclosures where a clear red visual indication is required. Procurement should confirm the full suffix, voltage, color, terminal technology and mounting arrangement before replacement.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 3SU1401-1BB20-3AA0 |
| Product Family | SIRIUS ACT modules |
| Product Lifecycle | PM300: Active Product |
| Ordering Note | Minimum order quantity 5 pieces or a multiple thereof |
| Technical Item | Official Specification |
|---|---|
| Manufacturer | Siemens |
| Product family | SIRIUS ACT |
| Product designation | LED module |
| Product type designation | 3SU1 |
| Light source | Integrated LED |
| LED color | Red |
| Rated operating voltage | 24 V AC/DC |
| Connection method | Spring-loaded terminal |
| Mounting method | Front plate mounting |
| Rated insulation voltage | 320 V |
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Maximum consumed current | 25 mA |
| Enclosure protection | IP40 |
| Terminal protection | IP20 |
| Typical operating period | 100,000 h |
| Shock resistance | 15 g / 11 ms, sinusoidal half-wave per IEC 60068-2-27 |
| Vibration resistance | 10 to 500 Hz, 5 g per IEC 60068-2-6 |
| Net weight | 7 g |
| Minimum order quantity | 5 pieces or a multiple thereof |
Provides a red visual state indication in SIRIUS ACT illuminated pushbutton and indicator assemblies.
Supports warning, stop, fault or process-status indication in industrial operator stations.
Suitable for like-for-like replacement when voltage, color, terminal type and holder arrangement match.
It is a SIRIUS ACT LED module with an integrated red LED for 24 V AC/DC signaling circuits.
The exact model uses spring-loaded terminals for conductor connection.
Siemens specifies 24 V AC at 50 or 60 Hz and 24 V DC operation.
It is designed for front plate mounting on the rear side of a compatible SIRIUS ACT holder.
Not automatically. The required color, voltage, terminal method and signaling function must match the machine documentation.
Confirm the complete suffix, 24 V AC/DC rating, red LED, spring-loaded terminals, holder compatibility and required order quantity.
