Supply voltage：3 × 380 VAC-10 % - 3 × 500 VAC+10 %

Supply frequency：50 Hz - 60 Hz ±5 %

OUTPUT：

• Current limitation：Motor and regenerative 150 % IN, duration depending on the capacity utilization
• Internal current limitation：Imax = 0 - 150 % can be set in menu (P303 / P313),,,
• Minimum permitted brake RBRmin resistance value (4Q operation)：68 Ω
• PWM frequency：Adjustable with VFC: 4/8/12/16 kHz (P860 / P861); with CFC/SERVO fixed at 8 kHz,,,
• Speed range / resolution  nA / ΔnA：-5000 - 0 - +5000 rpm / 0.2 rpm across the entire range

GENERAL

• Power loss at PN：85 W,105 W,130 W,180 W
• Cooling air consumption：40 m³/h (24 ft³/min)
• Weight：3.5 kg (7.72 lb)
• Dimensions：W × H × D,105 × 315 × 273 mm (4.13 × 12.40 × 10.75 in)

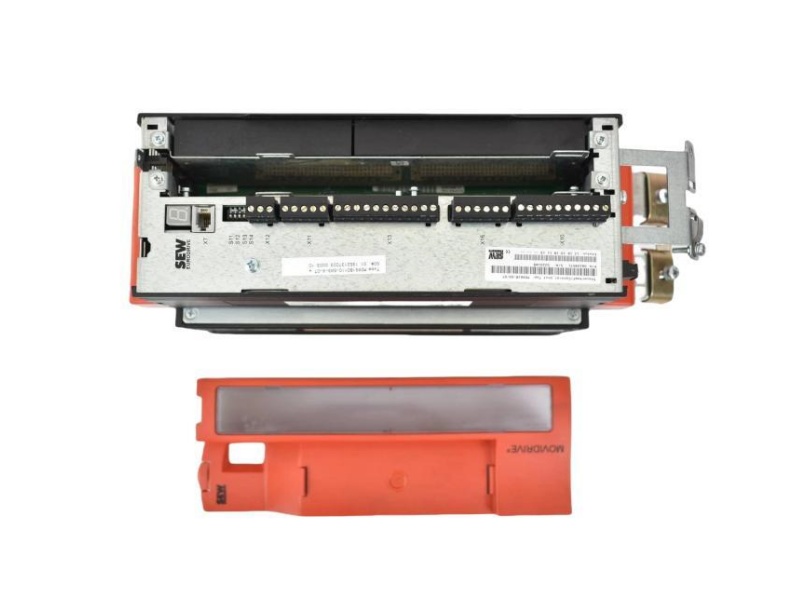

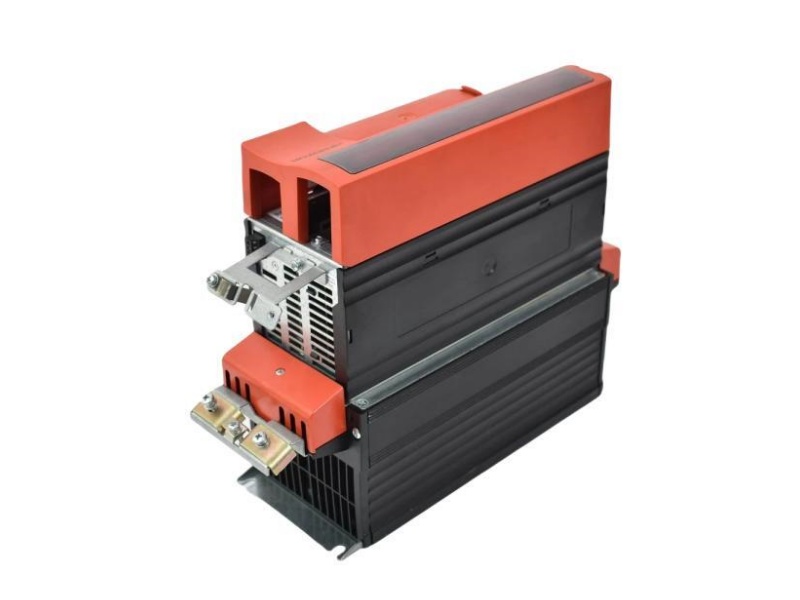

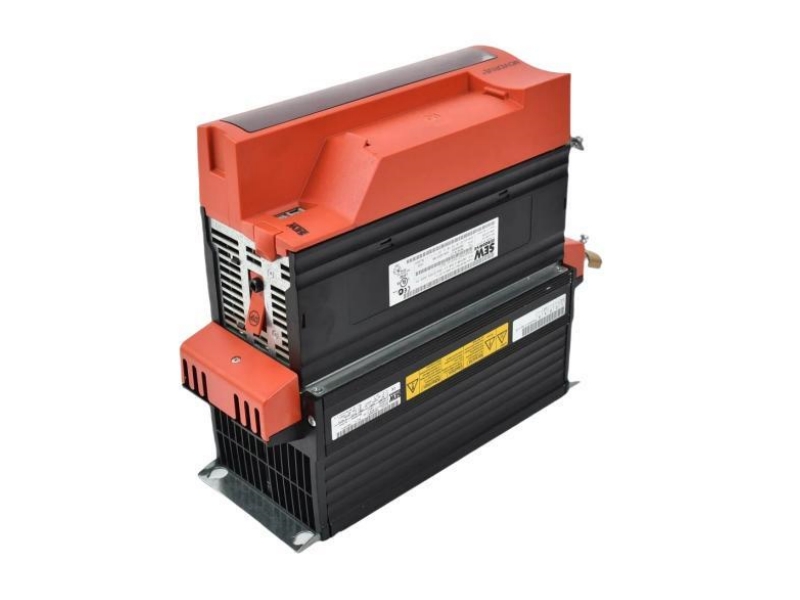

Q1: What is the SEW MDX60A0110-5A3-4-00 used for?
A1: It is used for controlling AC motors in industrial automation systems such as conveyors and production lines.

Q2: What type of power supply does this drive support?
A2: It operates on a 3-phase 380–500 VAC power supply for industrial applications.

Q3: What is the typical application capacity of this model?
A3: It is suitable for medium-power applications, around 16.8 kVA motor control systems.

Q4: Does this drive support braking functions?
A4: Yes, it features a 4-quadrant operation with an integrated brake chopper for dynamic braking.

Q5: In which industries is this drive commonly applied?
A5: It is widely used in manufacturing, material handling, packaging, and process automation industries.
