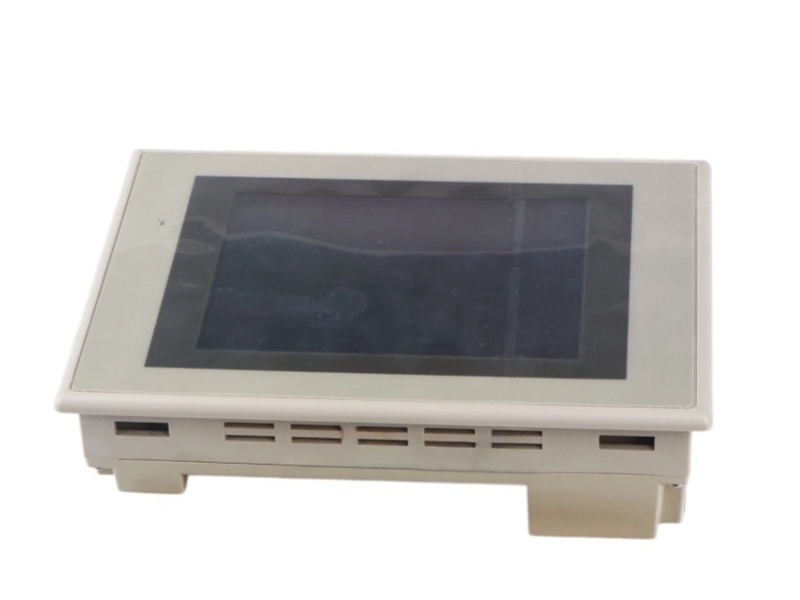

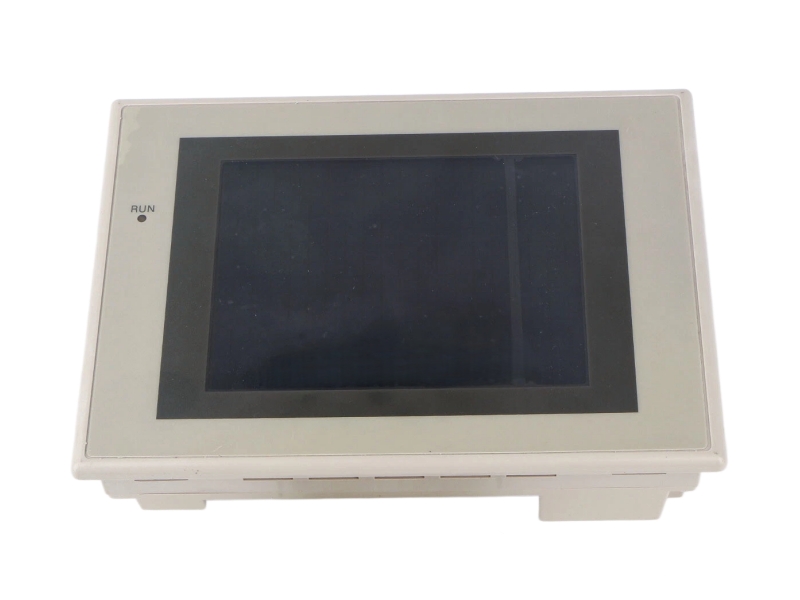

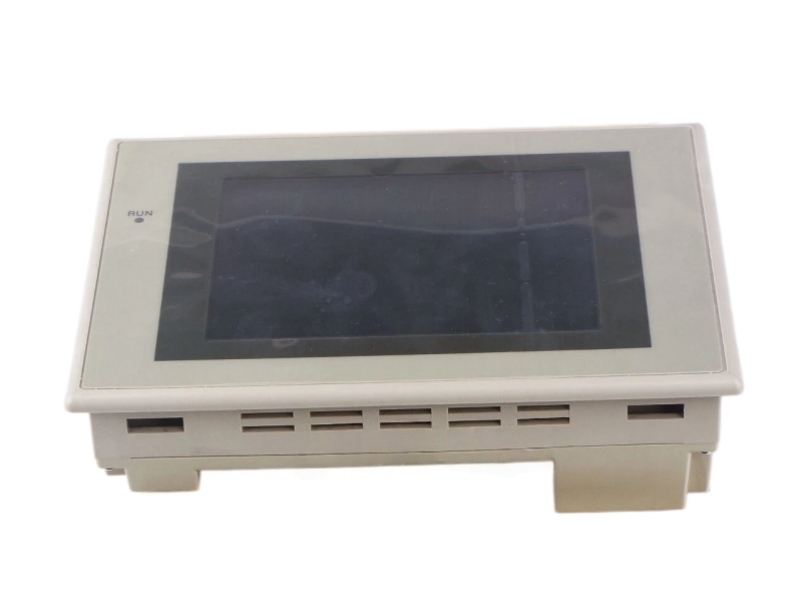

NS5-MQ00-V2 Overview
The Omron NS5-MQ00-V2 is a compact HMI touchscreen panel designed for industrial control, offering intuitive operation, reliable communication with PLCs, and efficient real-time monitoring in automation systems.
Specifications
Screen data capacity：20 Mbytes
Display colors：256 colors
Effective display area：Width 117.2 × height 88.4 mm
Input：Pressure-sensitive
Rated power supply voltage：24 VDC
Allowable voltage range：20.4 to 27.6 VDC (24 VDC ±15%)
Power consumption：25 W max. (15 W max. for the NS5)
Ambient operating temperature： 0 to 50°C
Weight：1.0 kg max
Dimensions:18.4x9x13.1cm
FAQ
Q1: What is the OMRON NS5-MQ00-V2 used for?
A1: It is used as a human-machine interface (HMI) for monitoring and controlling industrial automation systems.
Q2: What display features does this model offer?
A2: It features a 5.7-inch touchscreen with 320×240 resolution for clear operator interaction.
Q3: What communication interfaces are available?
A3: It supports multiple interfaces, including RS-232 and USB for connection with PLCs and devices.
Q4: What power supply does the NS5-MQ00-V2 require?
A4: It operates on a 24 VDC power supply, suitable for industrial environments.
Q5: Can this HMI improve operational efficiency?
A5: Yes, it provides intuitive touch control and real-time data visualization, enhancing system monitoring and operator efficiency.
