Schneider TSXCDP503 Connecting Cable

Inquiry now

TSXCDP503 Product datasheet

Model number:	TSXCDP503	Module Type：	Connecting Cable
Manufacture:	Schneider Electric	Condition：	Brand New
Range of Product:	Schneider Electric	Lead time：	In Stock
Weight:	0.4 kg	HS CODE：	8537101190
Dimension:	6.5x23.5x25cm	MOQ:	1
Product Origin:	France	System：	PLC
Discontinued on:	active	Communication Service:	Ethernet router

TSXCDP503 Functional Description

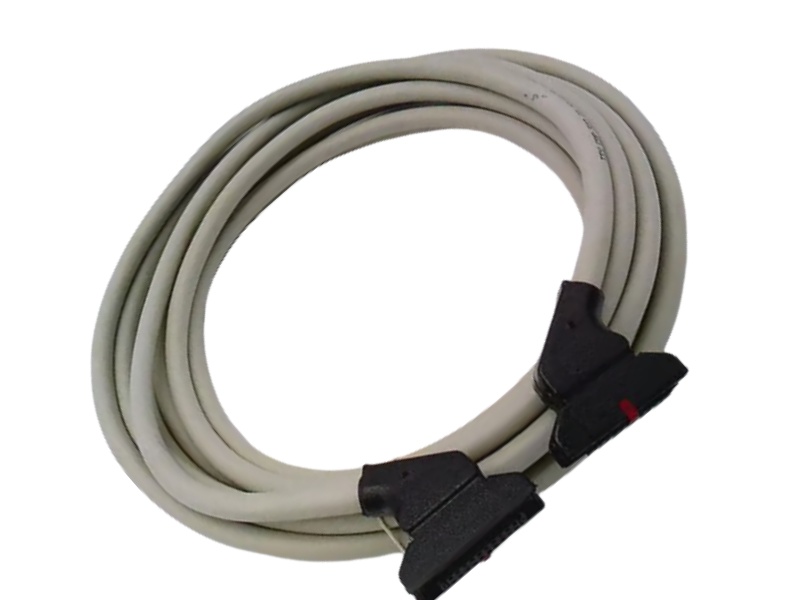

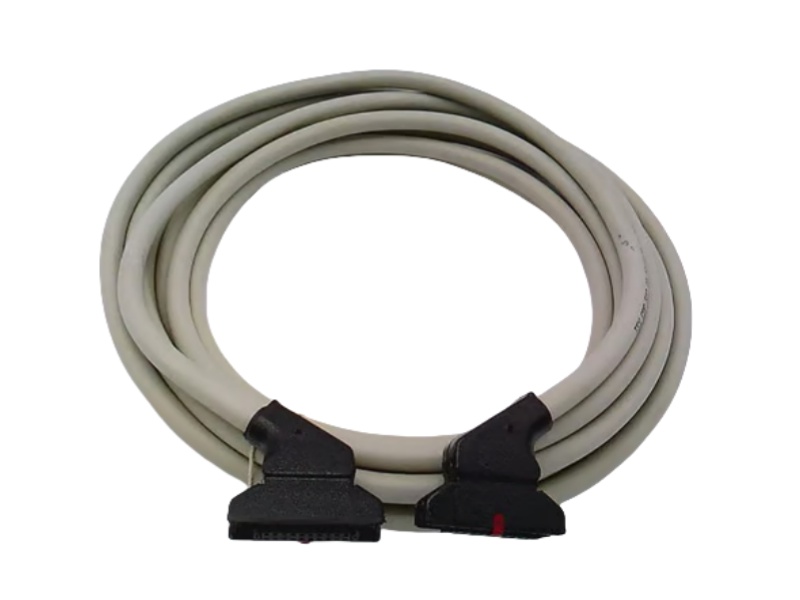

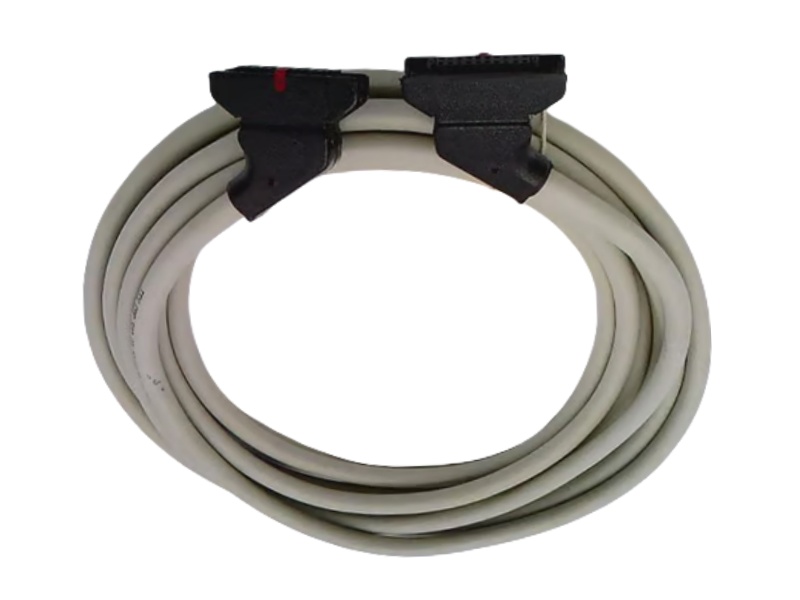

The Schneider Electric TSXCDP503 is a 5-meter connecting cable designed for use with the Modicon Premium automation series. Specifically compatible with the ABE7H16R20 sub-base, this cable offers reliable connectivity through its HE10 20-pin connectors on both the module and PLC sides. With a wire gauge of 4 AWG (shielded) and AWG 22 conductor size, the TSXCDP503 Schneider Electric PLC Cable ensures stable and interference-free communication, even in demanding industrial environments.

The TSXCDP503 connecting cable Schneider supports a maximum baud rate of 115.2 kbps over an RS-485 connection, making it suitable for high-speed data transmission in complex control systems. Its voltage rating of 30V DC max and operating temperature range from -25°C to +70°C ensure dependable performance in various environmental conditions. The bending radius of ≥50 mm also adds flexibility during installation in tight spaces.

Built to serve as a connection accessory, the Connecting Cable Schneider TSXCDP503 is compatible with a variety of Schneider Electric modules such as TSXCFY21, TSXCTY4A, TSXCTY2A, and TSXCCY1128. It meets industrial standards for durability and ease of integration into modular PLC systems.

With its French origin and reliable engineering, the Schneider TSXCDP503 Connecting Cable is a trusted component in industrial automation, ensuring seamless communication and control between devices.
