Product Overview

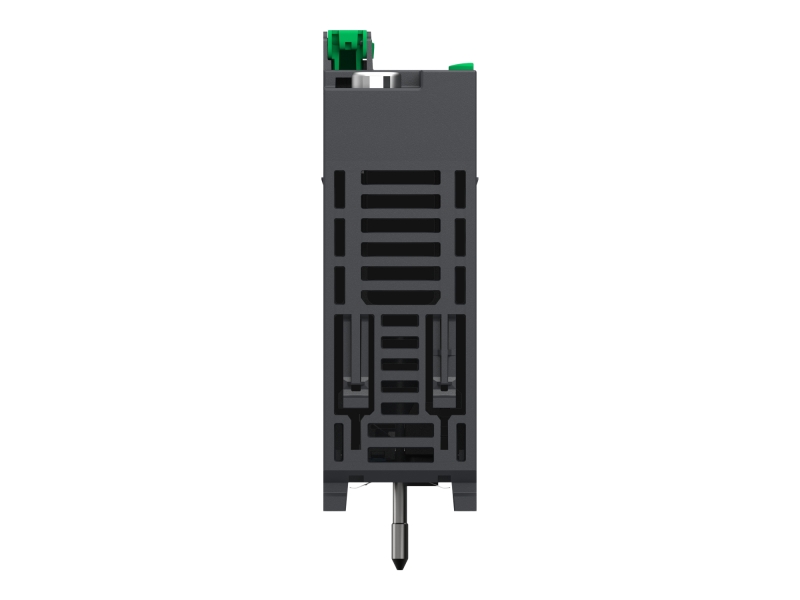

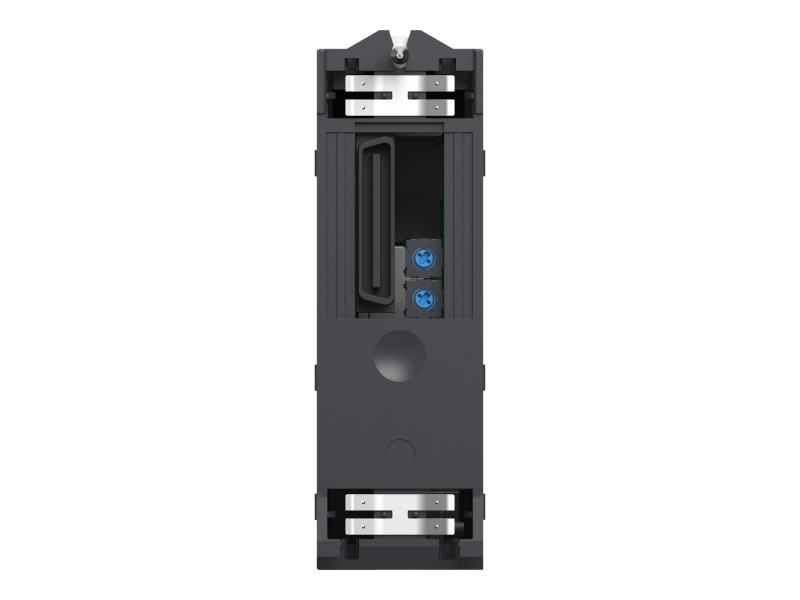

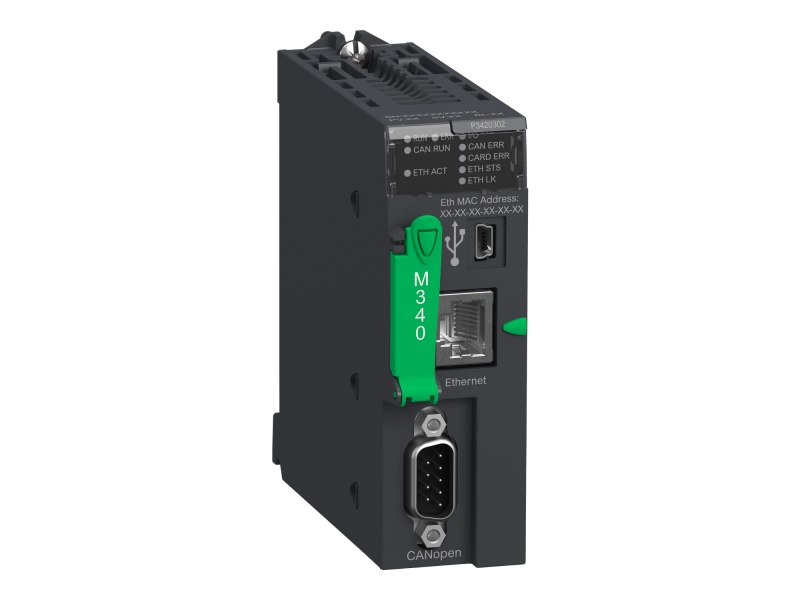

The Schneider BMXP3420302 is a Modicon M340 processor module with built-in CANopen master and Ethernet. It handles up to 1024 I/O, supports 4 racks, and offers embedded web server functionality.

Enviromental Strength

• Wide Operating Temperature: Operates reliably from 0°C to 60°C, suitable for demanding industrial environments.

• Broad Humidity Tolerance: Supports 10% to 95% relative humidity without condensation, ensuring stable performance.

• IP20 Protection: Rated IP20 for protection against solid objects, safe for control cabinet installation.

• Hazardous Location Approved: Certified for Class I Division 2 hazardous locations, expanding application scope.

• Robust Certifications: Compliant with CE, UL, CSA, RCM, EAC, and Merchant Navy standards for global use.

• Green Premium Product: RoHS compliant, REACH SVHC-free, and designed with end-of-life WEEE disposal considerations.

FAQ

Q1: What are the CANopen communication features supported by the BMXP3420302?
A1: It supports Network Management (NMT), Process Data Object (PDO), Service Data Object (SDO), and SYNC, EMCY, TIME special functions.

Q2: What is the maximum number of CANopen slaves the BMXP3420302 can manage?
A2: It can manage up to 63 CANopen slaves on the integrated CANopen master bus.

Q3: What are the CANopen transmission distances for different baud rates?
A3: At 1 Mbit/s, distance is 20 m; at 250 kbit/s, 250 m; at 50 kbit/s, 1000 m; at 20 kbit/s, 2500 m.

Q4: What object area sizes are available on the BMXP3420302?
A4: It provides 32634 located internal bits (%Mi), 1024 internal words (%MWi), and 256 constant words (%KWi) by default.

Q5: What types of tasks does the BMXP3420302 support in its application structure?
A5: It supports one cyclic/periodic master task, one periodic fast task, and 64 event tasks.
