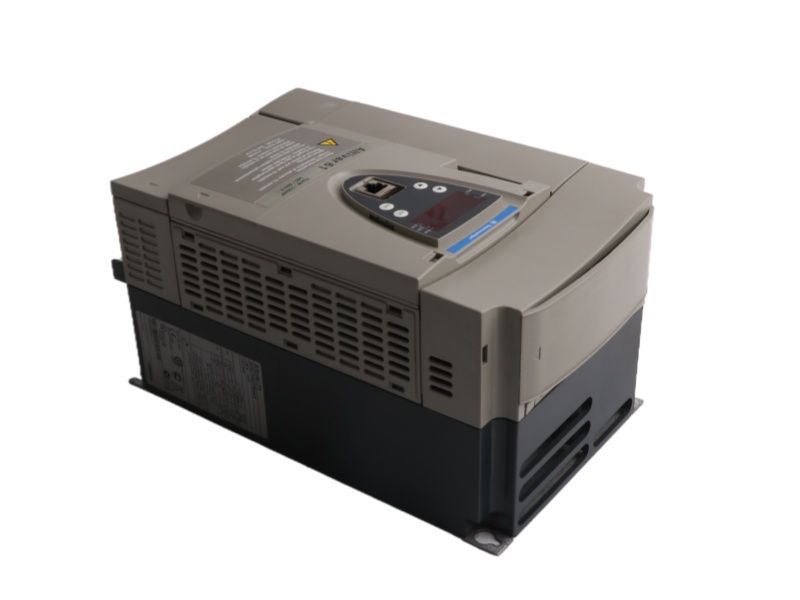

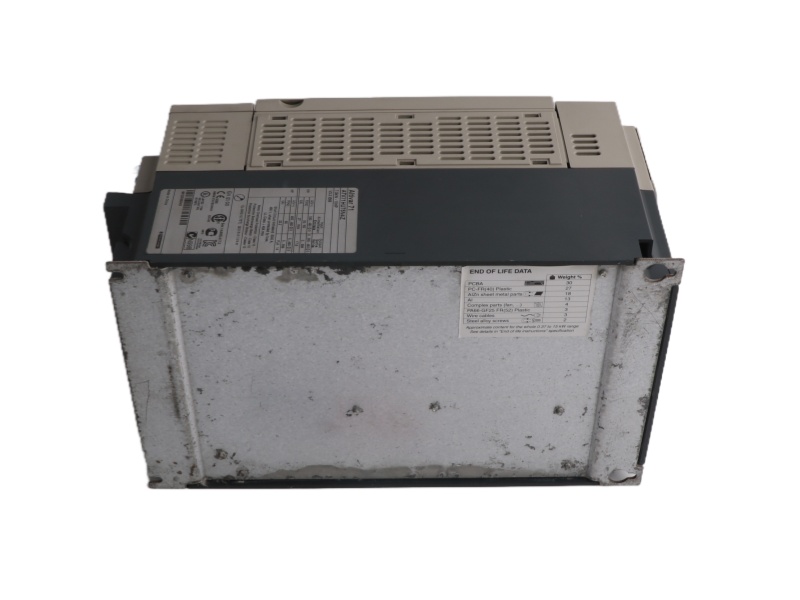

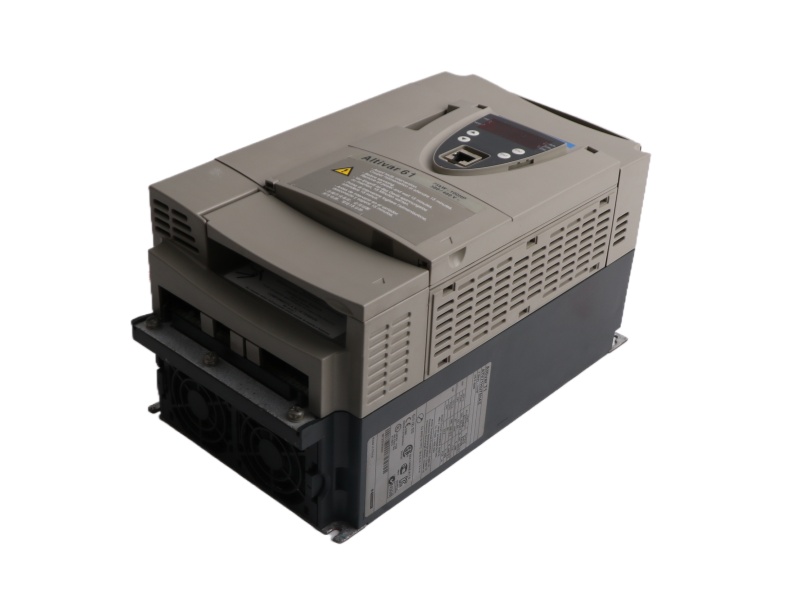

The Schneider Variable Speed Drive ATV71HD22N4Z is a 22 kW (30 hp) variable speed drive engineered for complex, high-power industrial machinery requiring robust performance. Operating on a standard three-phase power supply of 380V to 480V with a tolerance of -15% to +10%, this drive demonstrates remarkable electrical flexibility. The electrical characteristics of the ATV71HD22N4Z Schneider IN STOCK include a line current of 42A at 480V and 50A at 380V, with an apparent power rating of 32.9 kVA, ensuring stable operation under varying load conditions.

A significant feature of the Variable Speed Drive ATV71HD22N4Z is its exceptional flexibility in motor installation, supporting cable lengths up to 100 meters with shielded cable or 200 meters with unshielded cable. This extended reach provides substantial advantages in industrial layout planning. The drive comes with an integrated EMC filter and is designed with a heat sink for effective thermal management, while the variant specified operates without a remote graphic terminal, relying instead on its communication interfaces for configuration and monitoring.

The construction of the Drive ATV71HD22N4ZSchneider emphasizes durability and efficient heat dissipation, crucial for maintaining performance in demanding applications where continuous operation is essential. Its design incorporates advanced cooling technology that ensures reliable functioning even under high ambient temperatures. The robust enclosure protects internal components from industrial contaminants, guaranteeing long-term operational integrity.

In application, the primary strength of the SCHNEIDER ATV71HD22N4Z lies in its ability to deliver precise speed and torque control for three-phase motors in challenging industrial environments. The drive's sophisticated control algorithms optimize energy consumption while reducing mechanical stress on driven equipment. The engineering excellence embodied in it ensures it meets the rigorous demands of modern industrial automation, providing both operational reliability and energy efficiency.
