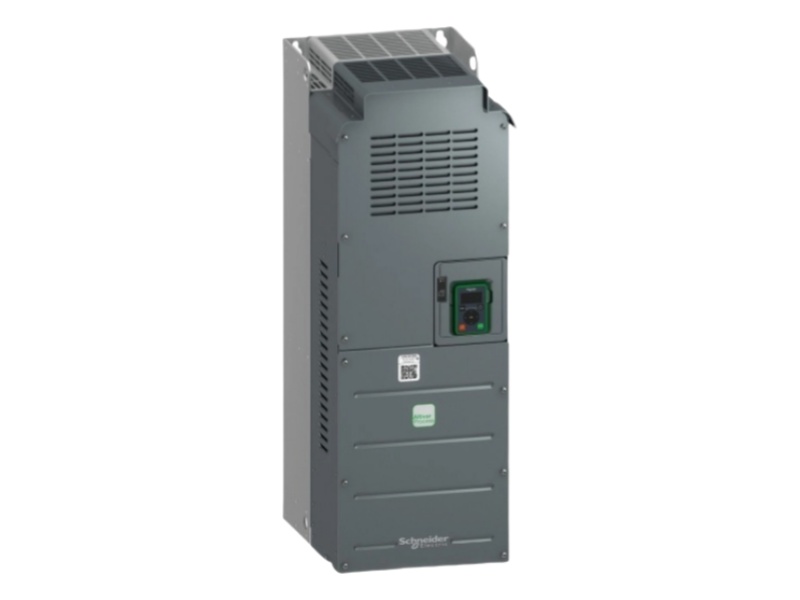

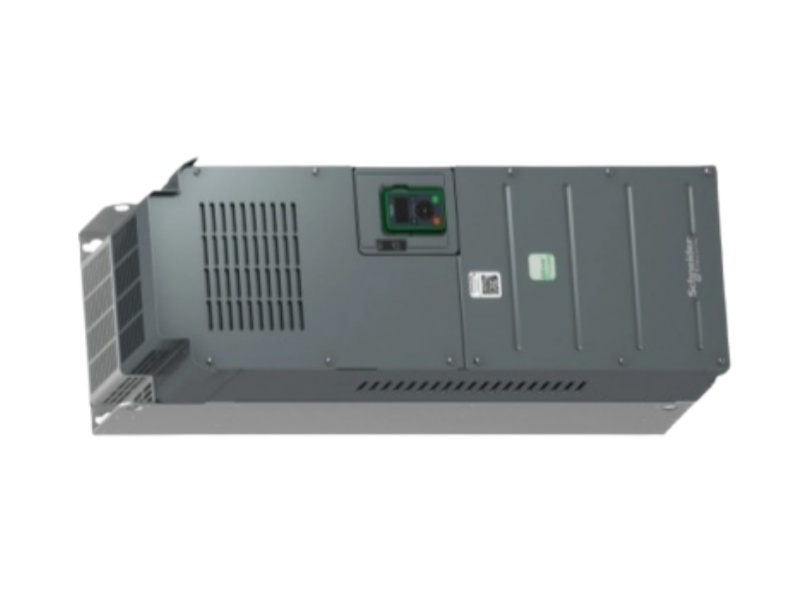

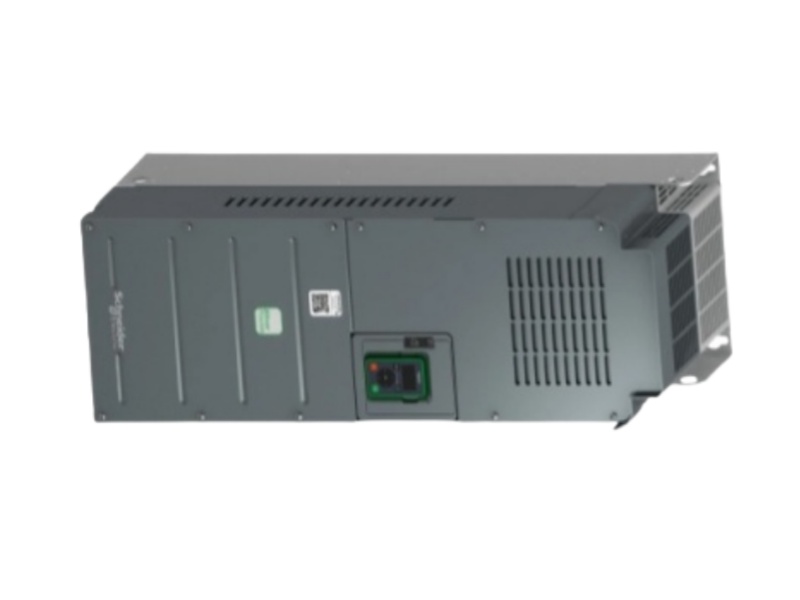

Schneider ATV610C16N4 frequency converter is a robust variable speed drive from the Easy Altivar 610 range, engineered to control three-phase asynchronous and synchronous motors with a power rating of up to 160 kW. This cabinet-mount unit is specifically designed for demanding applications such as fans, pumps, compressors, and conveyors, offering reliable performance in sectors like water treatment, oil and gas. Its plug-and-play design, with factory-preset parameters, ensures quick commissioning and reduces setup time significantly.

Operating on a 380-460V AC supply, the ATV610C16N4 delivers high performance with a continuous output current of 302 A for normal duty applications. It features multiple motor control profiles, including constant torque and variable torque, and provides an output frequency range from 0.1 to 500 Hz for precise speed regulation. The integrated EMC filter, conforming to IEC 61800-3 category C3, and its IP20 protection rating make ATV610C16N4 Schneider Variable Speed Drive suitable for various industrial environments.

The drive's flexibility is further enhanced by its 16 preset speeds and adjustable switching frequency from 1 to 8 kHz. For system integration, the standard Modbus serial communication port is complemented by an optional slot for expansion cards, supporting protocols like Profibus DP V1 or additional I/O extensions. This makes 160kW ATV610C16N4 Schneider highly adaptable to different automation architectures.

With dimensions of 320x852x390mm and a weight of 82kg, SCHNEIDER ATV610C16N4 is built for durability, employing forced convection cooling for optimal thermal management. The proven reliability and comprehensive features of the ATV610C16N4 establish it as a cornerstone for efficient motor control in process and building management systems worldwide.
