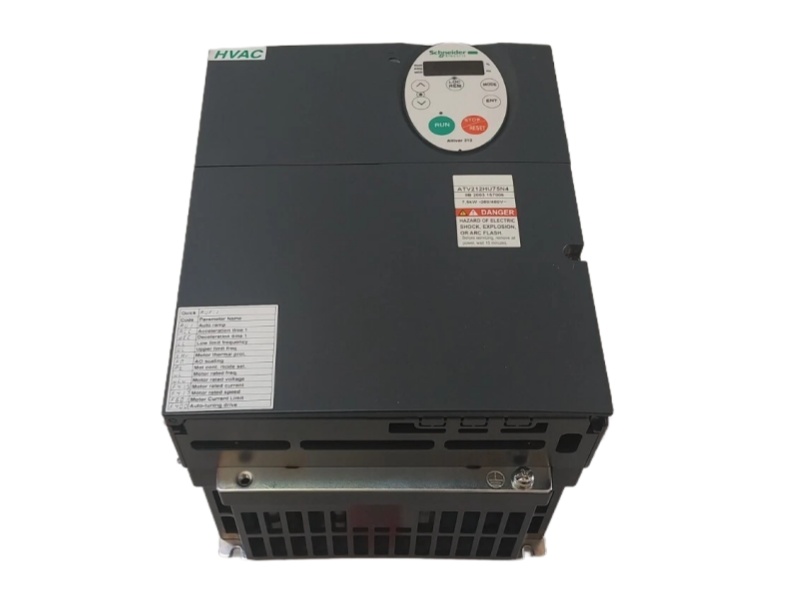

The Schneider Variable Speed Drive ATV212HU75N4 represents a robust 7.5kW variable speed drive from the Altivar 212 series, engineered for complex, high-power machinery requiring precise motor control. This specific model is designed for a three-phase power supply of 380-480V, with a maximum horsepower rating of 10hp, and comes with EMC compliance and an IP21 enclosure rating for basic environmental protection. The initial setup procedure for it involves applying input power without initiating a run command, allowing for safe configuration of critical parameters.

A fundamental step in commissioning the ATV212HU75N4 Schneider IN STOCK is to verify and set the motor's nominal frequency through the parameter reset function, typically defaulting to a 50 Hz configuration. Following this, technicians may need to input specific motor parameters if the drive's factory presets are not aligned with the connected motor's specifications, ensuring optimal performance and protection. The drive's flexibility is further demonstrated through its configurable application and I/O control functions, which can be tailored to meet the specific demands of the industrial application.

For real-time operational oversight, the Variable Speed Drive ATV212HU75N4 features an intuitive Monitoring mode, accessible by pressing the MODE key until the MON LED illuminates. This mode provides visibility into up to 30 different types of operational data, such as output frequency, current, and motor speed, which can be cycled through using the UP and DOWN keys. This immediate access to diagnostics and performance metrics is crucial for both troubleshooting and routine system checks.

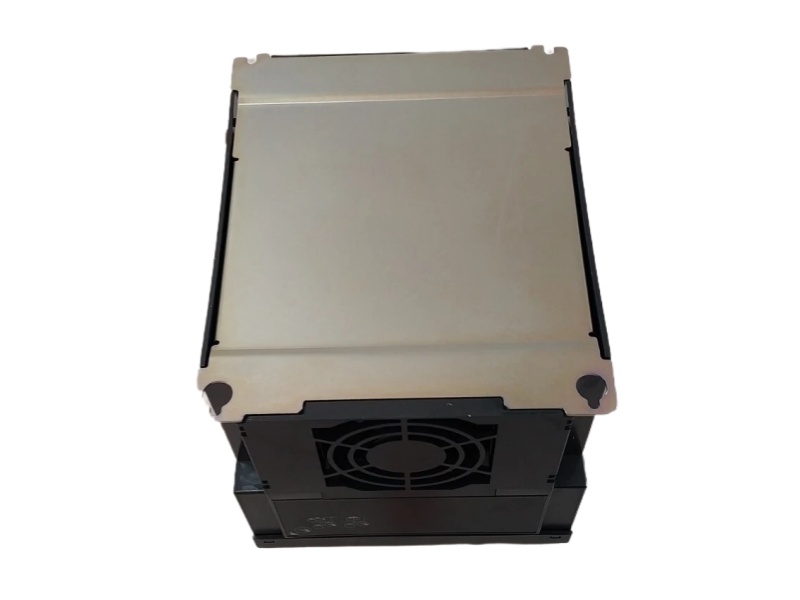

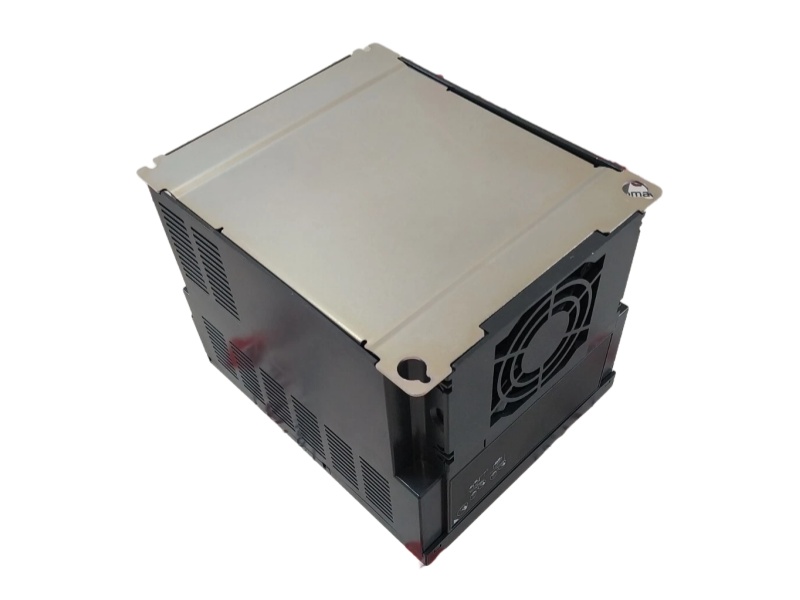

Weighing 3.2 kg, the physical design of the Drive ATV212HU75N4 Schneider is compact yet durable, suitable for the industrial environments it serves. The comprehensive programmability and monitoring capabilities of the SCHNEIDER ATV212HU75N4 make it a versatile and intelligent component for managing three-phase asynchronous motors in demanding applications, effectively balancing advanced control features with user-accessible operation and diagnostics.
