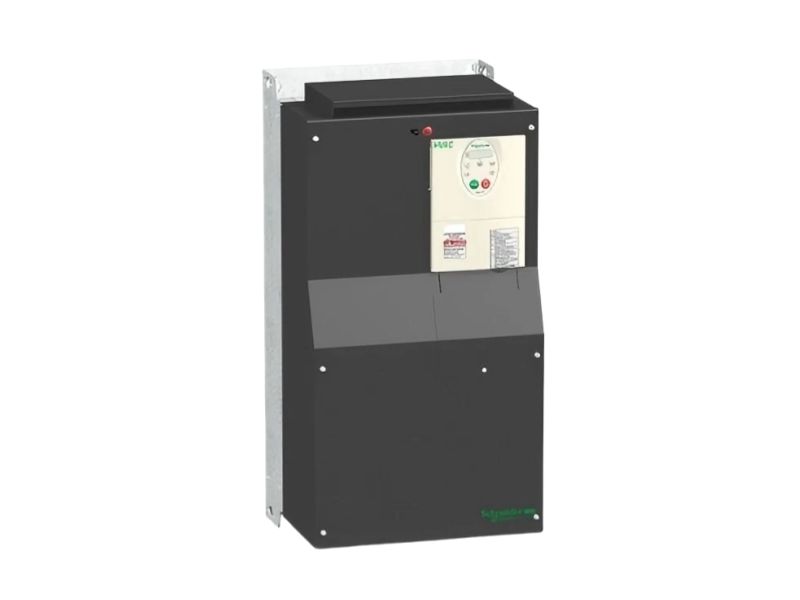

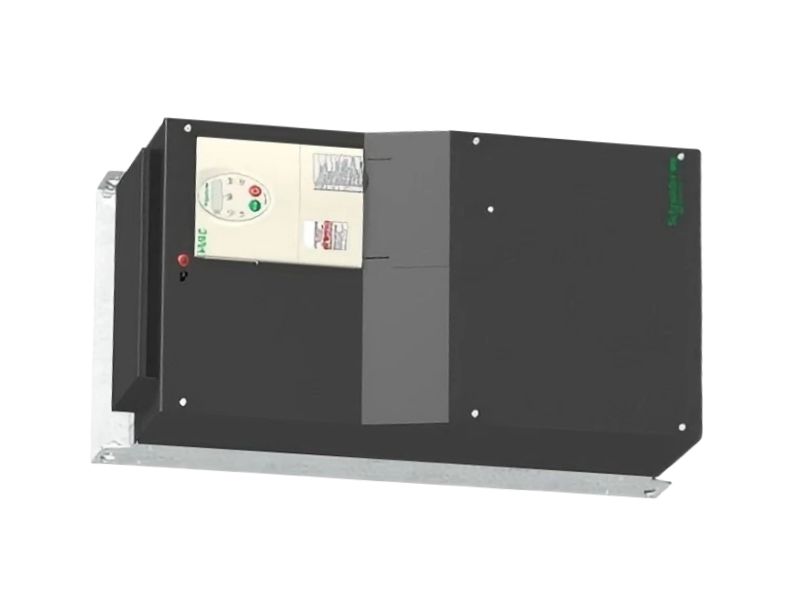

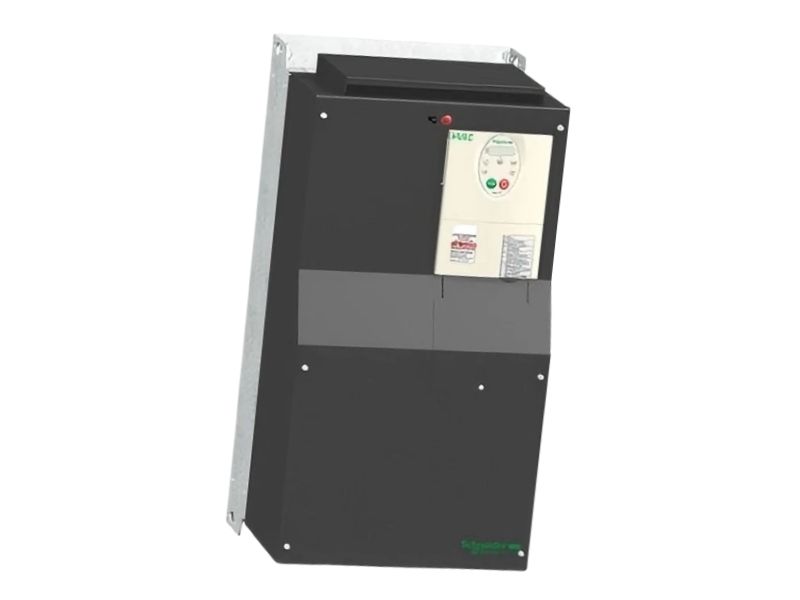

Schneider ATV212HD55N4 Variable Speed Drive

Inquiry now

ATV212HD55N4 Product datasheet

Model number:	ATV212HD55N4	Module Type：	Variable Speed Drive
Manufacture:	Schneider Electric	Condition：	Brand New
Range of Product:	Schneider Electric	Lead time：	In Stock
Weight:	1.9 kg	HS CODE：	8537101190
Dimension:	27.9x21.6x6.3cm	MOQ:	1
Product Origin:	France	System：	PLC
Discontinued on:	active	Communication Service:	Ethernet router

ATV212HD55N4 Functional Description

The ATV212HD55N4 Variable Speed Drive is a robust variable speed drive designed for HVAC applications, offering precise control for three-phase asynchronous motors with a power rating of 55 kW (75 HP). It operates at a voltage range of 380–480 V AC and features an IP21 protection rating along with a built-in EMC filter, ensuring reliable performance in demanding building environments such as air handling units, pumps, and compressors.

Focused on energy efficiency, the Motor Drives ATV212HD55N4 Schneider reduces energy consumption by up to 70% compared to conventional control systems. Its innovative design minimizes cable temperature rise and eliminates the need for additional harmonic mitigation components like line chokes. This ATV212HD55N4 Schneider Electric is engineered for vertical mounting within control panels and complies with international standards including IEC/EN 61800-3 and UL/CSA certifications.

Equipped with integrated communication protocols such as Modbus, BACnet, and METASYS N2, the 3-phase asynchronous motors ATV212HD55N4 seamlessly integrates into building management systems. Its eco-energy approach and advanced motor control capabilities make it ideal for heating, ventilation, air conditioning, and pumping applications in commercial and tertiary sector buildings.

Weighing 55.4 kg and measuring 320 x 630 x 290 mm, the ATV212HD55N4 AC Drives Schneider combines compact design with high functionality. It supports optional motor chokes for extended cable lengths and reduced electromagnetic interference, providing a flexible and disturbance-resistant solution for modern energy-efficient buildings.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

SCHNEIDER	MPCYT90NAN00N	SCHNEIDER	170XTS02100	SCHNEIDER	170AAO92100
SCHNEIDER	ME4U07AAA	SCHNEIDER	170XTS00100	SCHNEIDER	170AAI14000
SCHNEIDER	LXM15MD28N4	SCHNEIDER	170PNT11020	SCHNEIDER	140XTS00200
SCHNEIDER	BCH2MM0813CA6C	SCHNEIDER	170MCI02120	SCHNEIDER	140XCP51000
SCHNEIDER	ATV61HD37N4	SCHNEIDER	170MCI00702	SCHNEIDER	140XCP50000
SCHNEIDER	AS-S908-110	SCHNEIDER	170MCI00100	SCHNEIDER	140XCA71706
SCHNEIDER	AS-P890-000	SCHNEIDER	170M6467 3AUA0000062487	SCHNEIDER	140XBP01600
SCHNEIDER	990XCP98000	SCHNEIDER	170INT11003	SCHNEIDER	140XBP01000
SCHNEIDER	171CCS78000	SCHNEIDER	170ADO35000	SCHNEIDER	140XBP00600
SCHNEIDER	171CCC76010	SCHNEIDER	170ADI35000	SCHNEIDER	140XBE10000

Altivar 212 Variable Speed Drive

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 55kW / 75hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 55.4kg and its dimensions are, 320mm wide, 630mm high, 290mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is labeled and complies with environmental protection directives such as RoHS, WEEE, etc.
