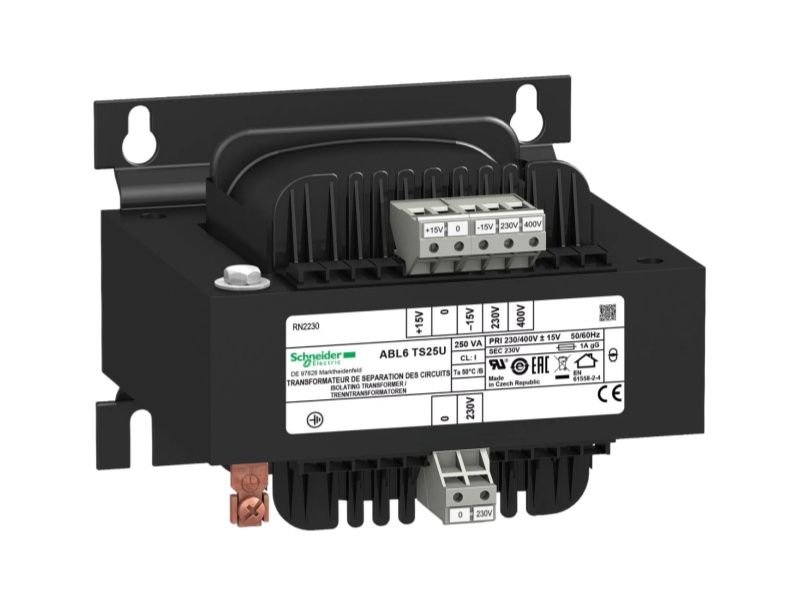

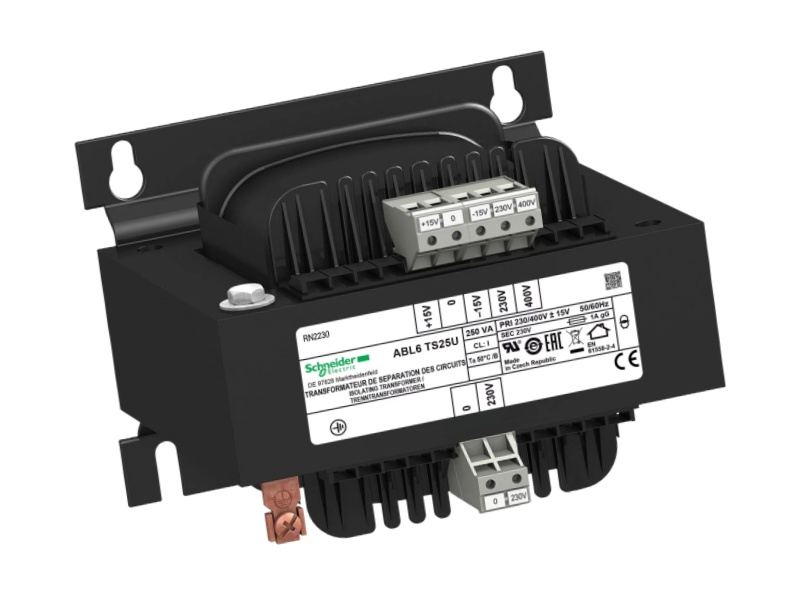

The Voltage Transformers ABL6TS25U Schneider is a safety and isolation transformer from the Phaseo Optimum range, designed to provide a reliable and isolated 230V AC output with a rated power of 250VA. This unit accepts a versatile single-phase input, accommodating either 230V AC (N-L1) or 400V AC phase-to-phase (L1-L2), making it adaptable for various installation environments.

The design of the ABL6TS25U Schneider Safety Insulated Transformer prioritizes safety and efficiency, featuring a high efficiency rate of 90% and low no-load losses of just 12.5W, which contributes to energy savings and reduced operational costs.

Constructed with Class B electrical insulation, the transformer ensures robust performance and safety. It offers comprehensive external protection against overloads, overvoltages, and short-circuits, requiring these protective devices to be installed in the external circuit. The device is built to operate reliably in ambient temperatures from -20°C to 50°C and is protected to IP20, ensuring protection against solid objects while being suitable for panel mounting in industrial settings.

The ABL6TS25U Transformer Schneider is designed for easy installation, featuring screw-type terminals that accommodate wire sizes up to 4 mm² for both input and output connections. It can be mounted in either a vertical or horizontal position on a panel using four screws, providing flexibility during setup. With key certifications including CE and UR, the ABL6TS25U Voltage Transformers Schneider meets stringent international standards for safety and quality, ensuring dependable performance in a wide range of applications.

This model is RoHS compliant and offers a dielectric strength of 4000V between its primary and secondary windings, guaranteeing excellent isolation and operational integrity. The Schneider Electric  ABL6TS25U is an ideal choice for applications requiring a stable and safely isolated power source, delivering consistent performance and protection for sensitive electrical equipment.
